BK Precision 9140 Series - Page 35

Output Conguration 35

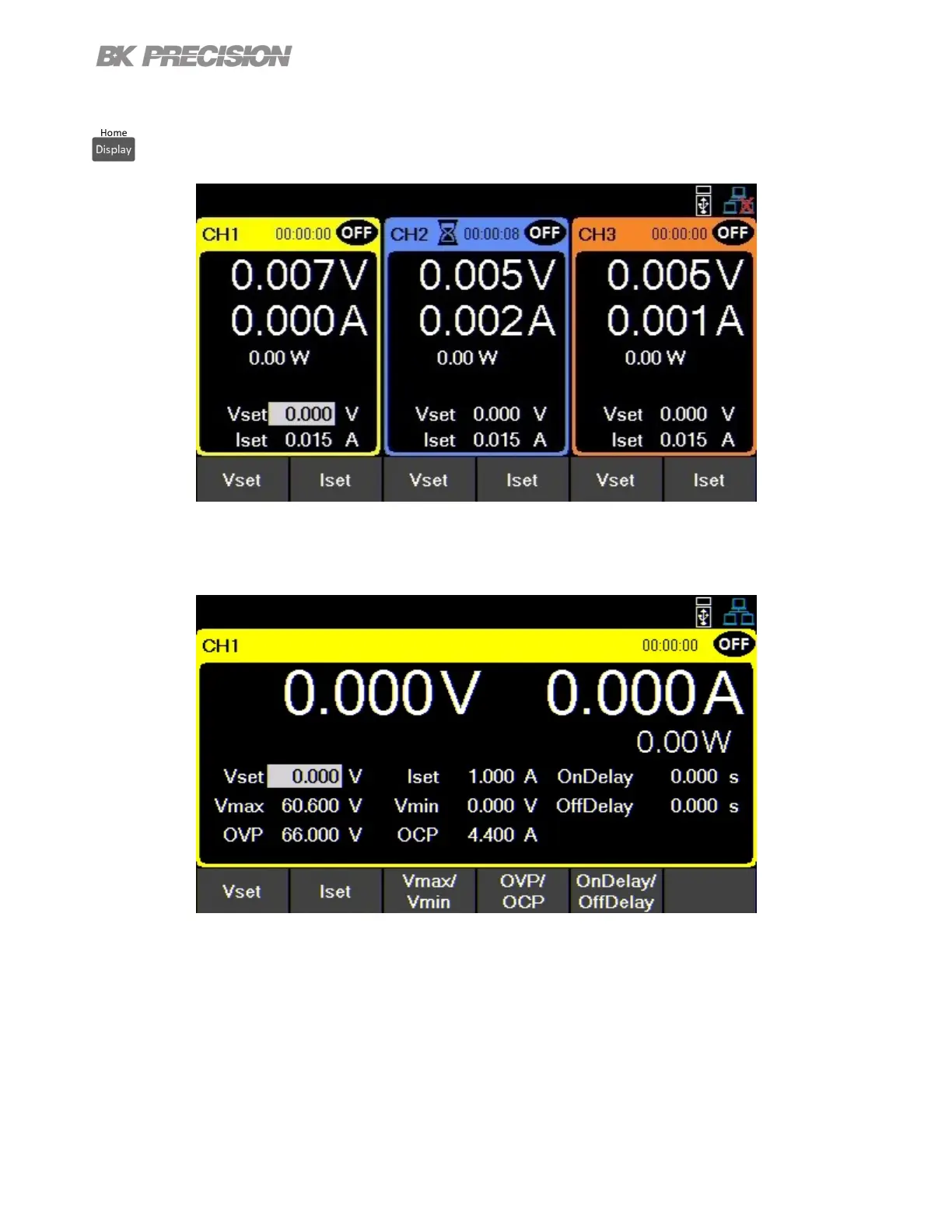

In Normal mode the main page will display the three outputs.
Toggles through CH1, CH2, CH3, and live output monitoring display.
Figure 4.3 Normal Mode Main Page
Single CH displays more information about the output, and allows conguration of more parameters.
Figure 4.4 Single Channel
