Output Sequencing

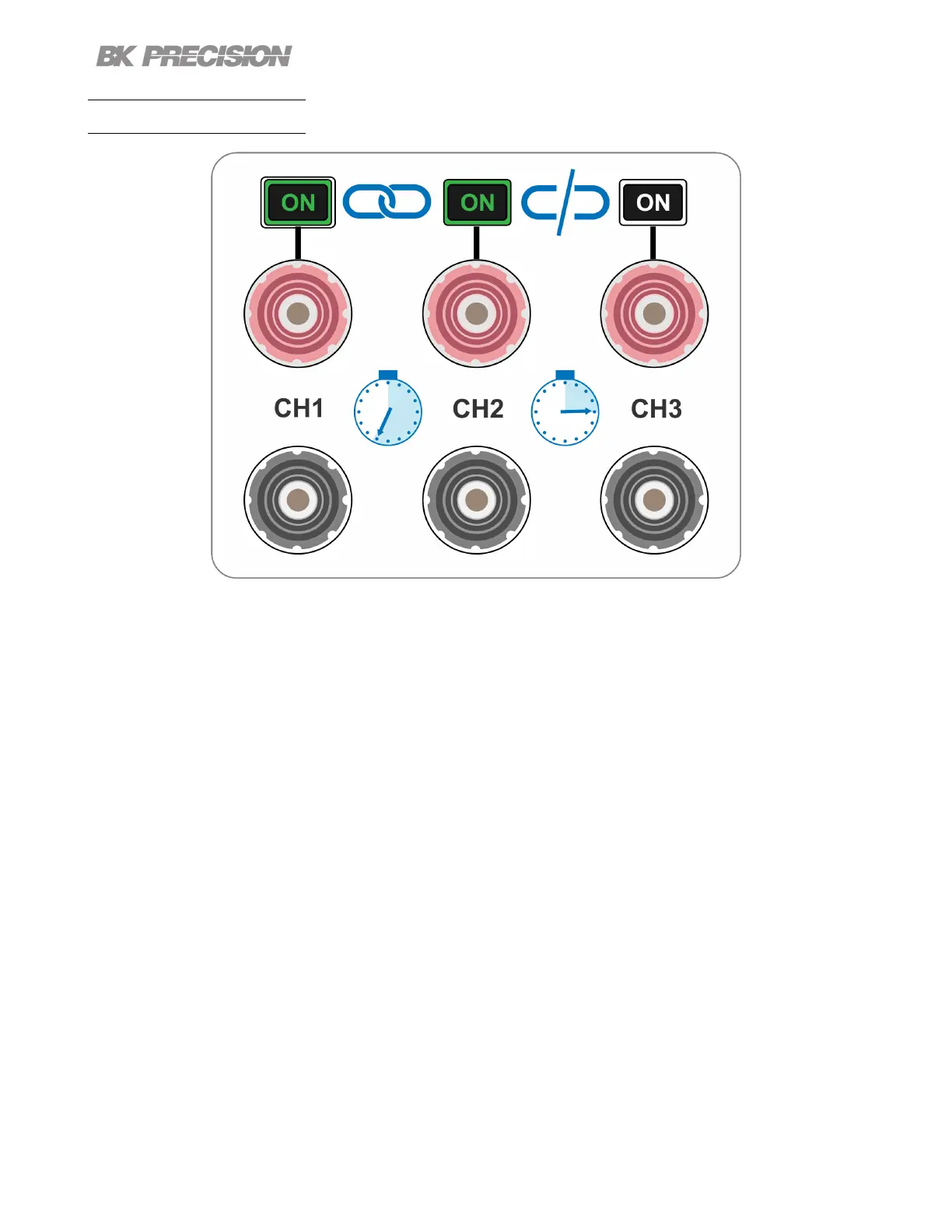

Figure 4.20 Sequencing
Combine CH Coupling with Output On and O Delay to toggle the outputs in a set sequence.
To congure a sequence:
1. Set voltage and current output of the participating channels.
Reference section Setting Voltage and Current.
2. Synchronize output state by coupling of all participating channels.
Reference section Coupling
3. Congure the turn on order of the outputs using the On and O Delay.
Reference section Output Timer
Begin the sequence by turning on any of the participating outputs.
