List Mode 48
List State:
Toggle list state On/O for the selected channel.
List Number:
Select a list program from the memory to run on the channel.
Use the numeric keypad or rotary knob to select list number.
Press to assign the list to a channel.
Pace:
Set the pace in which steps are executed.
a. Dwell: The next step outputs once the dwell time elapsed.
b. Trigger: After the dwell time elapsed, wait for a trigger beforeoutputting the next step.
Trigger Source
Set the trigger source.
a. Manual: Select to use a manual trigger. The Trigger softkey will be availableonce List State is on and
exit out of the menu to the main display. Press it to manually trigger the list program. If the step dwell
time has not elapsed, then Trigger will not have a white background.When dwell time elapses, Trigger background
color will turn white to indicate the trigger is ready.

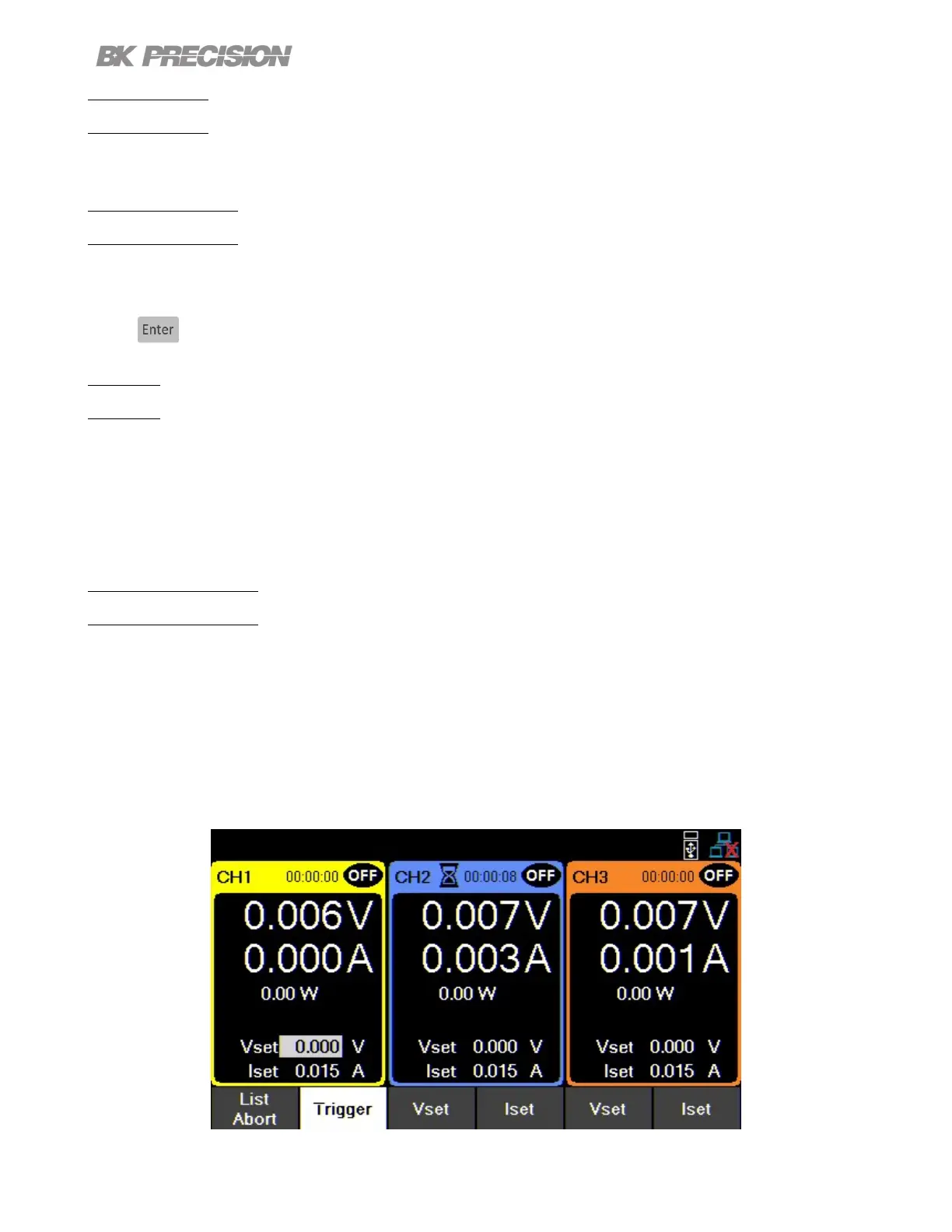

Figure 5.2 Waiting for Trigger
