List Mode 56

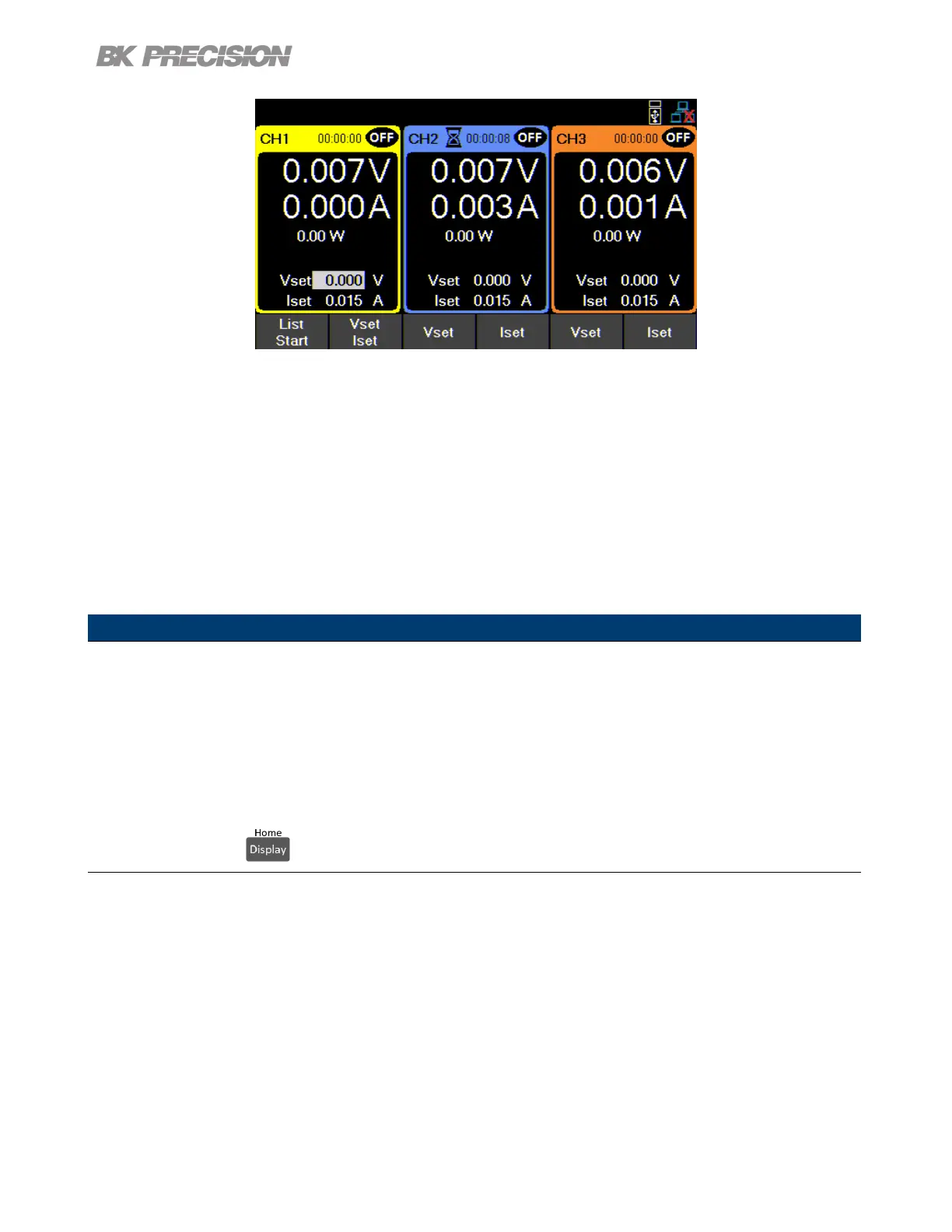

Figure 5.8 List State Enabled CH 1
– The interaction with the list will vary depending on the chosen Pace. See 5.1
5. Select List Abort to end the list before all steps elapse. If the all steps elapse the list will end and the
output will be set to chosen After List parameter.
– If After List is set to DC the output will output the Vset and Iset values.
– If After List is set to Last the output will output the values of the last step in the list.
Note:
While the list is running the user can adjust the current step output by setting Vset or Iset on the main
display. Doing so will immediately change the value of the ongoing output. However, the set value will
not be saved to the list. Once the dwell time of the step has elapsed the list will continue and output
the next step.
If Trigger source is set to manual, Vset/Iset will not be available. The rotary knob and numeric keypad
can be used to adjust the selected value. To adjust both Vset/Iset navigate to the single CH display of
the output using the key.Vset/Iset will be available as shown in gure 5.9.
