Operating Instructions ACTIVE 06/0768
68 Operating Instructions ACTIVE 06/07

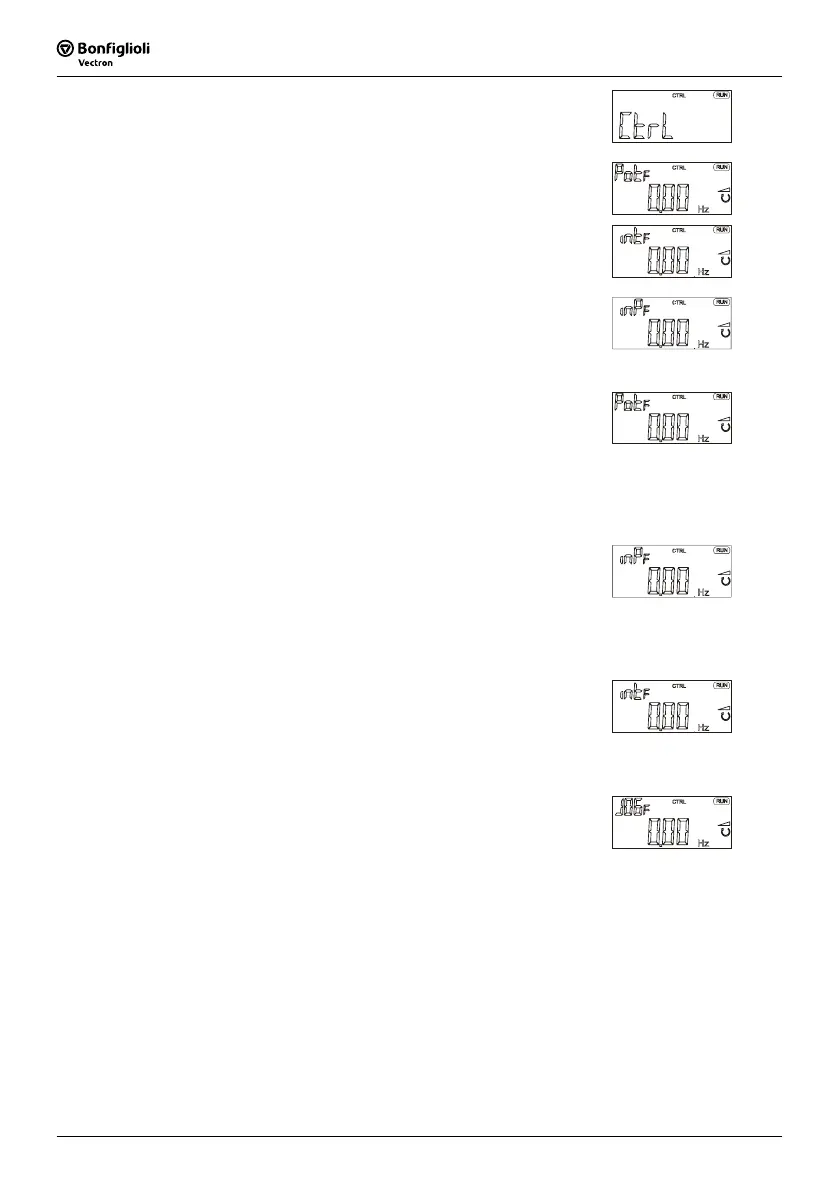

The CTRL menu branch can be accessed via the navigation
within the menu structure. The CtrL function contains sub-
functions which are displayed according to the operating point
of the frequency inverter.
Press the RUN key anywhere within the menu structure to
access the motor potentiometer function Pot
F. for clockwise
operation or Potr for anti-clockwise operation directly.
If the drive is running already, the display reads int
F (foward,
clockwise operation) / intr (reverse, anti-clockwise operation)
for the function internal reference value or inP
F (forward,
clockwise operation) / inPr (reverse, anti-clockwise operation)
"Motorpoti (KP)".
The function Motorpoti (KP) enables a link to other reference
value sources in the frequency reference value channel. The
function is described in Chapter “Motorpoti (KP)”.
Motor potentiometer function Pot
Use the arrow keys to adjust the output frequency of the fre-
quency inverter from the
minimum frequency 418 to the
maximum frequency 419. The acceleration corresponds to the
factory settings (2 Hz/s) for parameter
Ramp Keypad-
Motorpoti
473. The parameters Acceleration (Clockwise) 420
and
Deceleration (Clockwise) 421 are considered in the case
of low acceleration values.
Function Motorpoti (KP) inP
Use the arrow keys to adjust the output frequency of the fre-
quency inverter from the
Minimum Frequency 418 to the
Maximum Frequency 419. The adjusted frequency value by
means of the control unit can be connected with further refer-
ence values via
Reference Frequency Source 475. (Refer to
chapter “Frequency Reference Channel” and "Motorpoti (KP)".)
Internal reference value int
The drive is in operation, i.e. output signals are present at the
frequency inverter and the current actual value is displayed.
Press an arrow key to switch to the motor potentiometer func-
tion Pot. The current frequency value is taken over in the mo-
tor potentiometer function Pot.
JOG frequency JOG
This function is useful for manual setup and positioning of a
machine. The frequency of the output signal is set to the en-
tered value if the FUN key is pressed.
• Press FUN key to switch from the internal reference value
int or the motor potentiometer function Pot to the pa-
rameter
JOG frequency 489.
• Keep the FUN key pressed and press the arrow keys to
adjust the required frequency.
• (The frequency value last adjusted is saved as the
JOG
frequency
489
.)
• Release the FUN key to stop the drive.
• (The display returns to the previous function Pot or int or
to inP if function "Motorpoti (KP)" is active.)
