9.11.4 Connecting to AZ 1010/NZ 1008

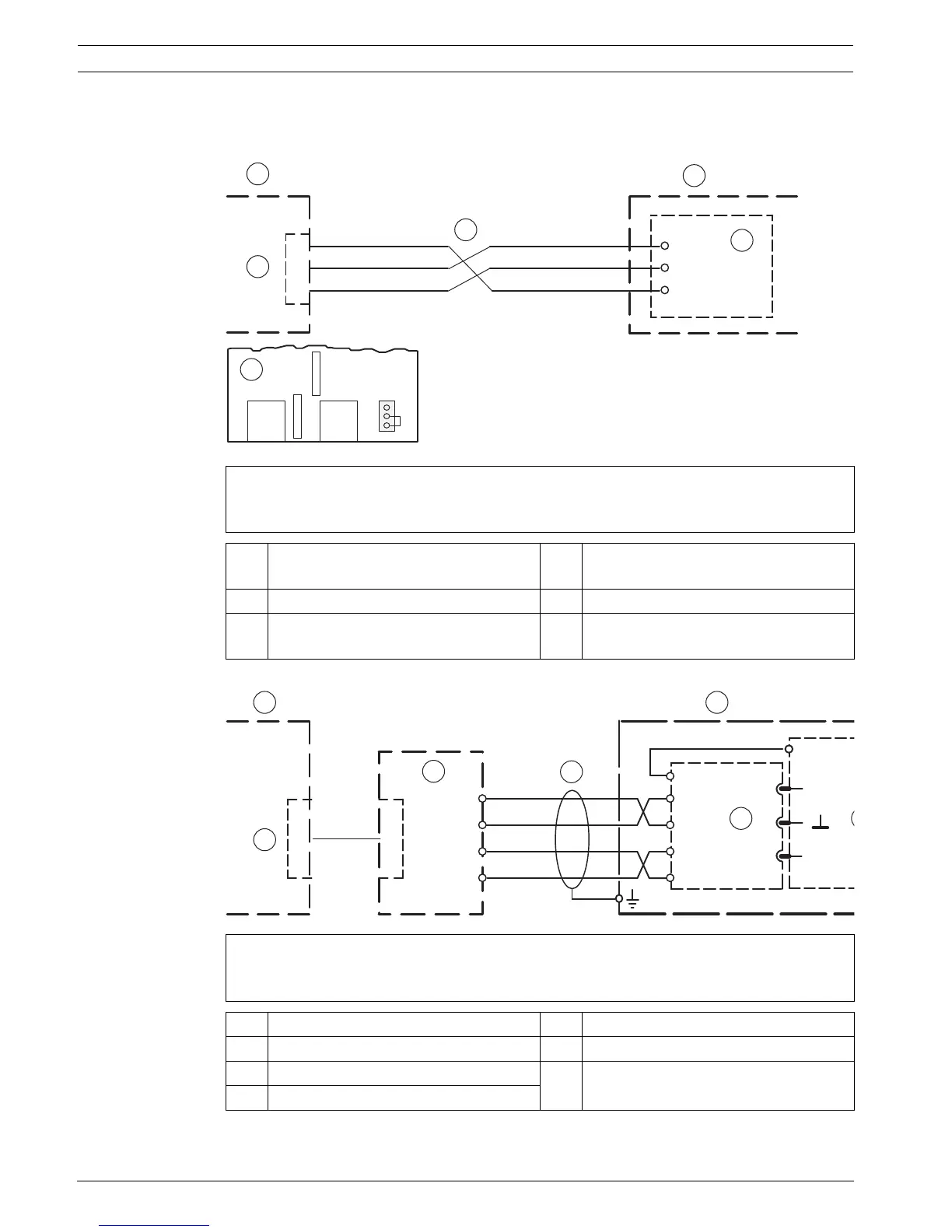

V.24 connection to AZ 1010/NZ 1008
20 mA connection to AZ 1010/NZ 1008
Bridge assignment (V) on the SMA
Plug-in bridge V1 in pos. 2/3
Level for V.24 interface
Connection of the AZ 1010/NZ 1008 must be
programmed on the alarm panel side.
1 Video system 4 AZ 1010/NZ 1008 (connection must be
programmed on the alarm panel side)
2COM x 5SMA
3 Max. 25 m 6 SMA (plug-in bridge V1 in pos. 2/3,
level for V.24 interface)
Bridge assignment (V) on the SMA
Plug-in bridge V1 in pos. 1/2
Level for V.24 interface
Connect shielding wire to AZ 1010/NZ 1008
only.
Cable J-Y (St) Y 2x2x0.6
1 Video system 4 Range max. 1000 m
2COM x 6GOM
3OVS 7LNA
5 AZ 1010/NZ 1008
SDI
0V
SDO
2
3
5
S 3A S 3B
B2
B1
V1
1
2
3
1
5
2
6
3
4
SDI
SDO
+12V
SDI
SDO
ST3 OPTO
9
5
6
1
SDI
SDI+
SDO+
SDO
+UV
1
5
2
6
3
4
