6.5.9 Configuring ATM/POS Inputs
Inputs and outputs menu > ATM/POS- Inputs tab
The ATM/POS-Bridge is used to connect cashpoint systems and ATMs. The video system can
be connected to a maximum of 8 ATM/POS-Bridges, each with 4 ATMs. The video is connected
via the IP network (LAN).

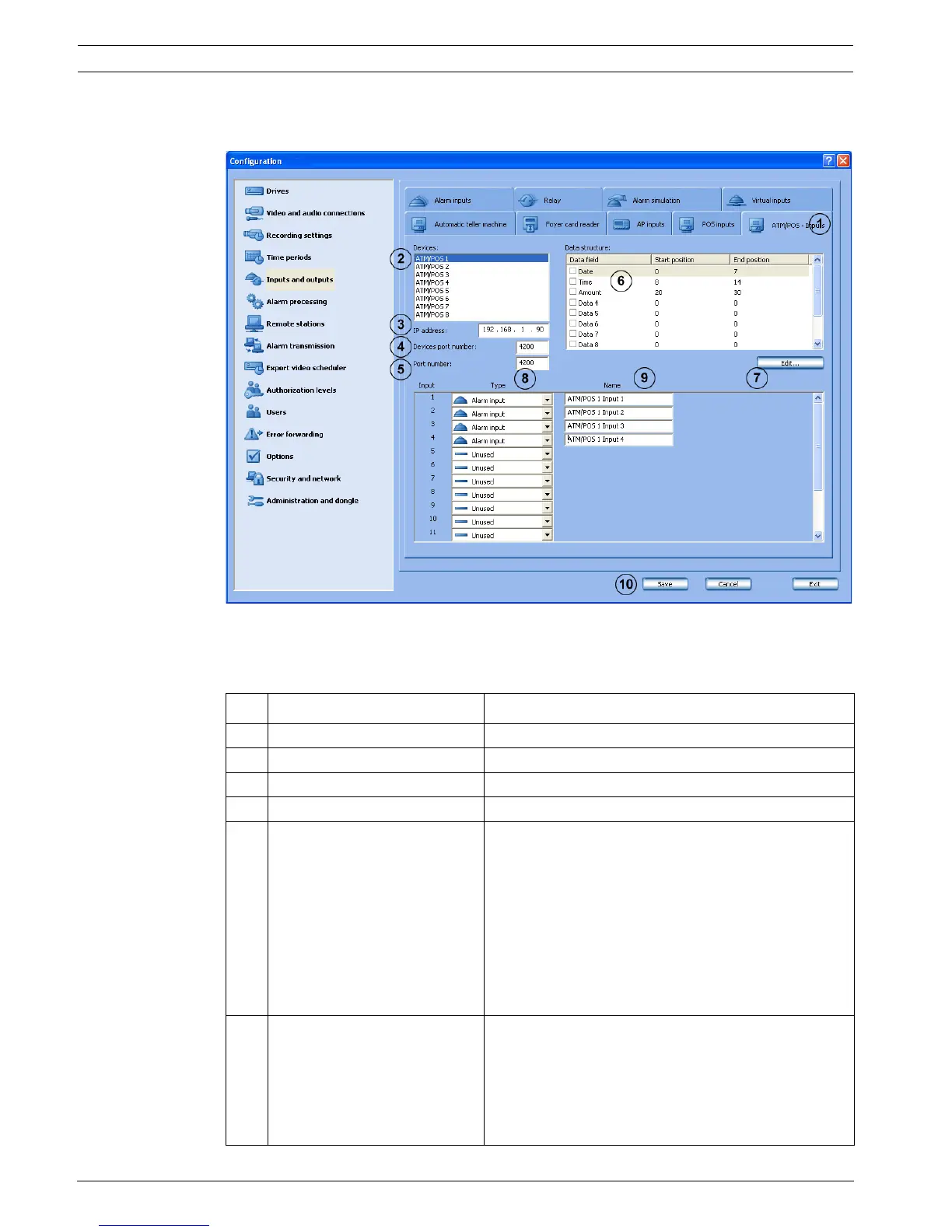

1 ATM/POS inputs Click the tab.
2 Devices: Select the device.
3 IP address: Enter the IP address of the ATM/POS-Bridge.
4 Devices port number: Enter the port number of the ATM/POS-Bridge.
5 Port number: Enter the DiBos port number.
6 Data structure: Shows the structure of the data stream that is sent to
DiBos by theATM/POS-Bridge. It is possible to have a
maximum of 10 data fields as distinguishing factors.
The size of the data stream is limited to 7 kilobytes.
Note:
Each of the individual data fields can be activated by
selecting the relevant check box. If none of the check
boxes are selected, the entire data stream is written
in the first data field.
7 Edit Click the button. A dialog box opens in which you can
configure the type of data field and the corresponding
start and end position in the data stream.
Note:
Mark in advance the rows to be processed under
Data structure.
To Next Page
