9.11.9 Connecting to UGM 2020

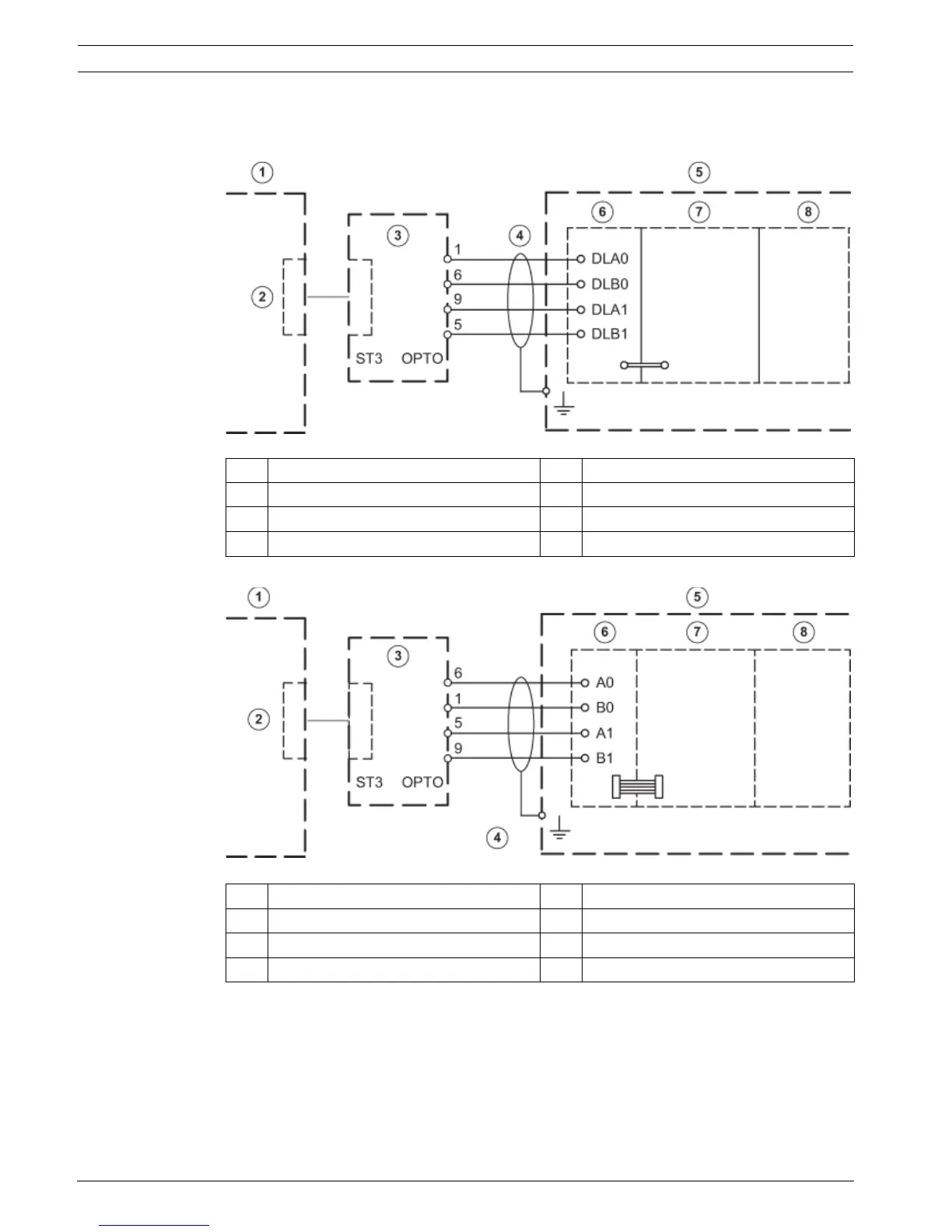

20 mA connection to UGM 2020 via TESP (for Telephony)
20 mA connection to UGM 2020 via UESS
1 Video system 5 UGM 2020
2 COM x 6 TESP (Br. 1-4 open)
3OVS 7SGK (SW issues: SGKUGM)
4 Range max. 1000 m 8 EPC/EPC2 (from EAPS-4, EAPS-5)
1 Video system 5 UGM 2020
2 COM x 6 UESS (power surge protection)
3OVS 7SGK (SW issues: SGKUGM)
4 Range max. 1000 m 8 EPC/EPC2 (from EAPS-4, EAPS-5)
