DiBos/DiBos Micro Device Connections | en 21
Bosch Sicherheitssysteme GmbH Installation Guide F.01U.033.308 | V7 | 2009.09
3 Device Connections
The video system is available as DiBos and as DiBos micro.
3.1 DiBos

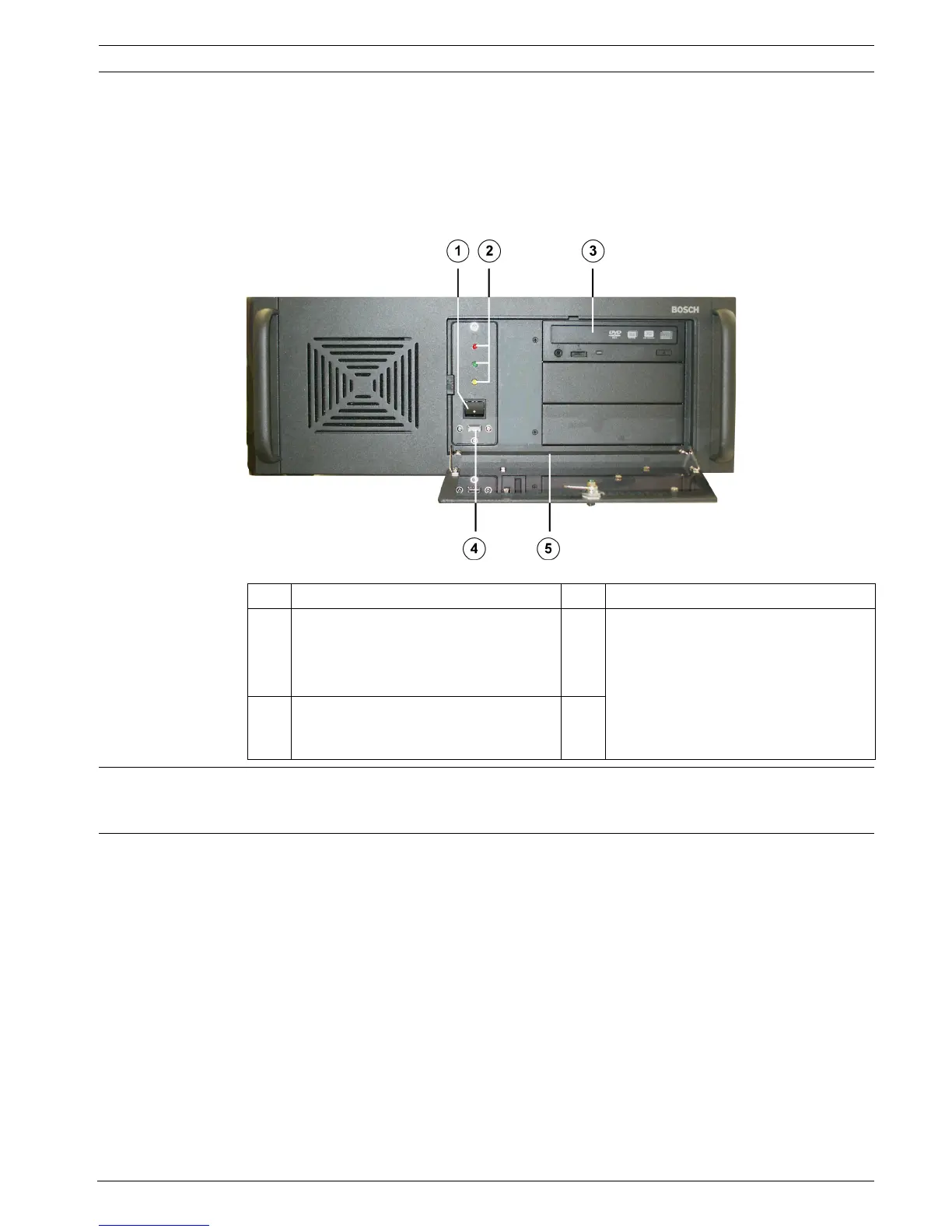

3.1.1 DiBos Front View
1On/Off switch 4USB 2.0
2 Status LEDs:
Red = hard disk access
Green = system is switched on
Yellow = unused
5 The following are located on the
device:
– Windows XP Embedded license
sticker
– DiBos rating plate
–DiBos license sticker and
activation key
3DVD-RW
CAUTION!
An air filter must not be installed in the device. Installing an air filter affects the cooling of the
device and can damage the device.
