6.2.1 General Camera Settings

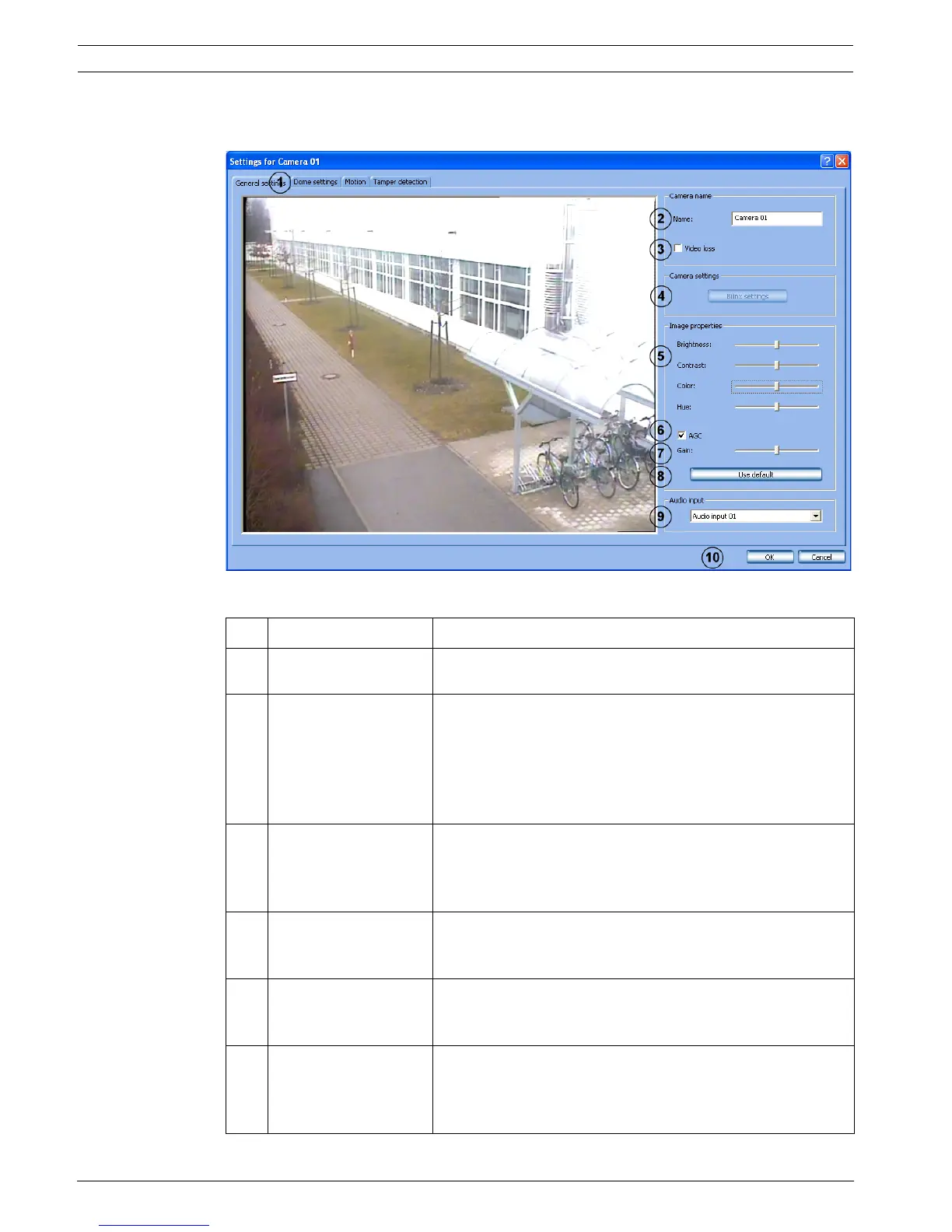

Video and audio connections menu > Camera section > Edit button
Make the settings for each camera as required.
1 General settings Click the tab.
2 Name: Enter the name of the camera. The name must not contain
any special characters or end with a space.
3 Video loss Activate this check box if a warning should be shown on
camera signal failure.
Note:
The malfunction relay is also activated if a relay output is
selected as a malfunction relay in the configuration (Inputs
and outputs menu, Relay tab).
4 Bilinx settings Click the button to access the Bilinx camera navigation menu.
The Bilinx camera menu is displayed in the image window.
Note:
Only selectable for Bilinx-capable cameras.
5 Image properties Set brightness, contrast, color and hue. You can see the
result of these settings in the camera image (Hue is only
active on NTSC cameras).
6AGC
(AGC = automatic gain
control)
Activate this check box if the camera signal on the grabber
should be amplified.
7 Gain: Manually correct the input level audio level at the grabber
using the slider.
Note:
Only possible when AGC is not activated.
To Next Page
