DiBos/DiBos Micro Connections | en 145
Bosch Sicherheitssysteme GmbH Installation Guide F.01U.033.308 | V7 | 2009.09

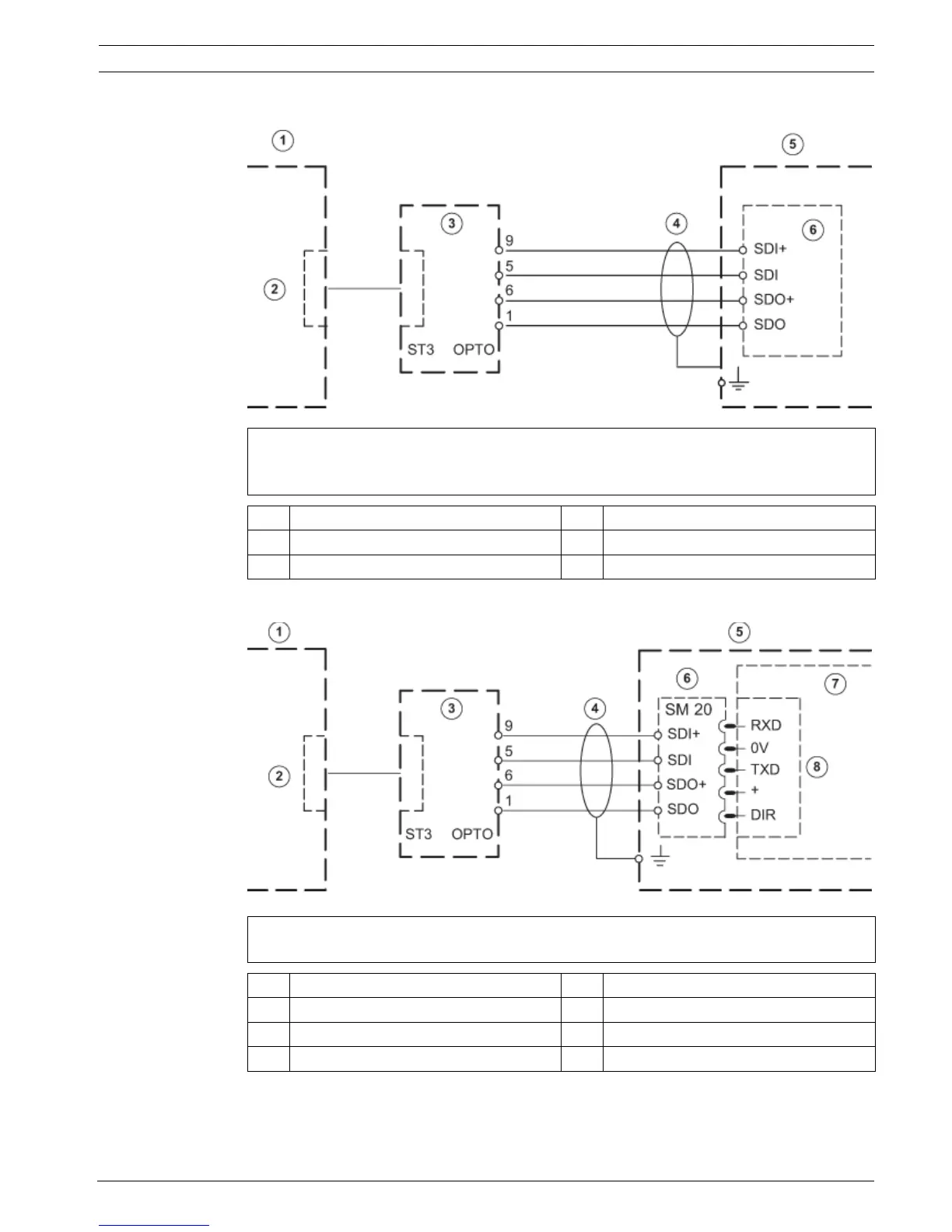

9.11.2 Connecting to NZ 500 (20 mA) Video System NZ 500
9.11.3 Connecting to BZ 500 (20 mA)
Connect shielding wire to NZ 500 only
Installation cable J-Y (St) Y 2x2x0.6
SU 500:
BR1 connected (1200 bit/
s)
1 Video system 4 Range max. 1000 m
2 COM x 5 NZ 500
3OVS 6SU 500
Connect shielding wire to NZ 500 only
Installation cable J-Y (St) Y 2x2x0.6
COM 2 and COM 3 only with interface
assembly ERSE 10
1 Video system 5 BZ 500 LSN
2COM x 6SM 20
3OVS 7ANNE 10
4 Range max. 1000 m 8 COM 1 to COM 3
