130 en | Connections DiBos/DiBos Micro
F.01U.033.308 | V7 | 2009.09 Installation Guide Bosch Sicherheitssysteme GmbH
9.6 Connecting an ATM (Serial)
A maximum of four customer-operated ATMs or three customer-operated ATMs and one
access control system can be connected to the video system via an interface processor.
The following ATM connection variants are possible:
Variant 1:
The customer-operated ATMs are not far from the video system. The video system and
interface processor, as well as the interface processor and the ATMs, can be connected
together in such a way that the distance between each of them is less than 15 m.
Possible solution:
Connection of each ATM is made directly at the interface processor and is ATM-specific. The
distance between the video system and the interface processor, as well as the distance
between the interface processor and the ATMs, is a maximum of 15 m.

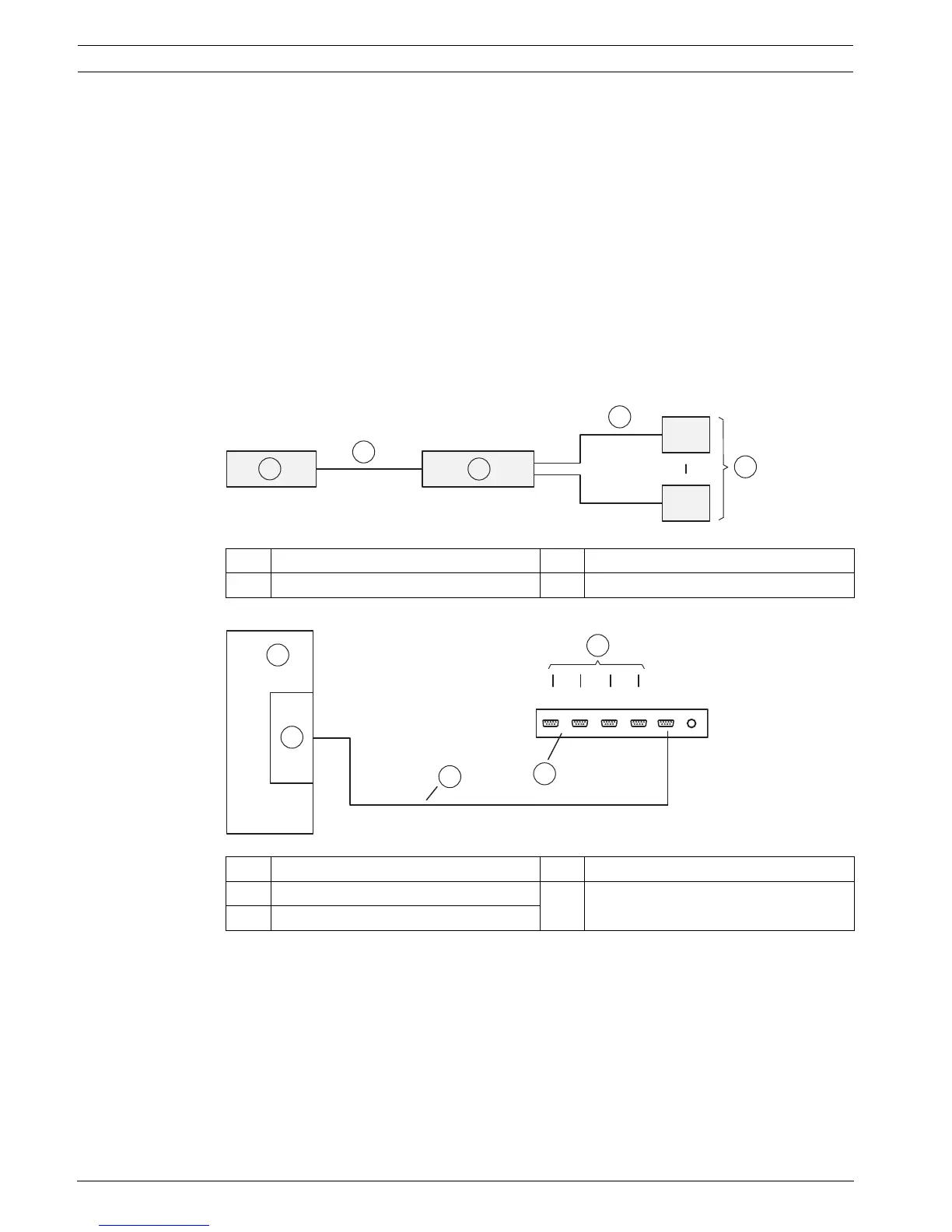

Connection principle:
Connection details:
1 Video system 3 Interface processor
2 Max. 15 m 4 ATM1 - ATM4
1 Video system 4 Interface processor
2 COM x 5 ATM1 - ATM4
3 Connection cable, 9-pin
1
2
3
2
4
E4E3 PCE2E1
5
3
4
1
2
