3.1.4 I/O Card for DiBos
The following can be set for the I/O card:
– the relay outputs (NO = normally open, NC = normally closed)
– the malfunction outputs (NO = normally open, NC = normally closed)

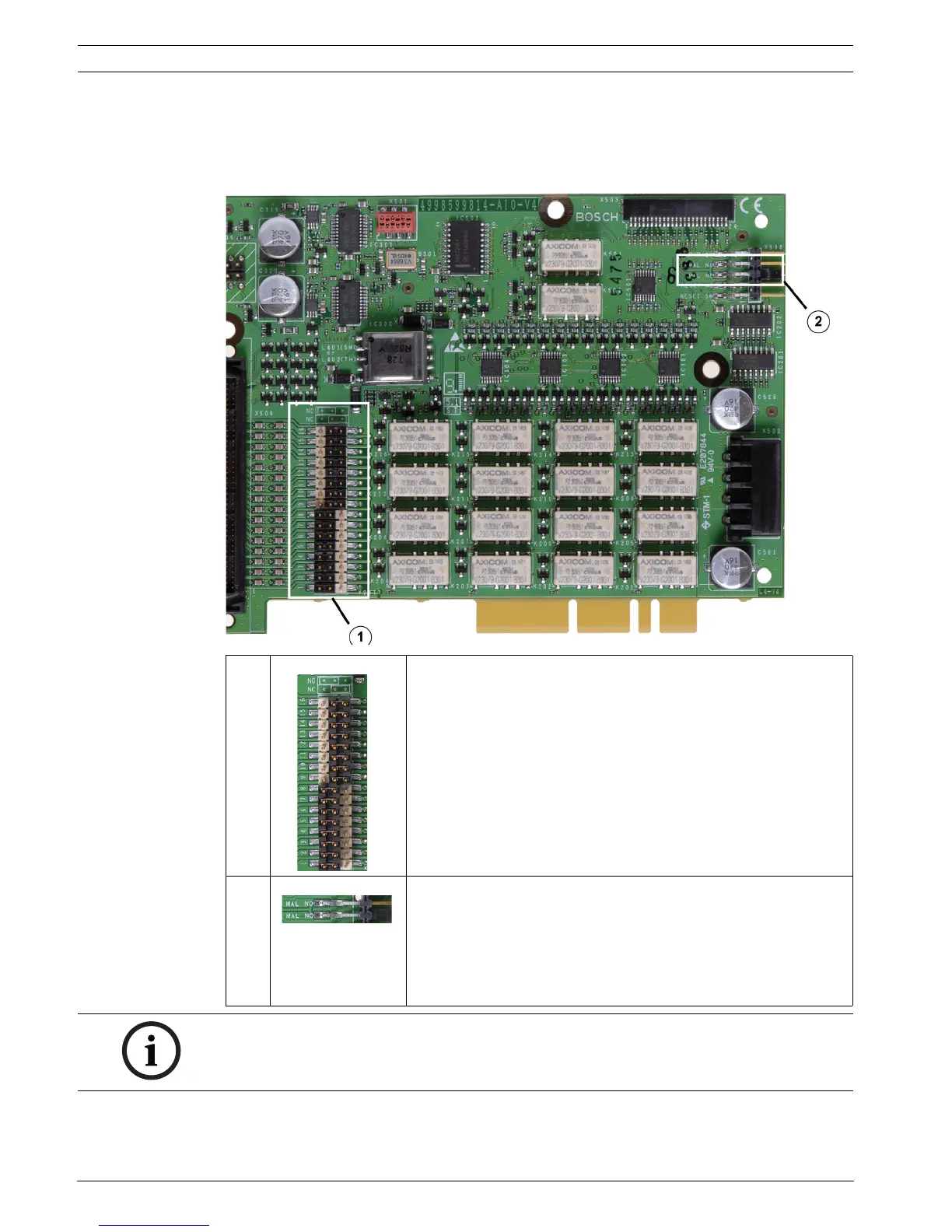

1 Relay outputs:
The setting is printed on the PCB.
Relay outputs 1–8: open (NO = normally open)
Relay outputs 9–16: closed (NC = normally closed)
2 Malfunction output:
The setting is printed on the PCB.
Bridge position up:
Open (MAL NO = malfunction normally open)
Bridge position down:
Closed (MAL NC = malfunction normally closed)
NOTICE!
The I/O card must be removed to change the bridge settings.
