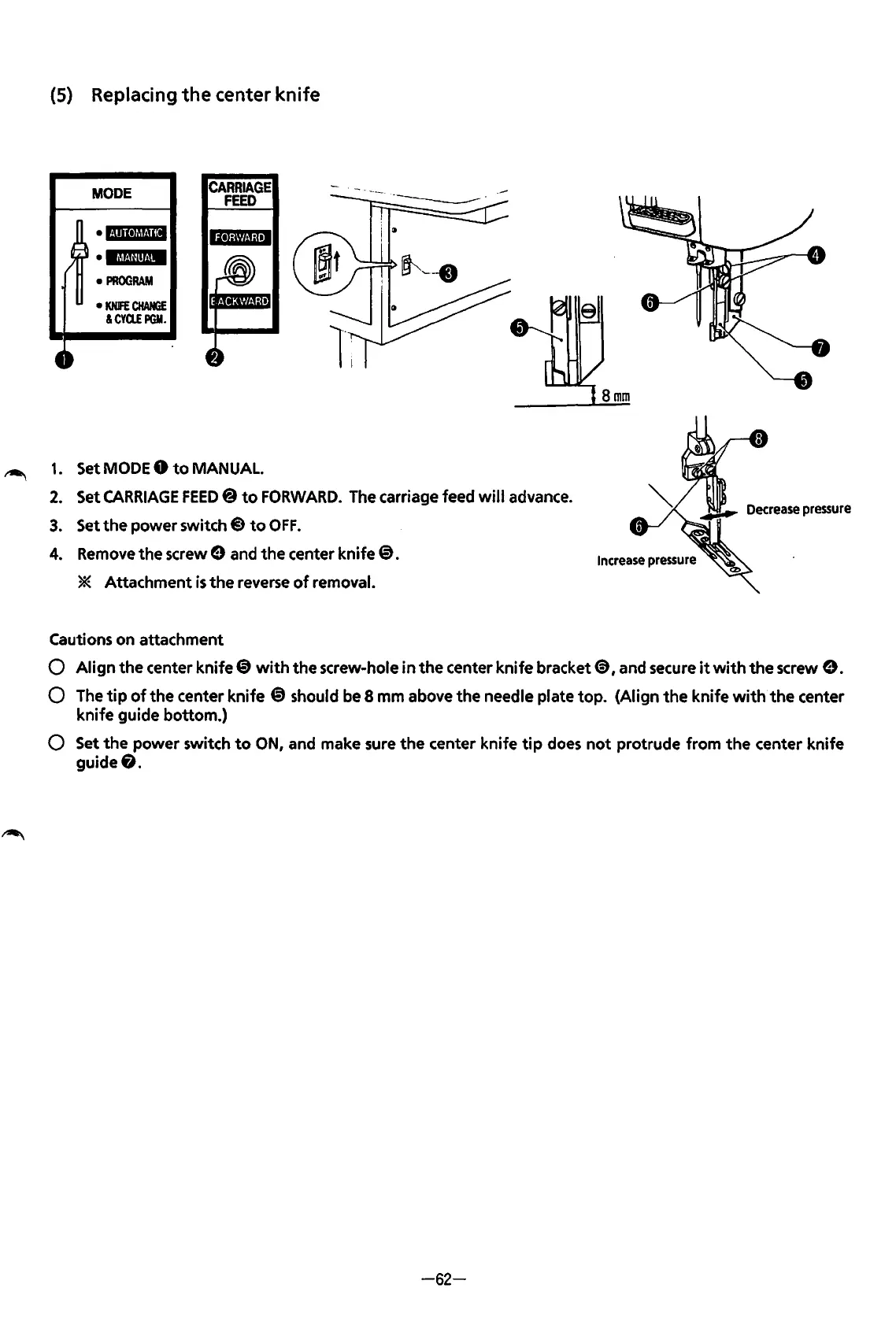

(5) Replacing the center knife
MODE
~ •tlllltiUIII
J • lt~!·!lll!·!·
• PROGRAM
• KNIFE CHANGE
&CYClEPGM.
~t
CARRIAGE
FEED
1. Set MODE 0 to MANUAL.
2. Set CARRIAGE FEED@ to FORWARD. The carriage feed will advance.
3. Set the power switch@) to OFF.
4. Remove the screw 8 and the center knife @).
* Attachment is the reverse of removal.
Cautions on attachment
Increase pressure
0 Align the center knife@) with the screw-hole in the center knife bracket(!), and secure it with the screw e.
0 The tip of the center knife @ should be 8 mm above the needle plate top. (Align the knife with the center
knife guide bottom.)
0 Set the power switch to ON, and make sure the center knife tip does not protrude from the center knife
guide&.
-62-
