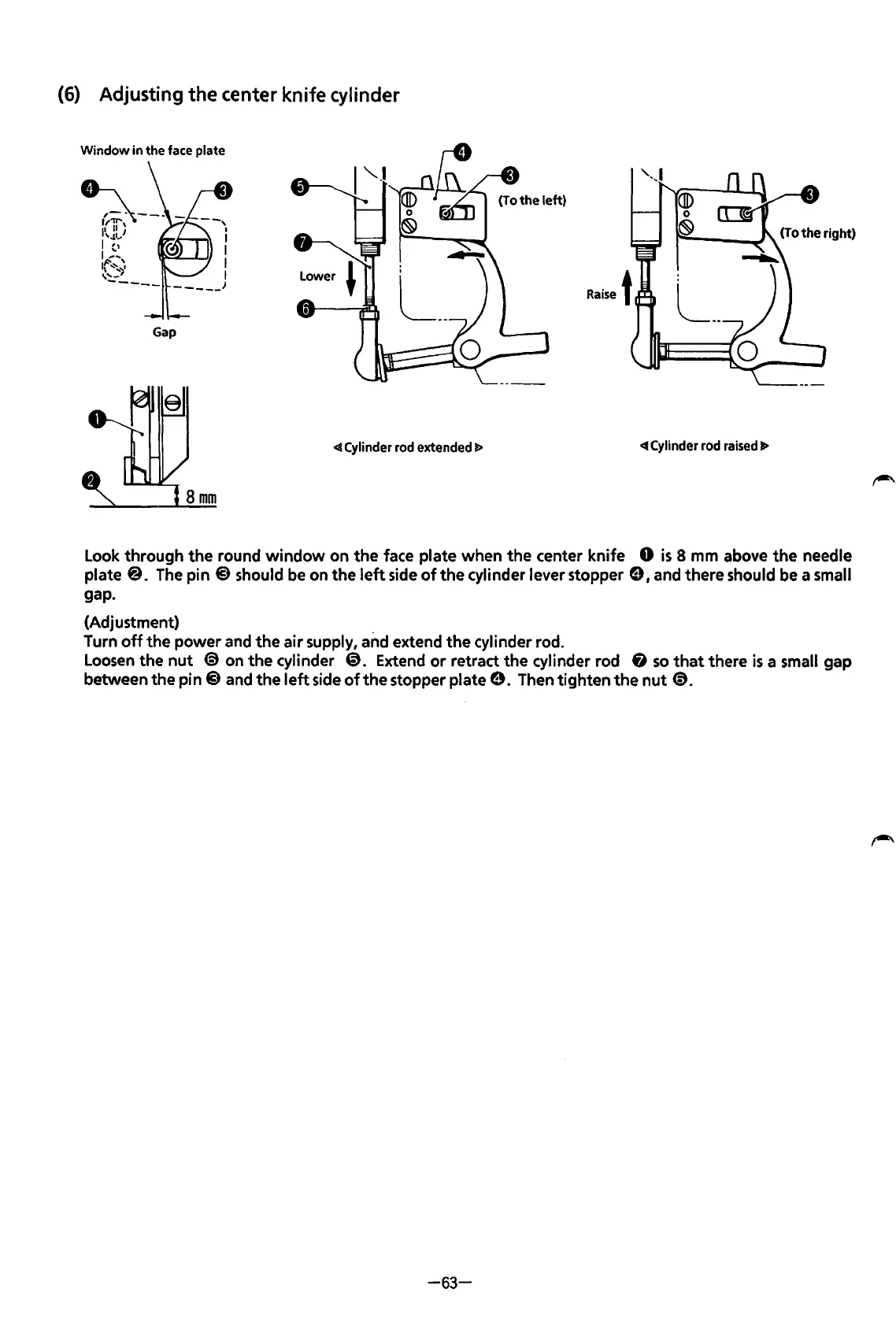

(6) Adjusting the center knife cylinder
Window in the face plate
Gap
<a Cylinder rod extended a>
<t Cylinder rod raised a>
Look through the round window on the face plate when the center knife 0 is 8 mm above the needle
plate
8. The pin @ should be on the left side of the cylinder lever stopper e, and there should be a small
gap.
(Adjustment)
Turn
off the power and the air supply, and extend the cylinder rod.
Loosen the nut {S} on the cylinder @. Extend or retract the cylinder rod & so that there is a small gap
between the
pin@ and the left side of the stopper plate 9. Then tighten the nut €}.
-63-
