Brother MFC-8480DN - B/W Laser - All-in-One User Manual

3-51
Confidential

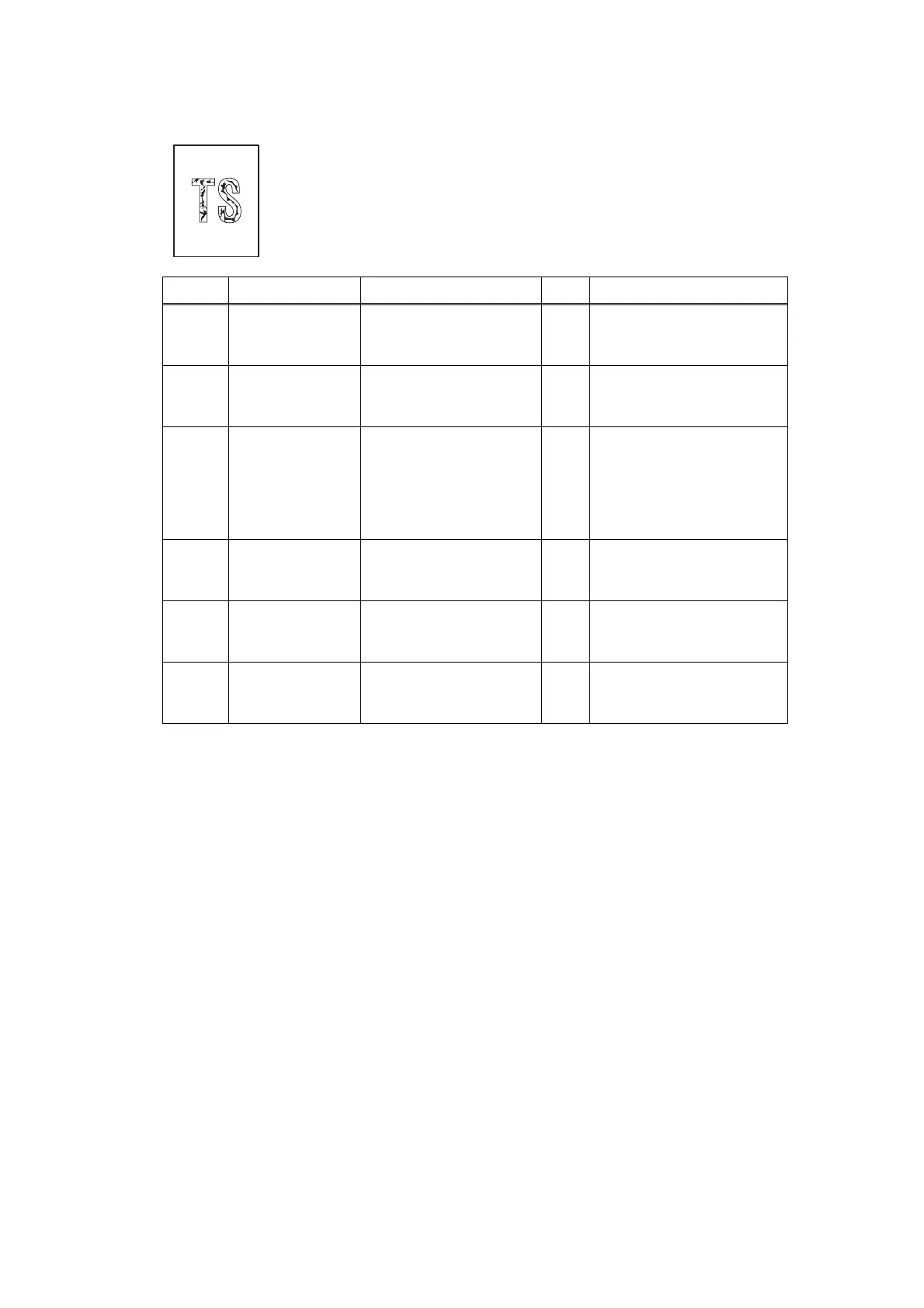

■ Poor fixing
<User Check>
- Replace the drum unit with a new one.
- Replace the toner cartridge with a new one.
Step Cause Check
Result Remedy
1
Low pressure of
pressure roller in
the fuser unit
Is the problem solved by
changing the position of
the anti-curl switch?
Yes
Change the position of the
anti-curl switch.
2
Fuser unit failure Is the problem solved
after replacing the fuser
unit?
Yes
Replace the fuser unit.
3
Toner sensor
failure
Is the "Toner life End"
message indicated on
the LCD after replacing
the current toner
cartridge with an empty
one?
No
Replace the toner sensor.
4
HVPS PCB
failure
Is the problem solved
after replacing the
HVPS PCB ASSY?
Yes
Replace the HVPS PCB
ASSY.
5
Main PCB failure Is the problem solved
after replacing the main
PCB ASSY?
Yes
Replace the main PCB
ASSY.
6
Low-voltage
power supply
PCB failure
Is the problem solved
after replacing the LVPS
PCB unit?
Yes
Replace the LVPS PCB
unit.

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
