5-102
Confidential
9.8.46 ADF Relay PCB ASSY
There are two kinds of the ADF unit by redesign of the product.
Refer to "9.8.47 Motor Frame ASSY".
(1) Remove the cup S M3x6SR Taptite screw, and remove the ADF FG harness.
(2) Disconnect the eight Connectors from the ADF relay PCB ASSY.
(3) Disconnect the Connector of the ADF motor harness from the ADF motor.

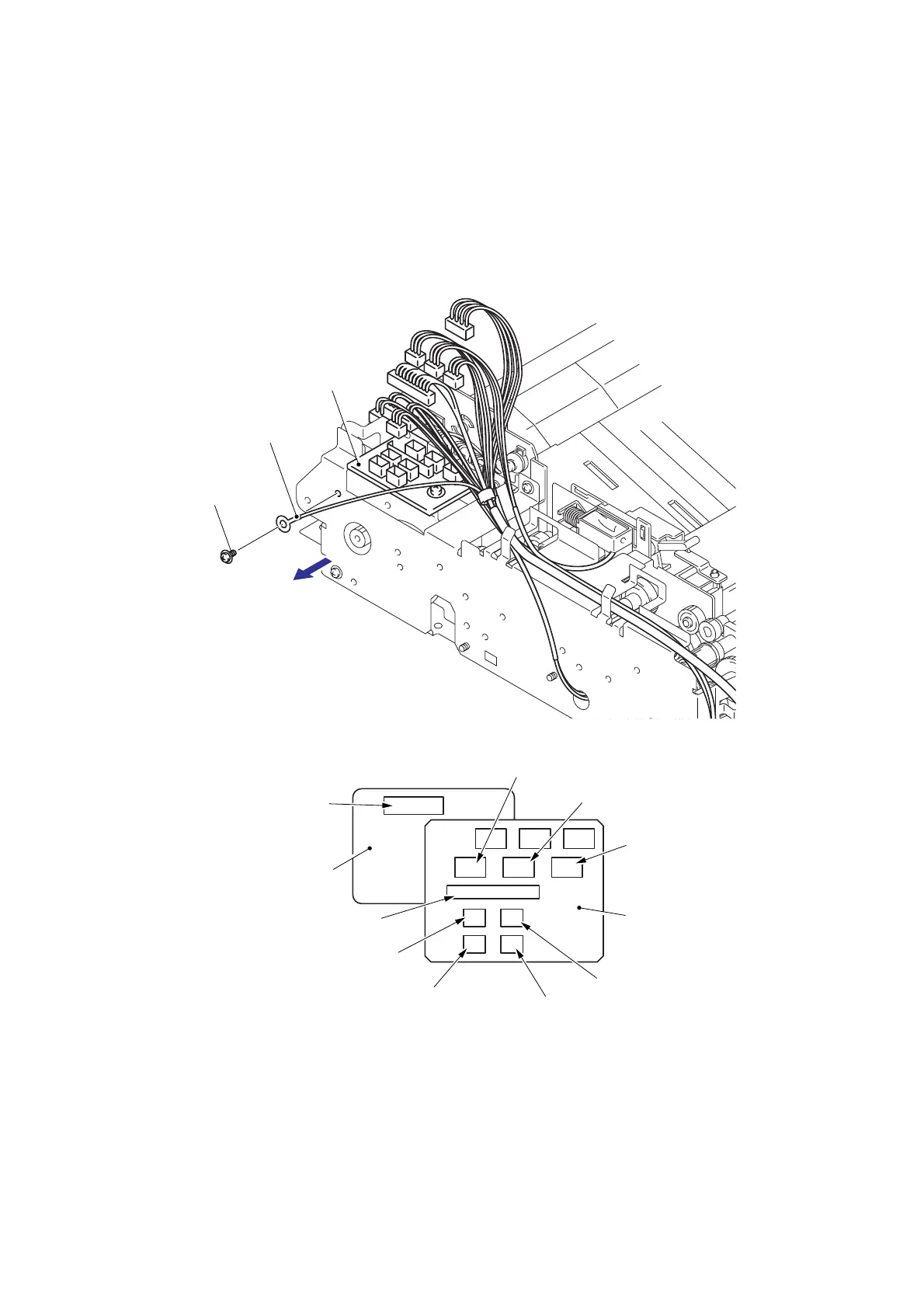

Fig. 5-108
Motor harness
ADF motor
ADF relay PCB harness
Exit solenoid harness
PF solenoid harness
ADF relay PCB ASSY
ADF relay PCB ASSY
ADF cover open sensor harness
FB cover sensor harness
Switch back sensor
Document rear sensor
Driver PCB harness
ADF FG harness
Taptite cup S M3x6SR
