Brother MFC-8480DN - B/W Laser - All-in-One User Manual

5-208
Confidential
9.38 Wireless LAN PCB (PCB T60H989 ASSY 04) (Wireless LAN model)
(1) Disconnect the connector of the Wireless LAN PCB harness from the Wireless LAN PCB
(PCB T60H989 ASSY 04).
(2) Remove the Wireless LAN PCB (PCB T60H989 ASSY 04) from the Frame R.

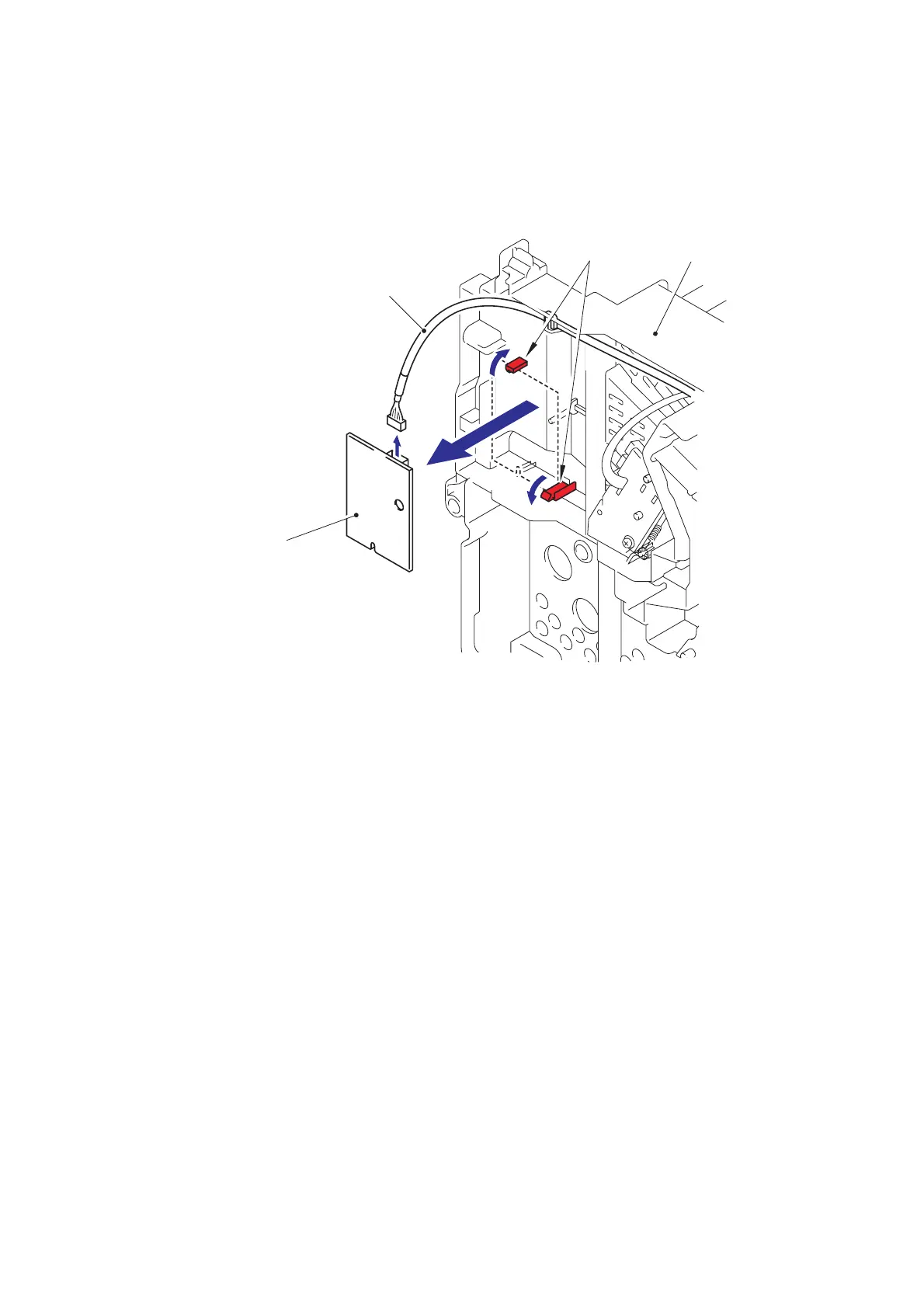

Fig. 5-257
Frame RHooks
Wireless LAN PCB harness
Wireless LAN PCB
(PCB T60H989 ASSY 04)

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
