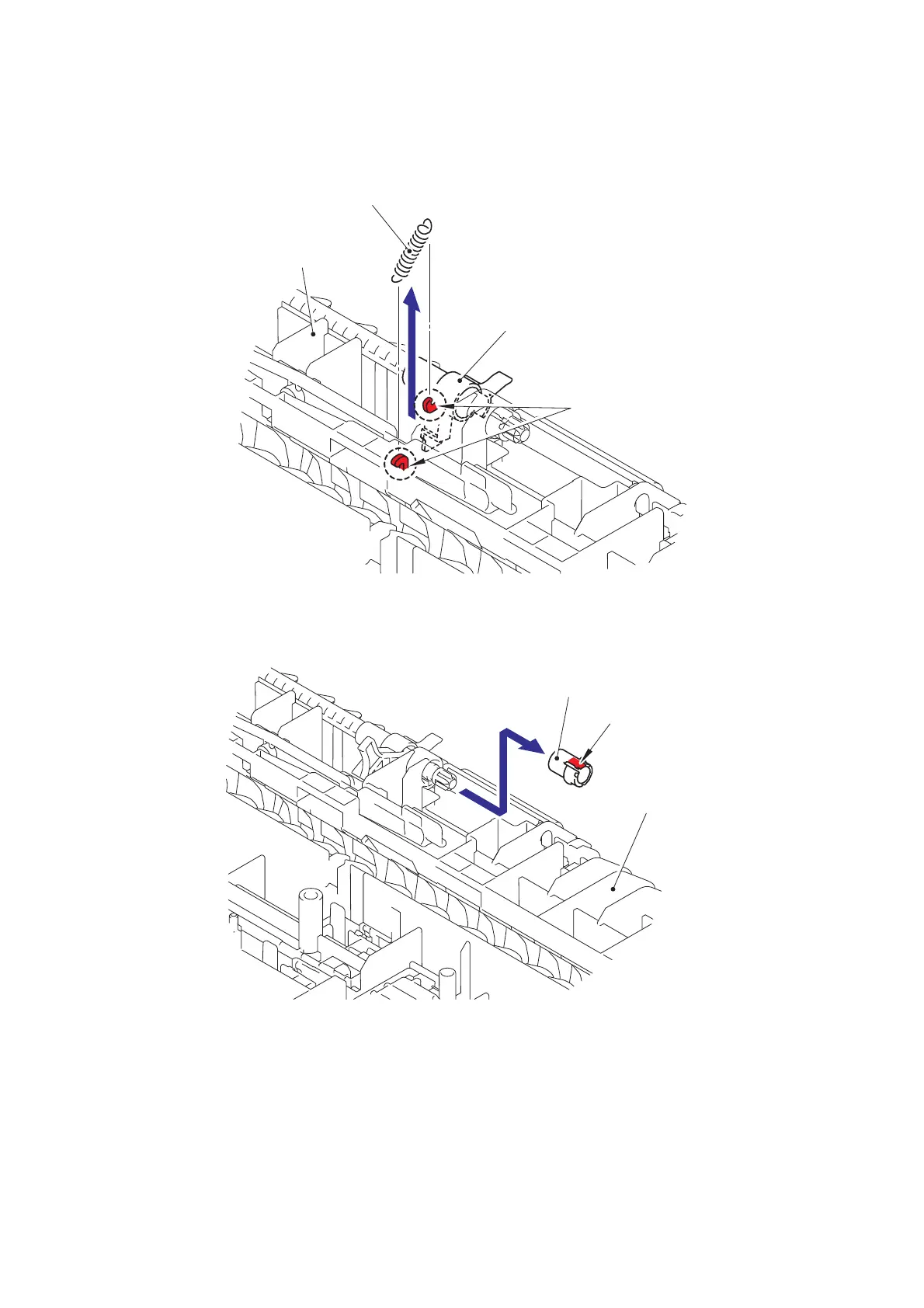

9.47 PE Actuator / Edge Actuator / Edge Actuator Spring
(1) Remove the Edge actuator spring.
Fig. 5-285
(2) Release the hook and remove the Separation R shaft bearing.
Fig. 5-286
Hooks
Edge actuator
Edge actuator spring
Paper feed frame
Hook
Paper feed frame
Separation R shaft bearing
