5-246
Confidential
10.15 LT Sensor PCB ASSY

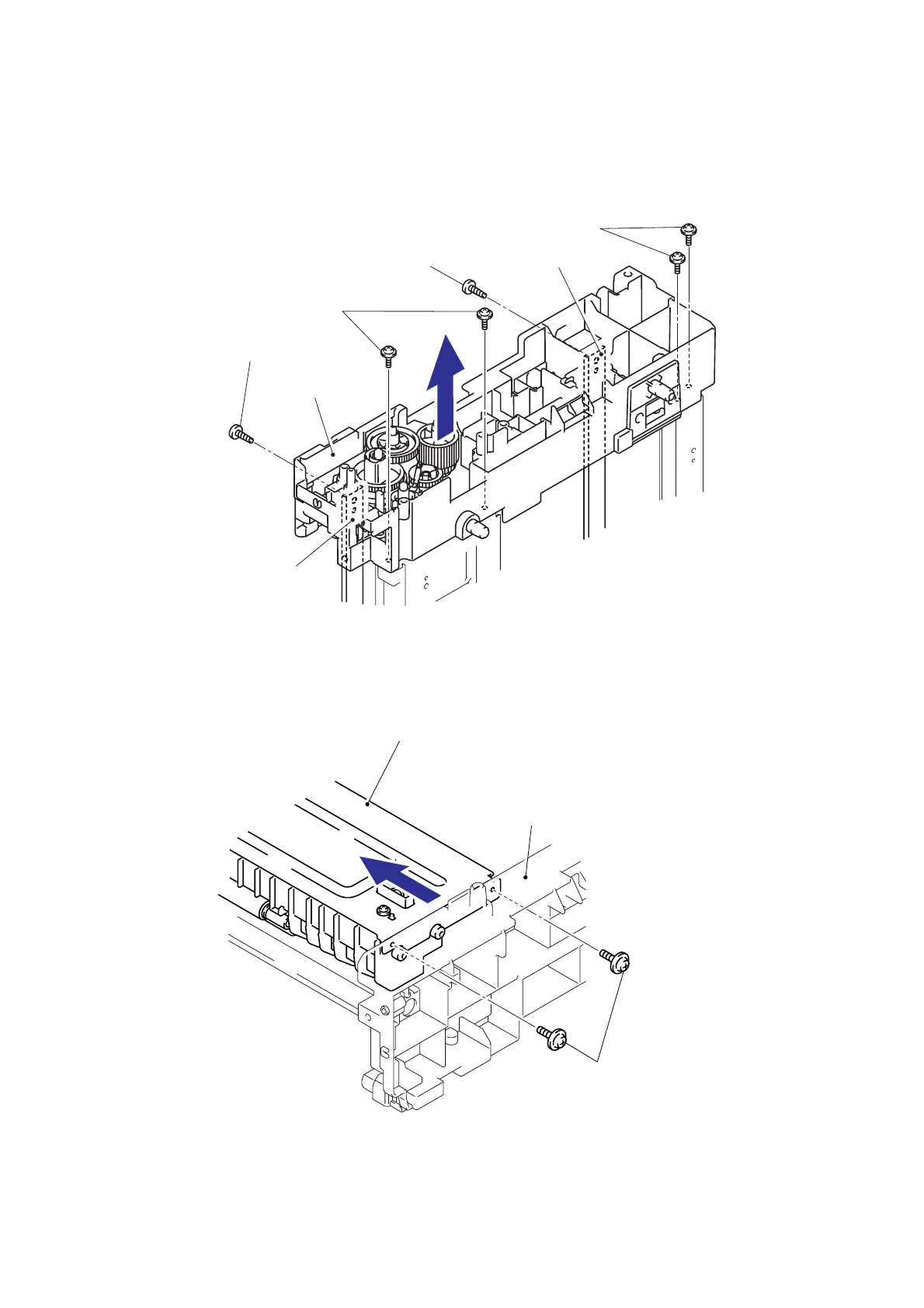

(1) Remove the two bind B M4x12 Taptite screws.
(2) Remove the four cup S M3x6 Taptite SR screws, and then remove the LT frame L.
Fig. 5-321
(3) Remove the two cup S M3x6 Taptite SR screws, and then remove the LT paper feed
frame.
Fig. 5-322
Taptite, cup S M3x6 SR
Taptite, cup S M3x6 SR
Under bar
Under bar
LT frame L
Taptite, bind B M4x12
Taptite, bind B M4x12
LT paper feed frame
LT frame R
Taptite, cup S M3x6 SR

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
