5-174
Confidential
9.18 Joint Cover ASSY
■ CCD model
9.18.1 Joint Cover ASSY
(1) Remove the four bind B M4x12 Taptite screws from the Joint cover ASSY.
(2) Release all Hooks of the Joint cover and lift up the front side of the Joint cover ASSY.
(3) Pull out the Joint cover ASSY’s Bosses to the front side.

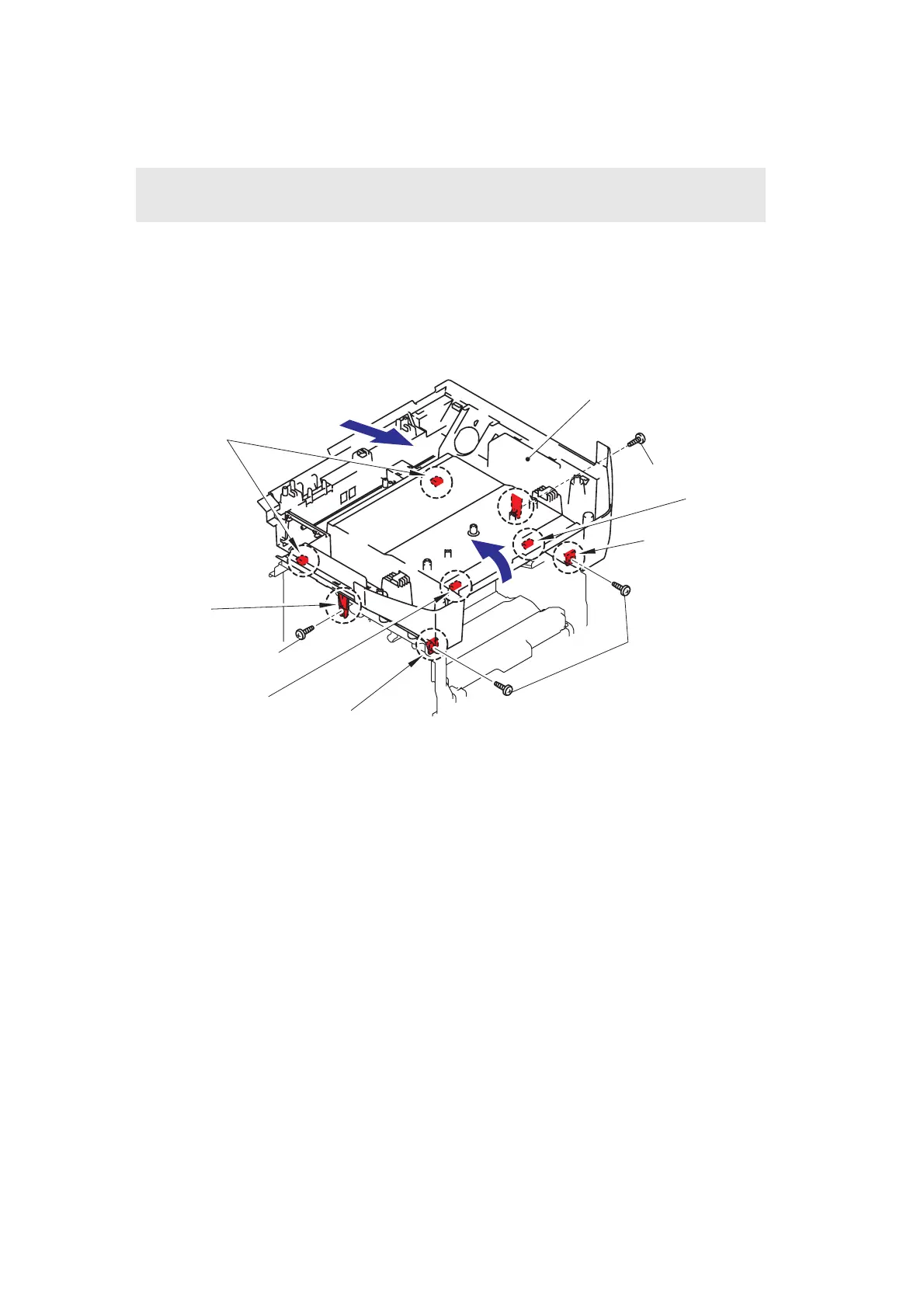

Fig. 5-202
Note:
• In the case of the CIS model, refer to "9.18.2 Joint Cover ASSY".
3
<Front side>
2
Hook
Joint cover ASSY
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite, bind B M4x12
Hook
Hook
Hook
Hook
Bosses
