5-87
Confidential
9.8.29
Document Hold / Document Hold Spring

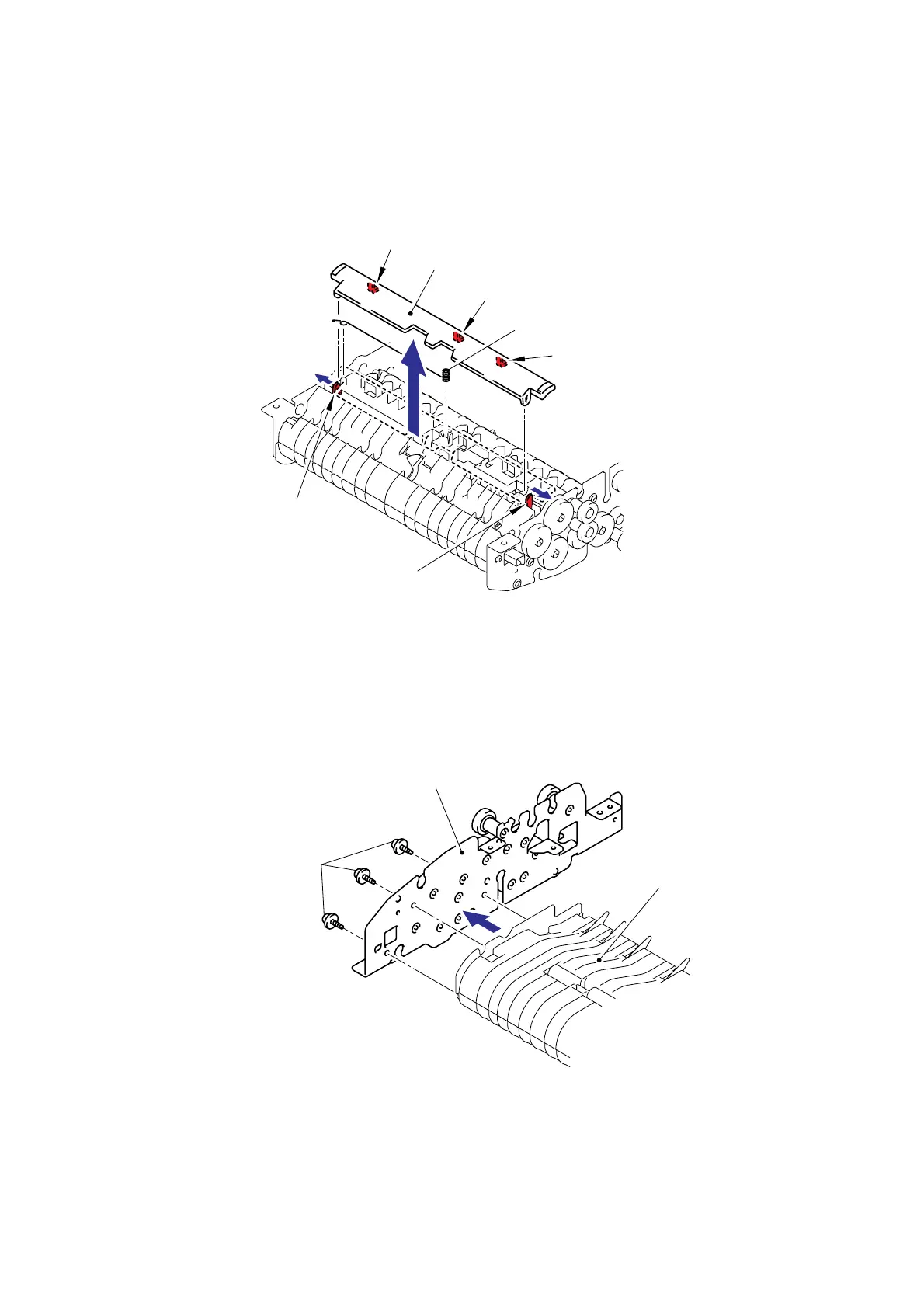

(1) Push the Hooks to the direction of the arrows as shown in the figure below to remove the
Document hold.
(2) Remove the Document hold spring gently to prevent it from jumping.
Fig. 5-84
9.8.30
Upper Main Chute ASSY / Lower Main Chute ASSY
(1) Turn the ADF chute ASSY upside down. Remove the three cup B M3x10 Taptite
screws.
(2) Remove the Drive frame sub ASSY DX.
Fig. 5-85
Hook
Hook
Document hold
Document hold spring
Hook
<Back side>
Hook
Hook
Drive frame sub ASSY DX
Taptite cup B M3x10
<Back side>
Main chute ASSY
