9.8.23 Pressure Roller / LF Spring
(1) Push the Hook to the direction of the arrow (1a) as shown in the figure below while
holding the Pressure roller, and remove the Pressure roller shaft from the hook.
(2) Pull the Pressure roller shaft out of the Pressure roller.
(3) Remove the two LF springs.

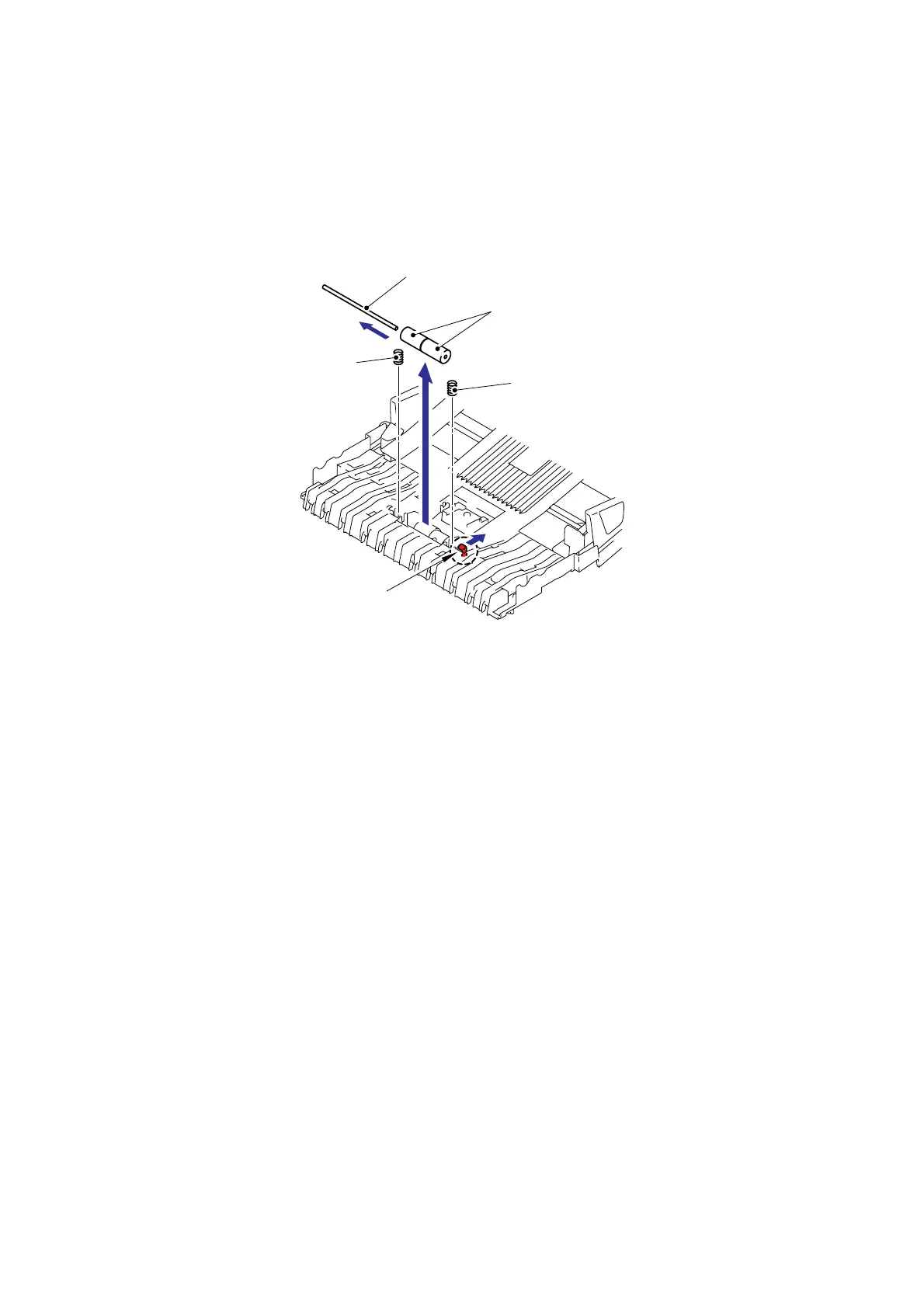

Fig. 5-73
Pressure roller shaft
Pressure rollers
LF spring
LF spring
Hook
2
1a
1b

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
