5-244
Confidential

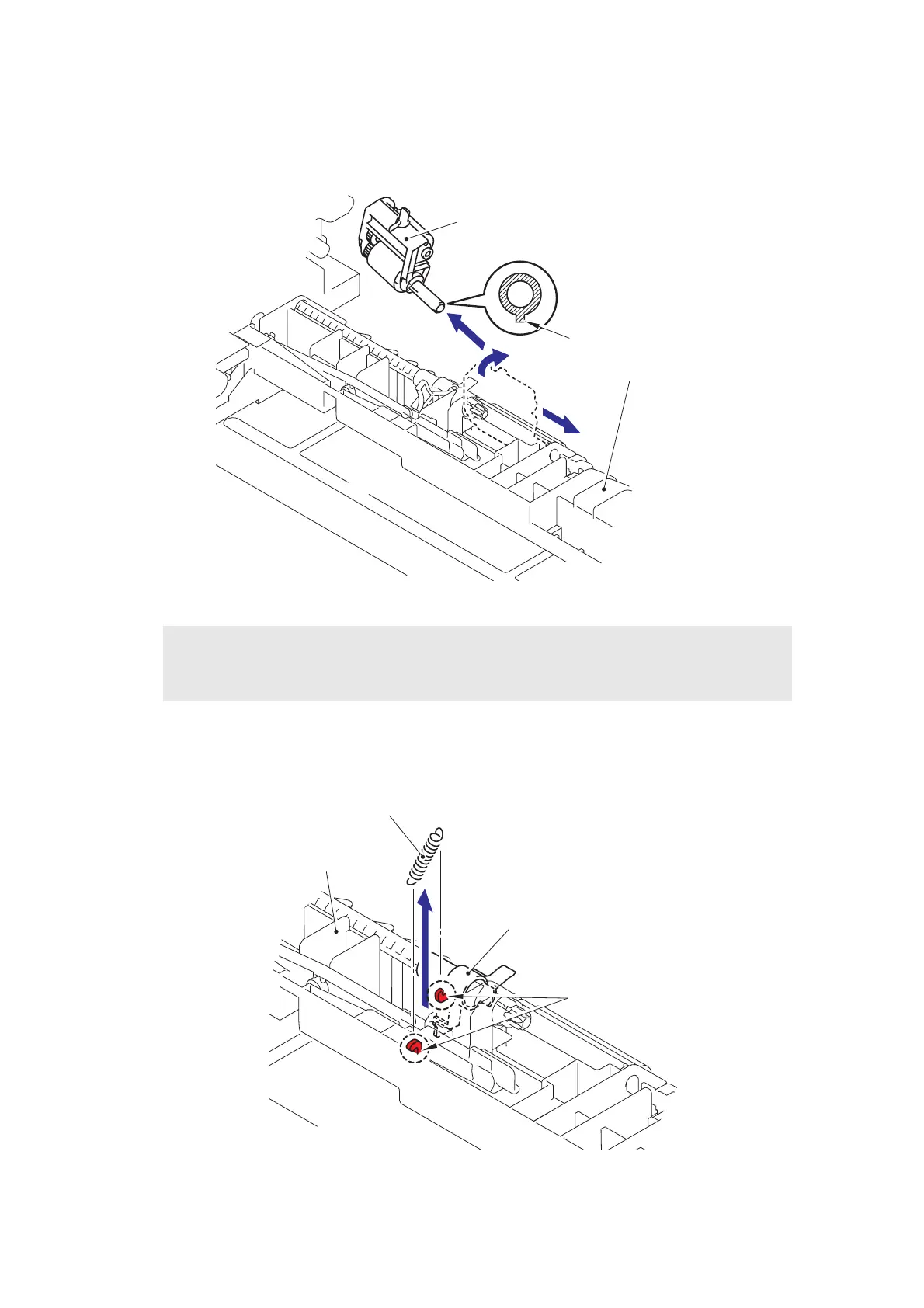

(2) Slide the Roller holder ASSY to the direction of the arrow 2a. Then, lift up the gear side
of the Roller holder ASSY to the direction of the arrow 2b and pull it out to the direction of
the arrow 2c to remove.
Fig. 5-317
10.13 Edge Actuator Spring
(1) Remove the Edge actuator spring.
Fig. 5-318
Assembling Note:
• When assembling the roller holder ASSY, align the section "A" on the shaft of the roller
holder ASSY with the hole on the LT paper feed frame.
Roller holder ASSY
"A"
2a
2b
2c
LT paper feed fram
e
Edge actuator spring
Edge actuator
Hooks
LT paper feed frame
