9.8.63 Document Rear Actuator / Document Rear Sensor
(1) Push down the Stopper, slide the Document rear actuator to the Stopper side and pull up
the Document rear actuator.
(2) Remove the Document rear actuator/Switch back spring from the Document rear
actuator.
(3) Release the Hooks of the Document rear sensor, and remove the Document rear sensor
from the Upper document sub chute ASSY.
(4) Disconnect the Connector from the Document rear sensor.

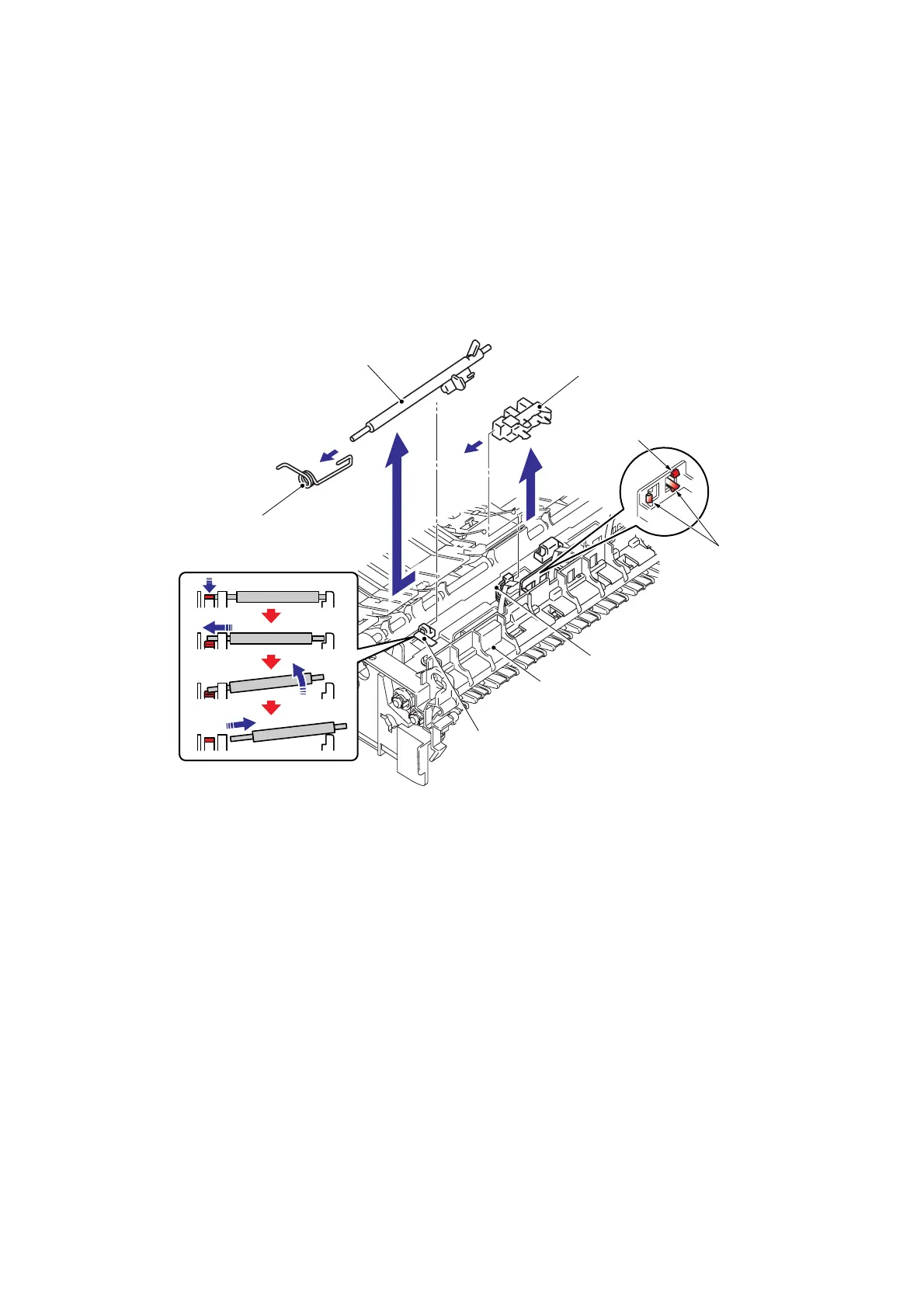

Fig. 5-133
1
3
4
2
Document rear actuator
Document rear actuator/
Switch back spring
Document rear sensor
Connector
Upper document sub chute ASSY
Stopper
Hooks
Hook
