Brother MFC-8480DN - B/W Laser - All-in-One User Manual

5-116
Confidential

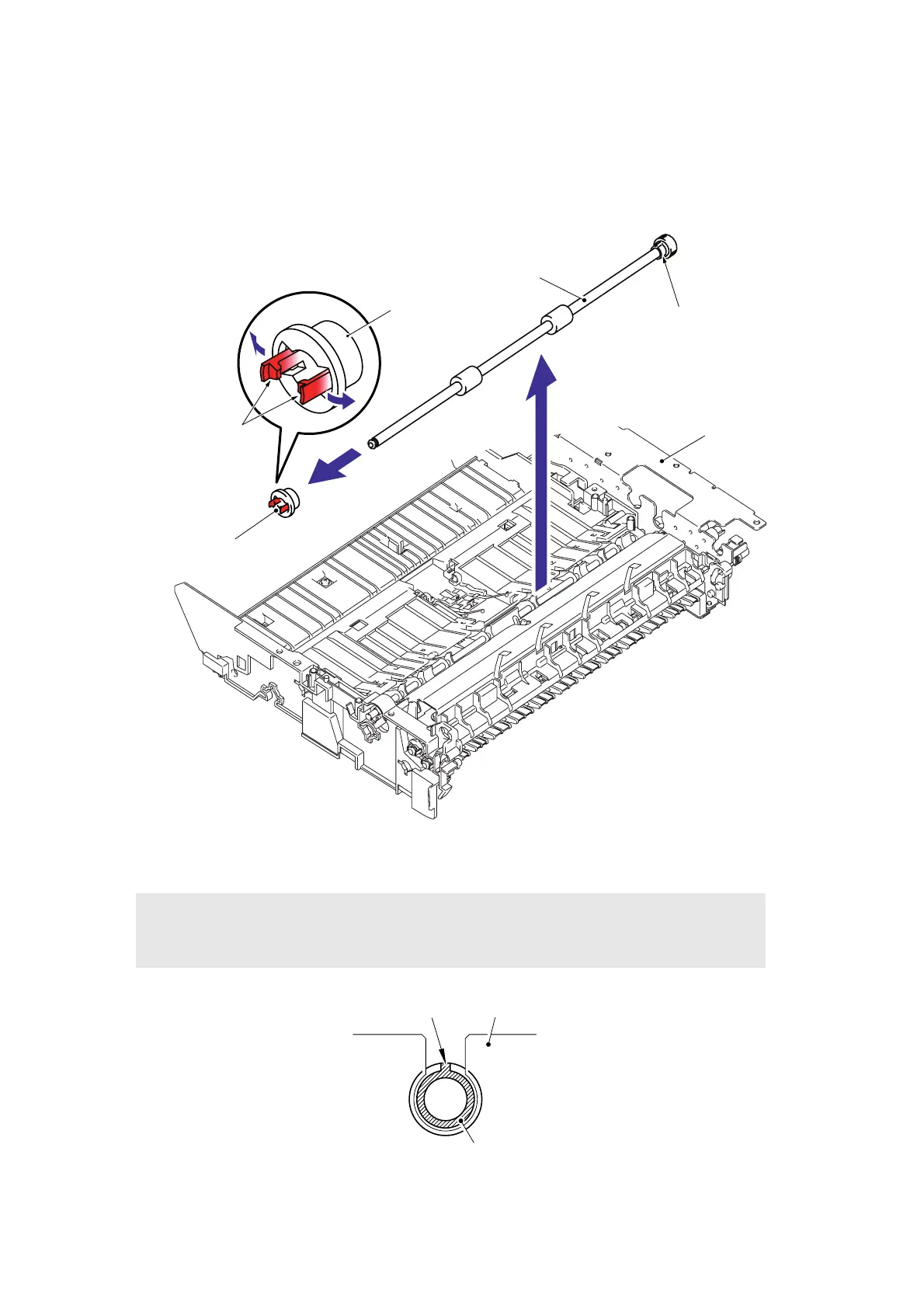

9.8.58 LF Roller 2 ASSY
(1) Release the Hook of the Conductive Bushing N to remove the Conductive Bushing N.
(2) Remove the Bushing from the ADF chute ASSY, and remove the LF roller 2 ASSY from
the ADF chute ASSY.
Fig. 5-126
Fig. 5-127
Assembling Note:
• When assembling the LF roller 2 ASSY, assemble the Bushing with aligning the Boss of
the Bushing with the notch on the ADF chute ASSY.
1a
1a
1b
2
Conductive Bushing N
LF roller 2 ASSY
Conductive Bushing N
ADF chute ASSY
Hook
Bushing
Boss
ADF chute ASSY
Bushing

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
