5-74
Confidential

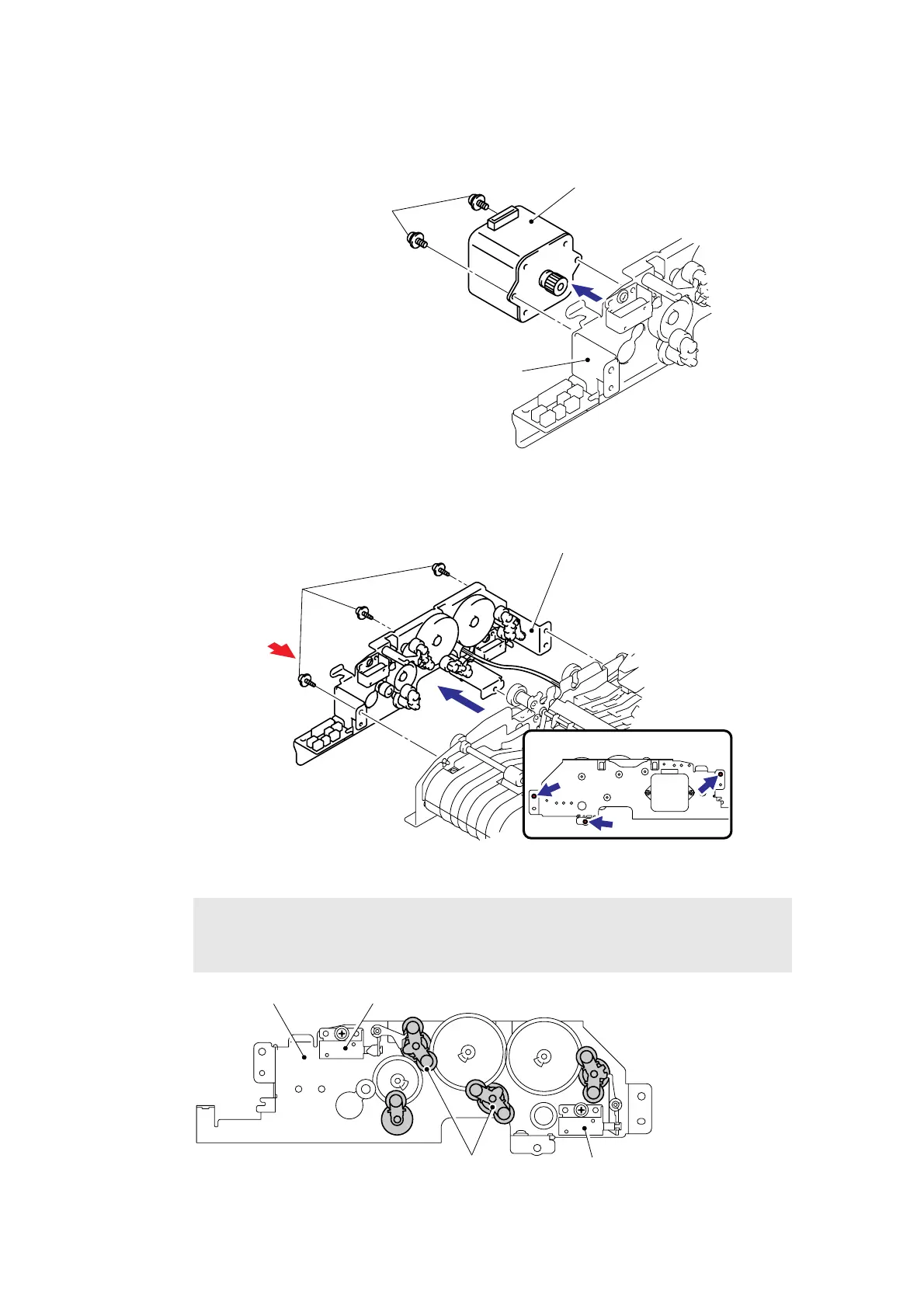

9.8.15 ADF Motor
(1) Remove the two screw pan (S/P washer) M3x6, and then remove the ADF motor.
Fig. 5-60
(2) Remove the three cup S M3x8 Taptite screws, and then remove the Motor frame ASSY.
Fig. 5-61
Fig. 5-62
Assembling Note:
• When assembling the Motor frame ASSY, ensure that the gears (indicated with
gray) are placed in the positions as shown in the figure below.
Screw, pan (S/P washer) M3X6
Motor frame ASSY
ADF motor
View A
Motor frame ASSY
Taptite cup S M3x8
Screw positions
<View A>
<Back side>
Motor frame ASSY Switch back solenoid ASSY (For the models with the DX only)
PF solenoid ASSY
(For the models with the DX only)
Switch back arm ASSY (For the models with the DX only)
