9.8.44 ADF Chute ASSY
(1) Remove the four cup B M3x10 Taptite screws, and remove the ADF chute ASSY from
the Document cover sub ASSY.

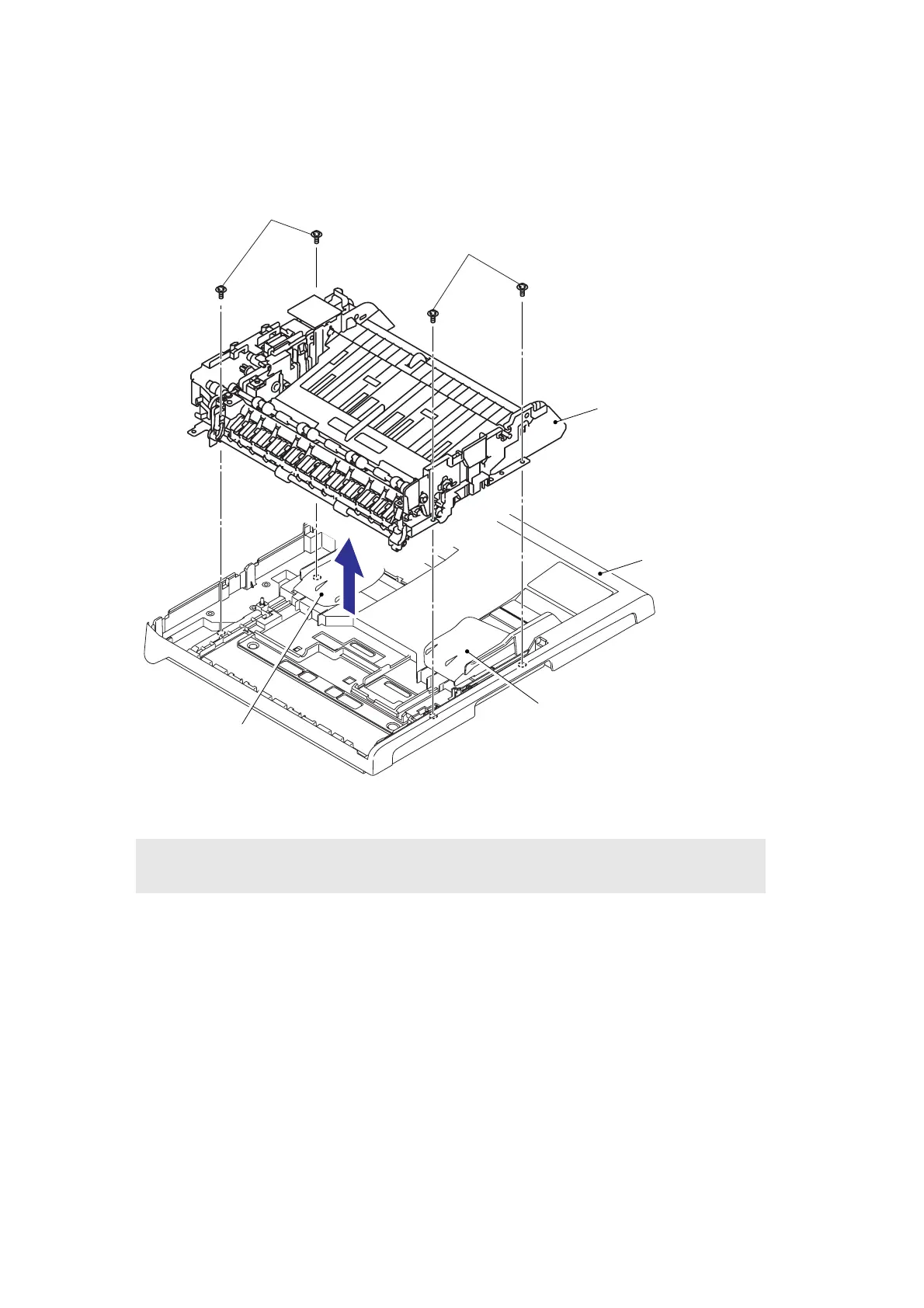

Fig. 5-106
Note:
• Check that the Document guide is opened outwards.
ADF chute ASSY
Document cover sub ASSY
Taptite cup B M3x10
Taptite cup B M3x10
Document guide
Document guide

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
