2-1
Confidential

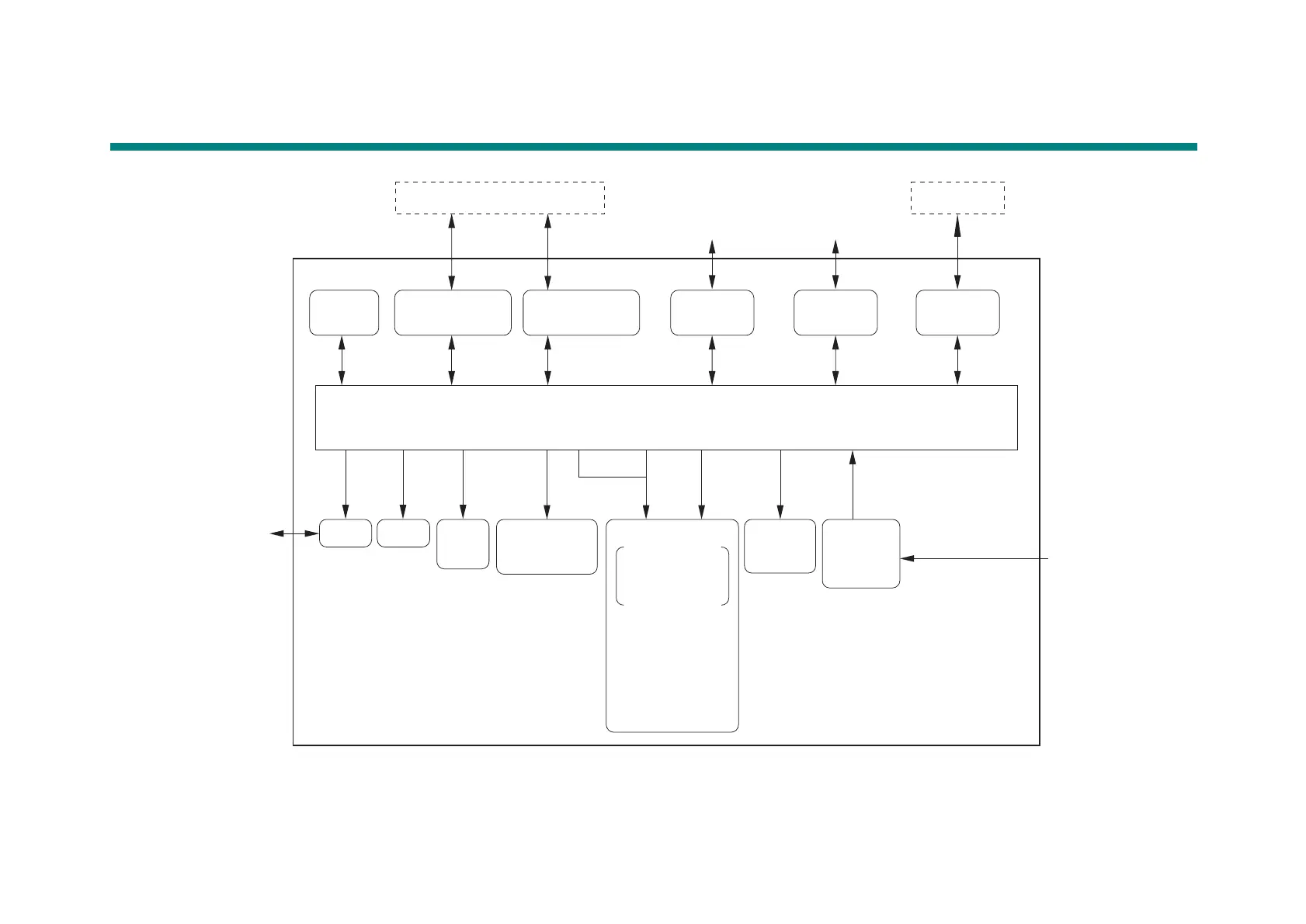

1. OVERVIEW
Fig. 2-1
Control Section
Centronics
parallel interface
(CCD model only)
USB interface
Host Computer USB Memory
Control
panel
LAN
interface
USB Host
interface
Printer
data
Fax data
Low- and
high-voltage
power
supplies
AC
LAN
(For the models with the LAN only)
WLAN
PCB
For the model with the
wireless LAN only
Paper
feeding
mechanism
Laser printing unit
*Provided on models supporting facsimile function.
Charging, exposing,
developing,
transferring, and
heat-fixing processes
- Electrical charger
- Laser unit
(including the polygon
motor)
- Laser-sensitive drum
- Developer roller
- Transfer roller
- Heater roller
- Main motor
Scanner unitADF unitNCU*Line Speaker
- Scanner module
- Scanner motor
- ADF
motor

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
