■ CIS model

9.10.9

Scanner Unit

(1) Remove the cup S M3x6 Taptite screw, and remove the FB FG harness.

(2) Disconnect the Connector of the Scanner motor harness from the Driver PCB.

(3) Disconnect the two Connectors and the FFC from the Main PCB.

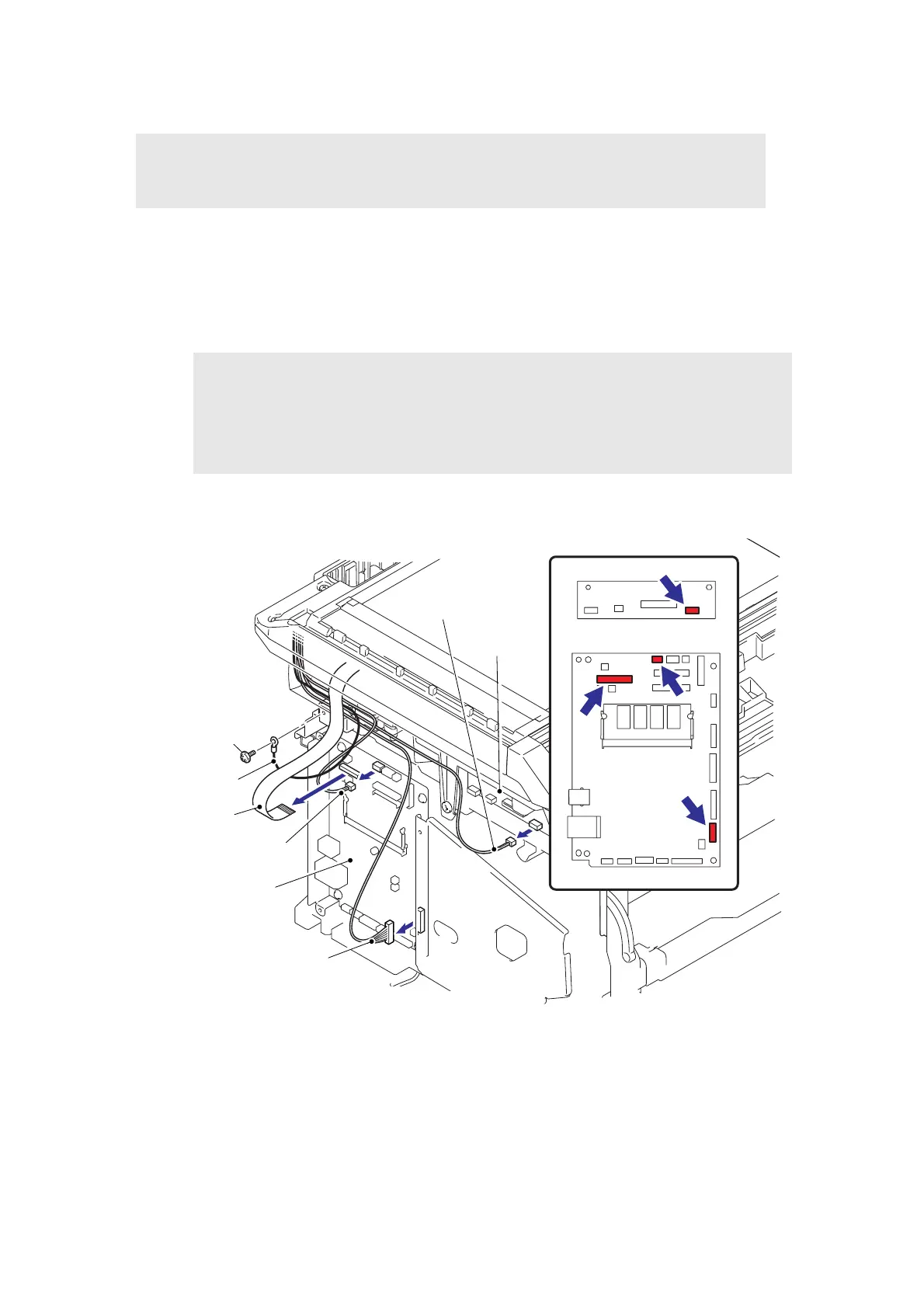

Fig. 5-161

Note:

• In the case of the CCD model, refer to "9.10.1 Scanner Unit ASSY" to "9.10.8 Home

Position Sensor".

Note:

• After disconnecting flat cable(s), check that each cable is not damaged at its end or

short-circuited.

• When connecting flat cable(s), do not insert them at an angle. After insertion, check

that the cables are not at an angle.

Driver PCB

Scanner motor harness

FFC

FB FG harness

Panel PCB harness

Home position sensor harness

Main PCB

Taptite cup S M3x6
