Brother MFC-8480DN - B/W Laser - All-in-One User Manual

5-119
Confidential

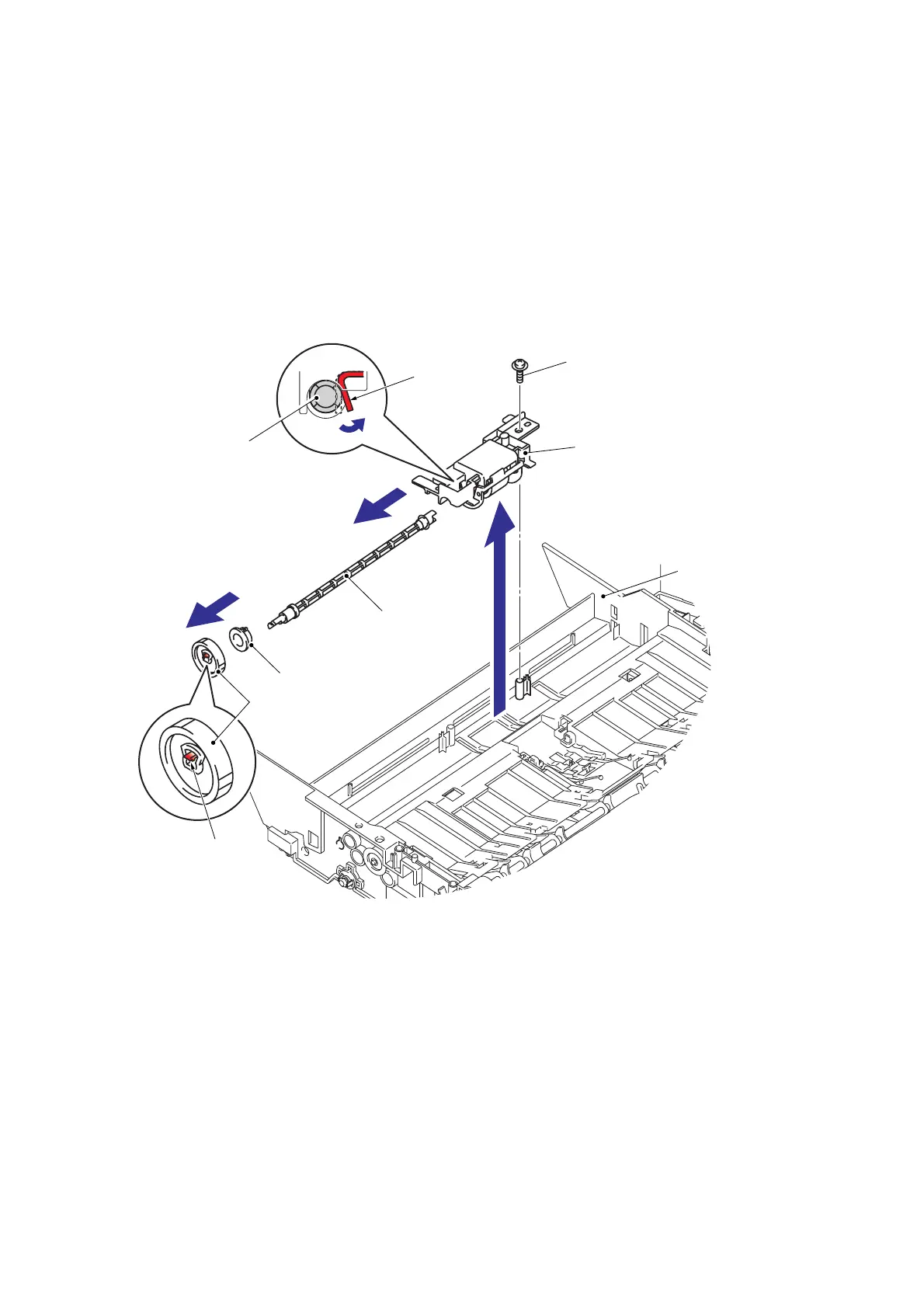

9.8.61 Document Exit Tray Roller Holder ASSY
(1) Push the Stopper, slide the Document exit tray roller shaft to the Stopper side and
remove the Document exit tray roller shaft.
(2) Release the Hook, and remove the Document exit tray roller gear 41 from the Document
exit tray roller shaft.
(3) Remove the Bushing 6F from the Document exit tray roller shaft.
(4) Remove the cup B M3x10 Taptite screw, and remove the Document exit tray roller holder
ASSY from the ADF chute ASSY.
Fig. 5-130
1b
2
3
Taptite cup B M3x10
Stopper
Document exit tray
roller shaft
Document exit tray roller holder ASSY
Document exit tray
roller shaft
ADF chute ASSY
Bushing 6F
Hook
Exit tray roller gear 41
1a
