5-66
Confidential
9.8.8 ADF Chute ASSY
(1) Disconnect the 7 connectors (for the model supporting the DX tray only) or 3 connectors
(for the model supporting no DX tray only) from the ADF relay PCB.
(2) Disconnect the connector of the ADF motor harness from the ADF motor.
(3) Remove the cup S M3x8 Taptite screw and ADF FG harness.

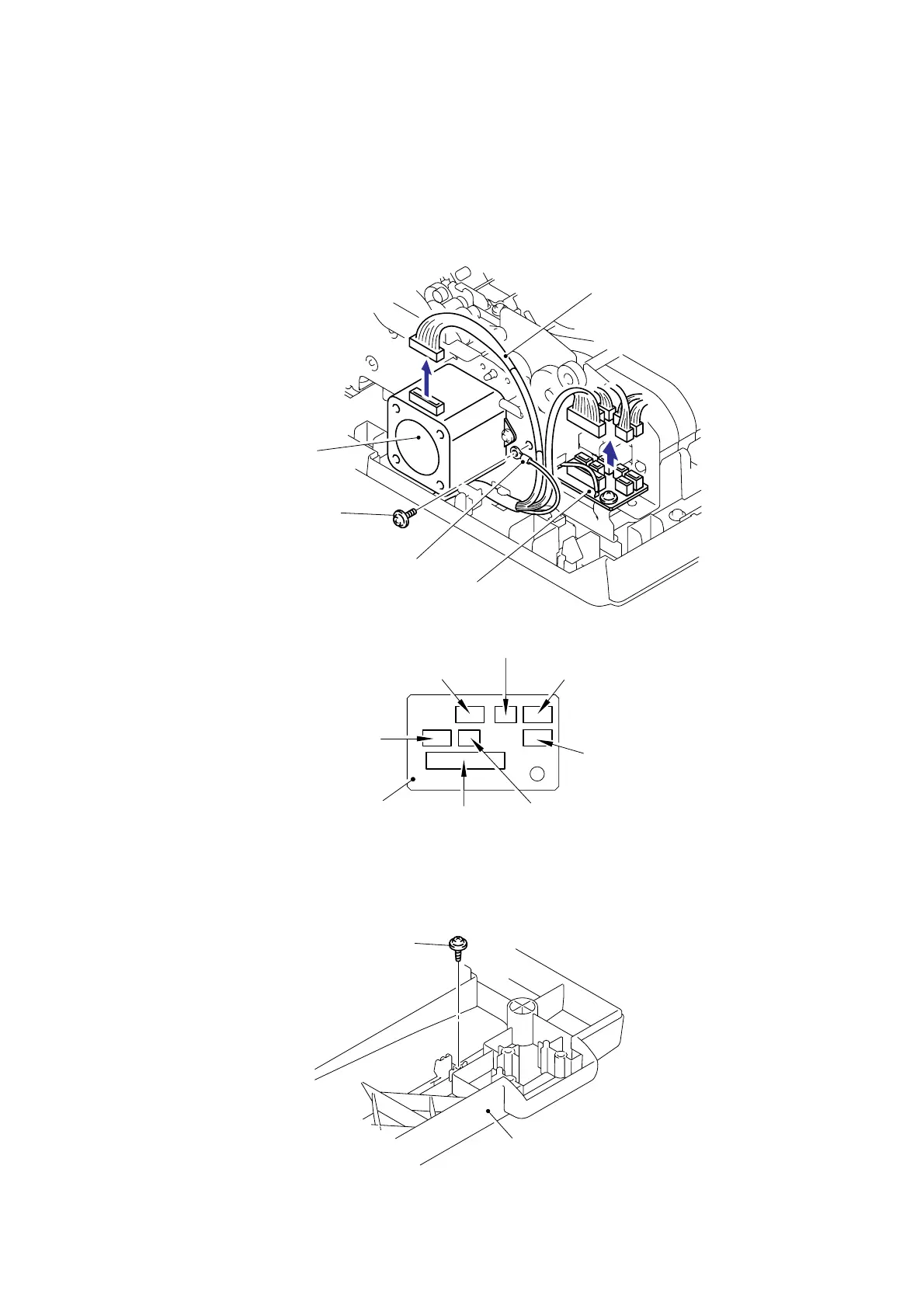

Fig. 5-46
(4) Turn the Document cover LGL upside down and remove the cup B M3x10 Taptite screw.
Fig. 5-47
ADF motor harness
ADF motor
<Back side>
1
2
ADF FG harness
ADF relay PCB
Taptite cup S M3x8
Switch back solenoid ASSY
(for the models with the DX only)
ADF relay harness
PF solenoid ASSY
(for the models with the DX only)
Document rear sensor
Document front sensor 1
Switch back sensor
(for the models with the DX only)
ADF relay PCB
Document front sensor 2
(for the models with the DX only)
Taptite, cup B M3x10
Document cover LGL

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
