10.14 PE Actuator / Edge Actuator

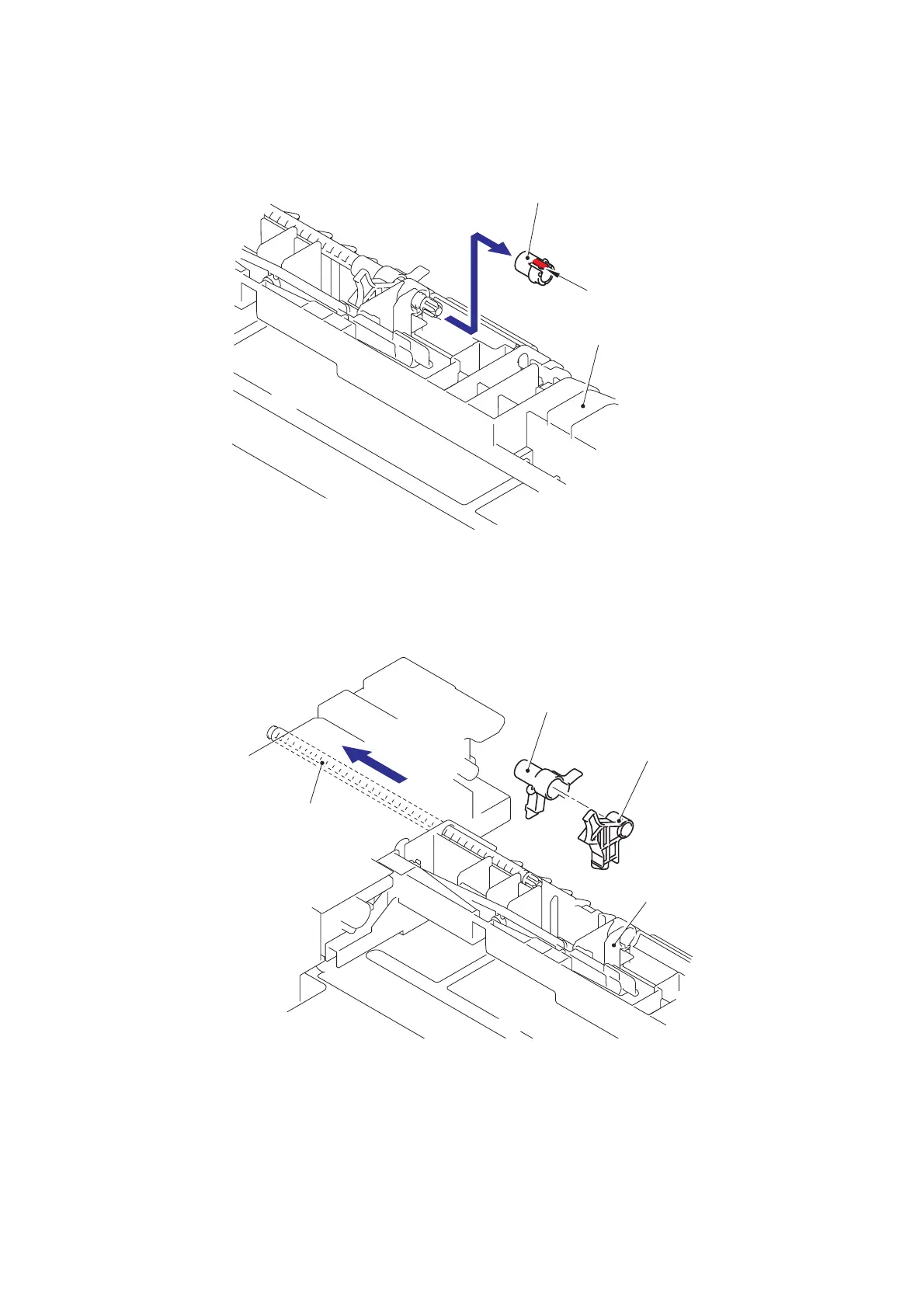

(1) Release the Hook and remove the Separation R shaft bearing.
Fig. 5-319
(2) Pull out the Separation roller drive shaft to the direction of the arrow and remove the
Edge actuator and PE actuator.
Fig. 5-320
Separation R shaft bearing
Hook
LT paper feed frame
Edge actuator
Separation roller drive shaft
PE actuator
LT paper feed frame
