Brother MFC-8480DN - B/W Laser - All-in-One User Manual

5-137
Confidential
9.10.6 Scanner Motor FB

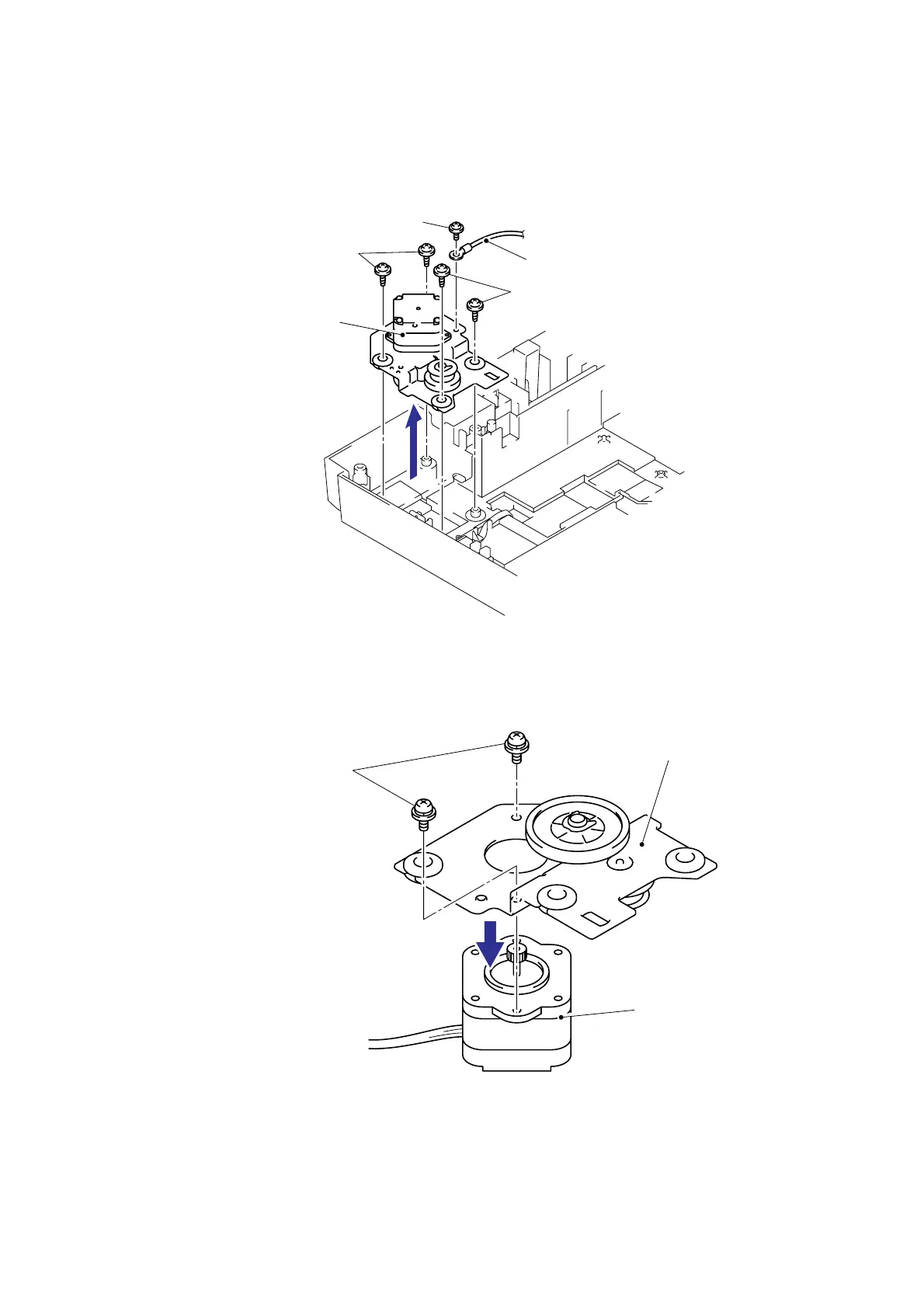

(1) Remove the cup S M3x6 Taptite screw, and then remove the FB FG harness.
(2) Remove the four pan B M3x8 Taptite screws, and then remove the Drive plate ASSY.
Fig. 5-157
(3) Remove the two Screws pan (S/P washer) M3x6, and then remove the Scanner motor
FB.
Fig. 5-158
Taptite cup S M3x6
Taptite B M3x8
Drive plate ASSY
Taptite B M3x8
FB FG harness
Drive plate ASSY
Screw, pan (S/P washer) M3X6
Scanner motor FB

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
