5-191
Confidential
9.24 Drive Release Link
(1) Remove the bind B M3x10 Taptite screw.
(2) Lift up the back end of the Drive release cam slightly while lifting up the MP solenoid
lever and the MP solenoid ASSY and remove them from the guide part of the Frame L.
(3) Turn the Drive release link to the direction of the arrow 3 until the groove of the Drive
release link is aligned with the boss of the Frame L.
(4) Remove the Drive release cam.

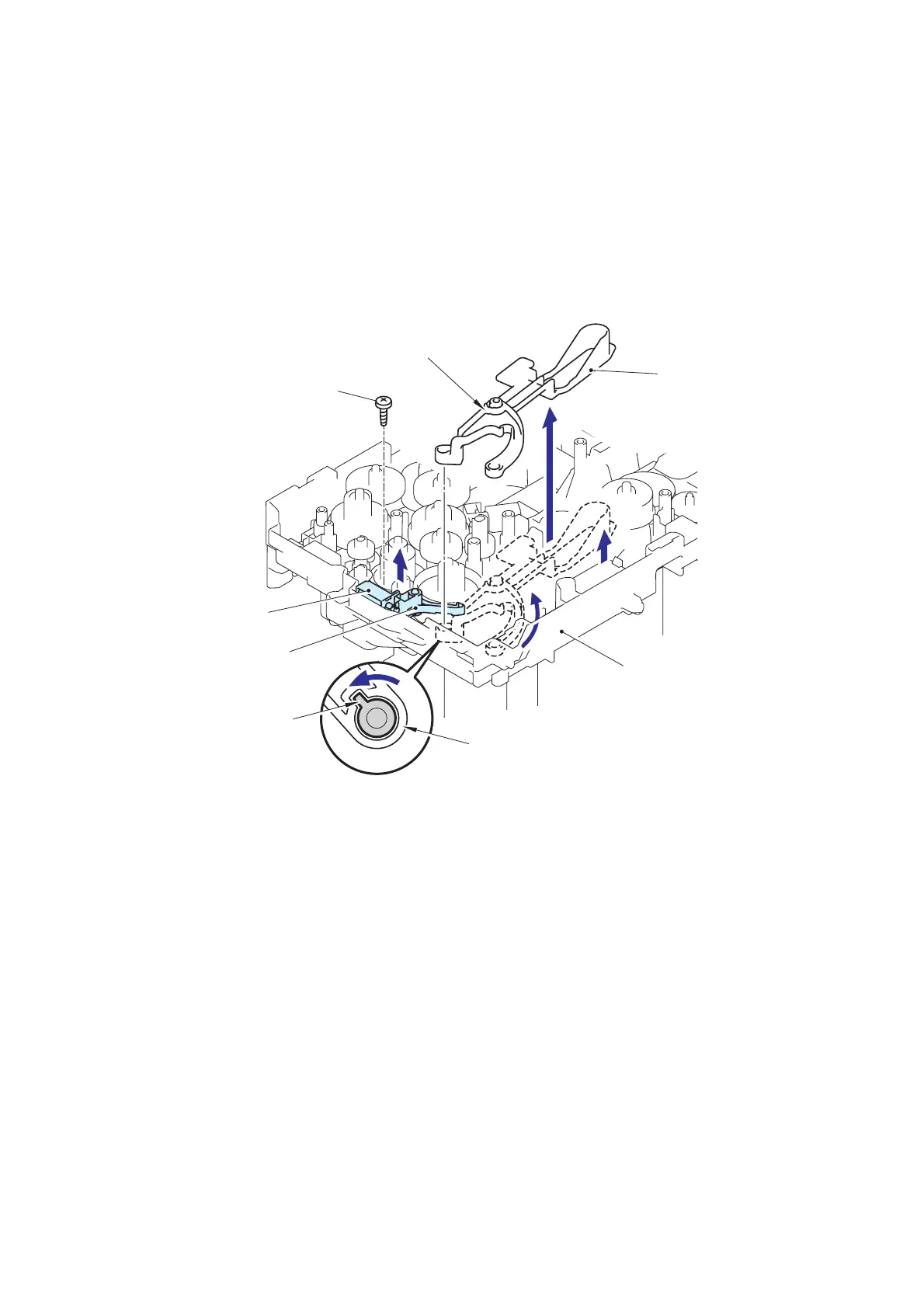

Fig. 5-226
Drive release cam
Drive release link
Frame L
Guide
Boss
MP solenoid ASSY
Taptite, bind B M3x10
MP solenoid lever
2a
2b
4
3
3
2a
2b
4
3
3
