5-151
Confidential
9.11.6 Back Light PCB ASSY
(1) Turn the Panel unit upside down.
(2) Disconnect the two FFCs from the Back light PCB ASSY and the Panel PCB ASSY.
(3) Release the Hooks of the LCD holder, and remove the Back light PCB ASSY from the
LCD holder.
(4) Unlock the Connector of the back side of the Back light PCB ASSY to disconnect the
LCD harness.

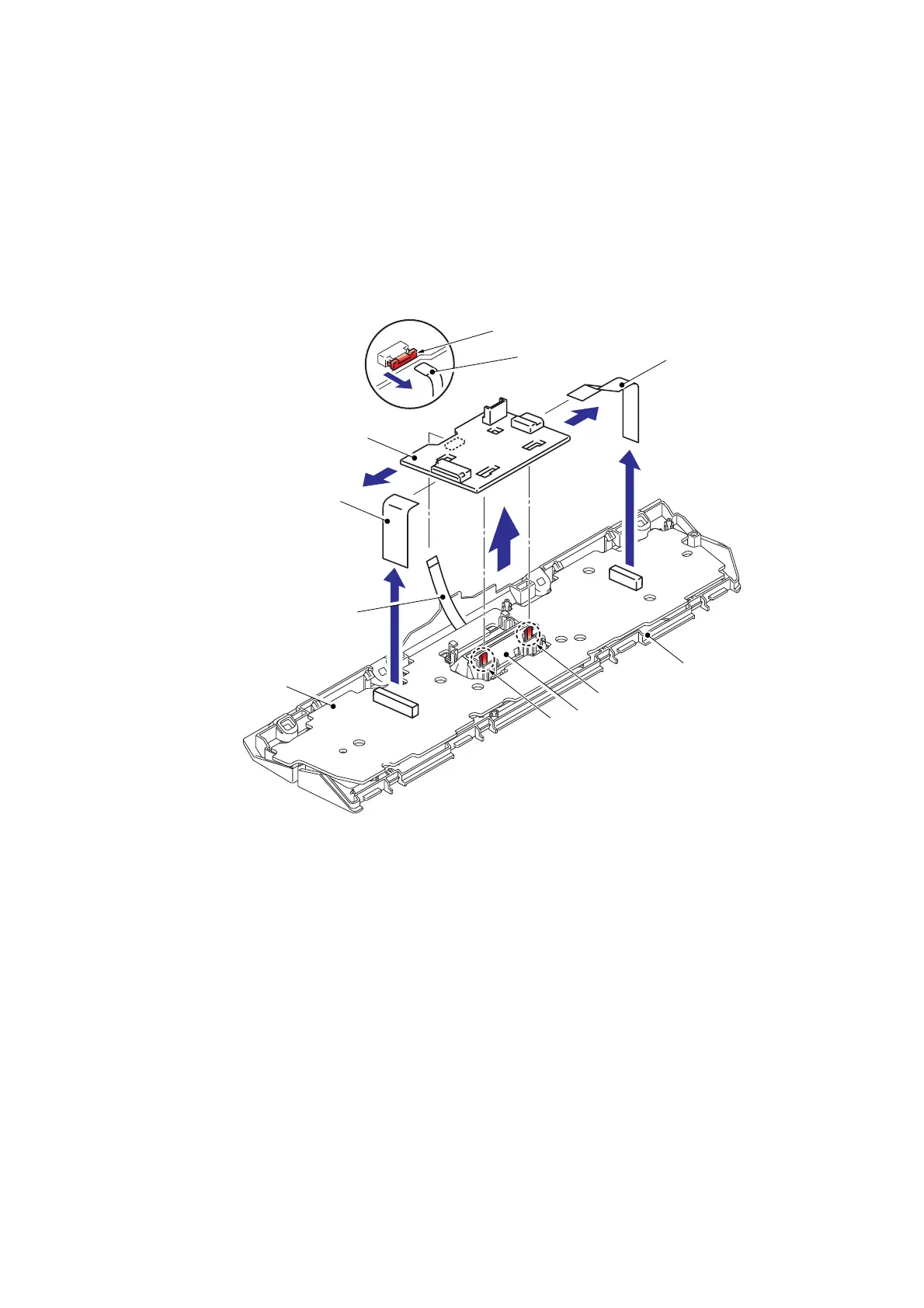

Fig. 5-175
Panel PCB ASSY
Back light PCB ASSY
FFC
LCD harness
LCD harness
FFC
Lock
22
22
22
22
33
44
Panel unit
LCD holder
Hook
Hook

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
