2-3
Confidential
3. MECHANICS

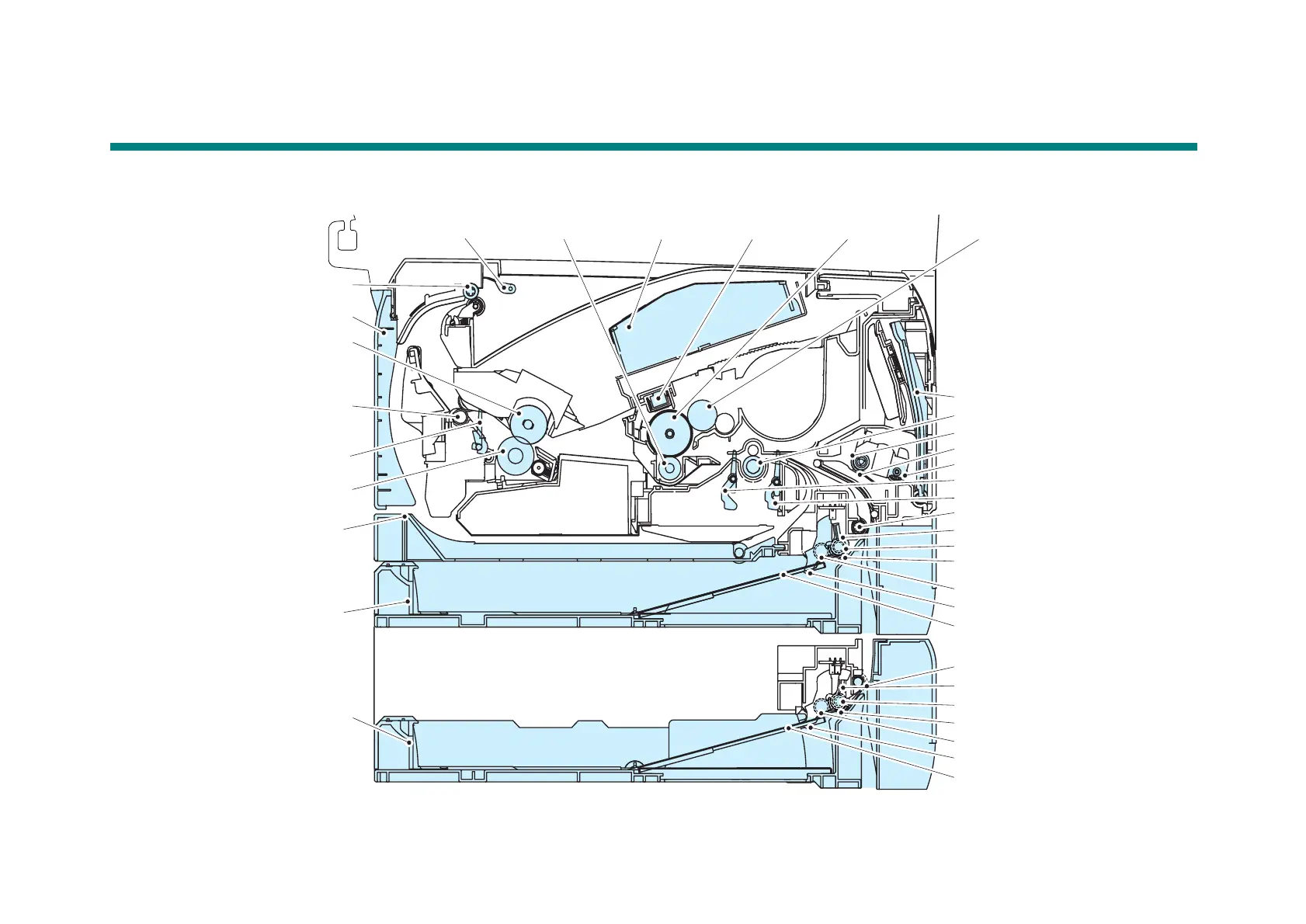

3.1 Cross-section Drawing
- Printer part
Fig. 2-3
MP
Duplex unit
Exposure drumCorona wireLaser unit
Eject roller 2
Heat roller
Paper eject actuator
Pressure roller
Back cover
Transfer rollerPaper stack lever
Paper tray
Paper tray (LT unit)
Paper feed roller MP
Separation roller MP
Paper feed roller
Separation roller
Regist actuator front
Regist actuator rear
PE actuator
Feed roller TR
Separation roller LT
Feed roller LT
Paper feed roller LT
Edge actuator
Plate
Separation pad
Separation pad MP
MP tray
Regist roller
Develop roller
Plate LT
Separation pad LT
PE actuator LT
Edge actuator LT
Eject roller 1

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
