Brother MFC-8480DN - B/W Laser - All-in-One User Manual

7-18
Confidential
4.6.2 Printout of firmware switch data (Function code 11)
<Function>
The machine prints out the setting items and contents specified by the firmware switches.
<Operating Procedure>
(1) Press the [1] key twice in the initial stage of the maintenance mode.
The "PRINTING" will appear on the LCD.

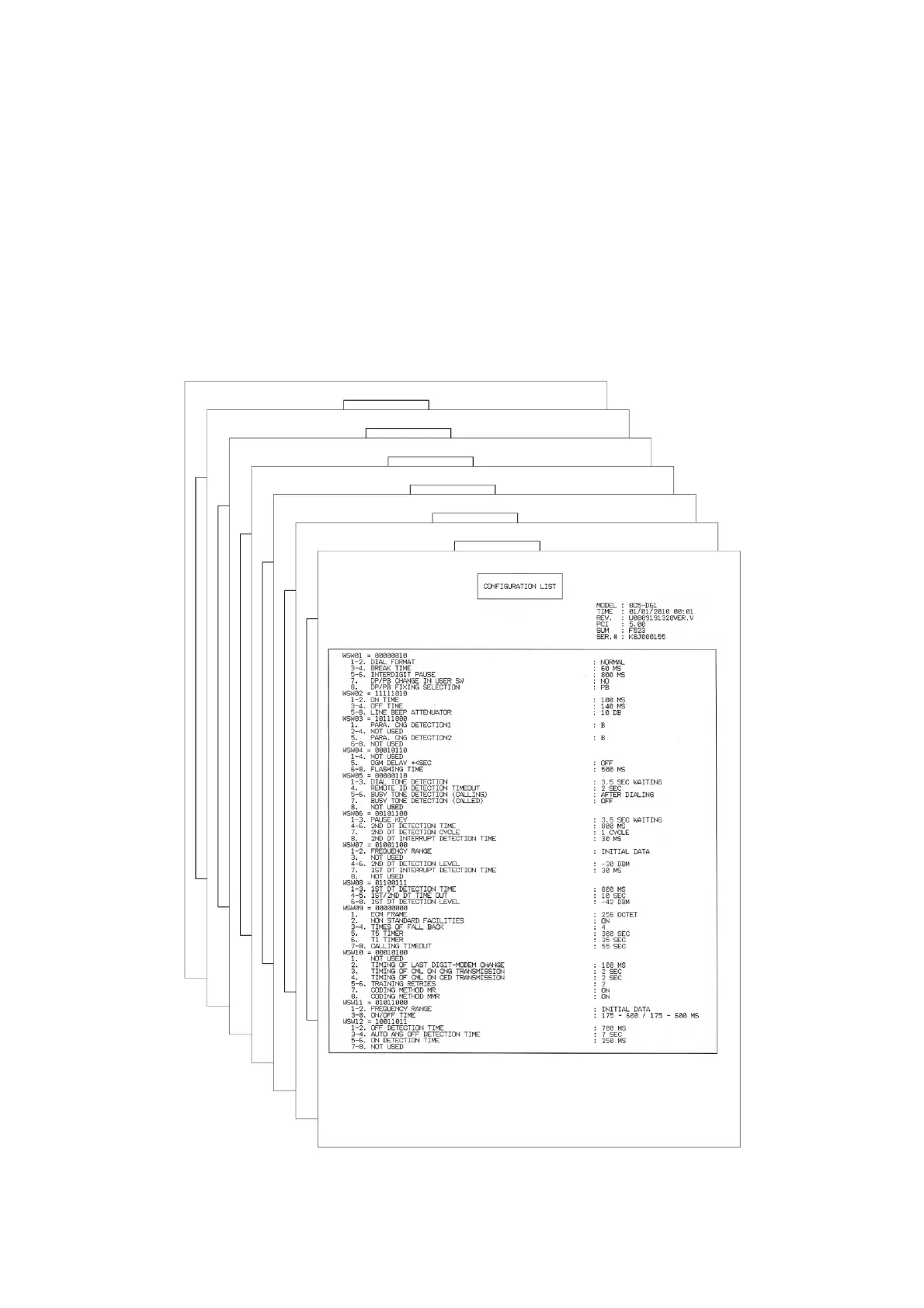

(2) The machine prints out the configuration list as shown in the figure below.
(3) Upon completion of printing, the machine returns to the initial stage of the maintenance
mode.
Fig. 7-6

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
