9.8.9 Sub Chute ASSY (For the models with the DX only) /
SX Chute (For the models without the DX only)
(1) Remove the two cup S M3x8 Taptite screws.
(2) Remove the Sub chute ASSY or SX chute from the ADF chute ASSY.

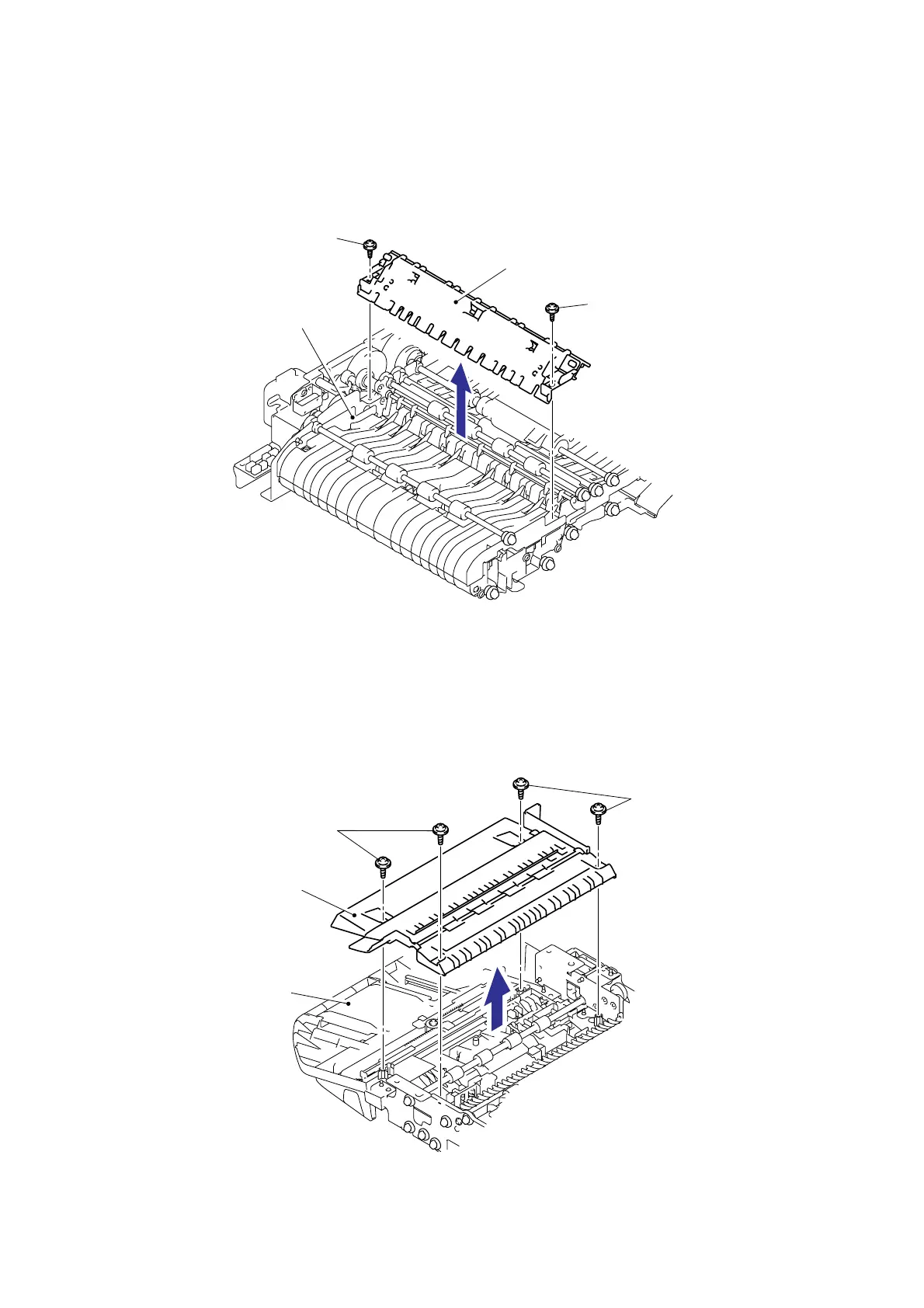

Fig. 5-50
9.8.10 Exit Chute Cover ASSY
(1) Turn the ADF chute ASSY upside down and remove the four cup B M3x10 Taptite
screws.
(2) Remove the Exit chute cover ASSY from the ADF chute ASSY.
Fig. 5-51
Taptite cup S M3x8
ADF chute ASSY
Taptite cup S M3x8
<Front side>
Sub chute ASSY or SX chute
Taptite cup B M3x10
Exit chute cover ASSY
ADF chute ASSY
<Front side>
Taptite cup B M3x10
