9.8.33 Switch Back actuator / Switch Back Sensor (For the models with the DX only)

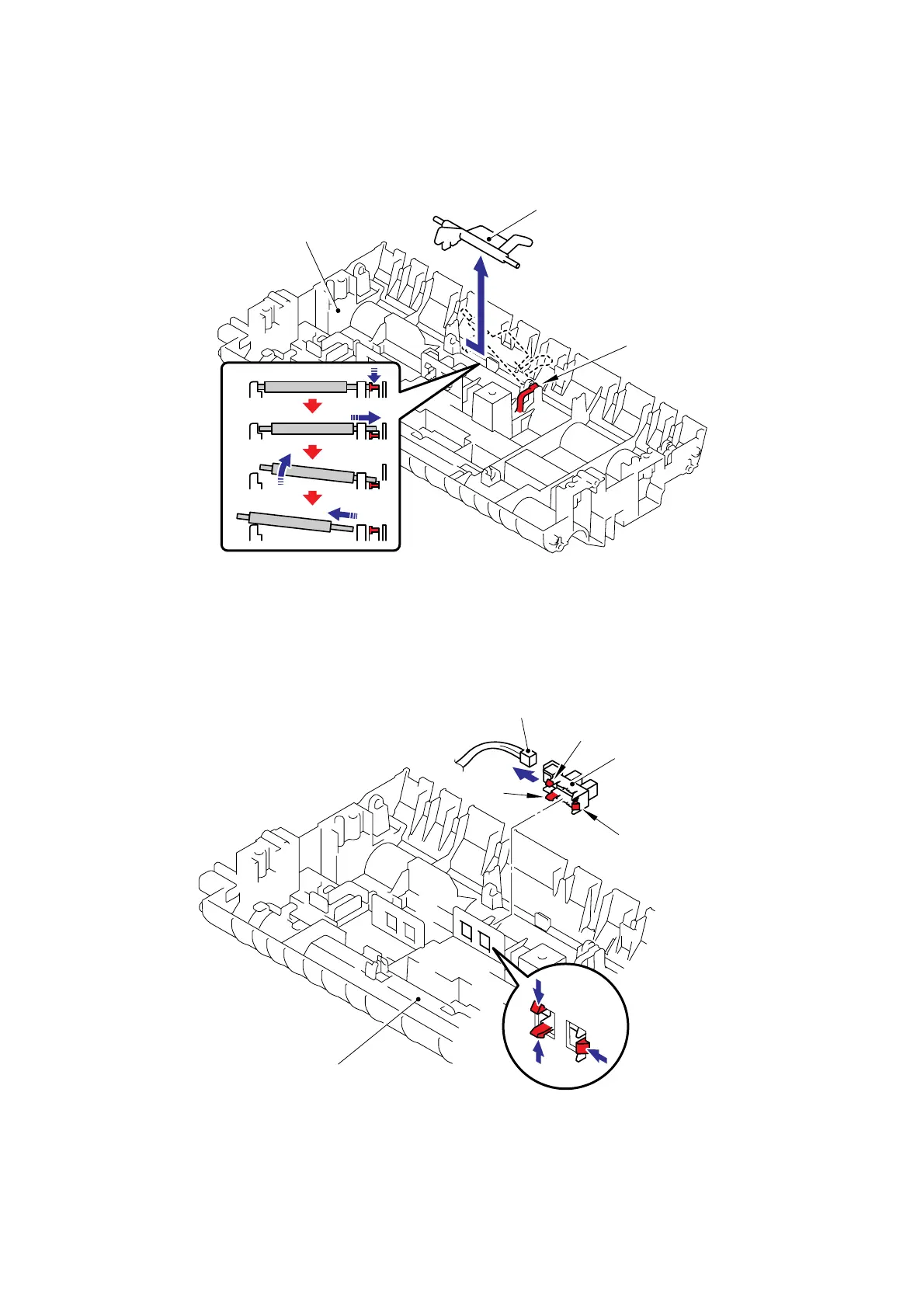

(1) Push down the Stopper, slide the Switch back actuator to the stopper side and pull up
the Actuator switch back to remove.
Fig. 5-91
(2) Release the Hooks of the Switch back sensor to remove the Switch back sensor from
the Lower main chute ASSY.
(3) Disconnect the Connector from the Switch back sensor.
Fig. 5-92
Lower main chute ASSY
Switch back actuator
Stopper
Connector
Hook
Hook
Switch back sensor
Lower main chute ASSY
Hook
