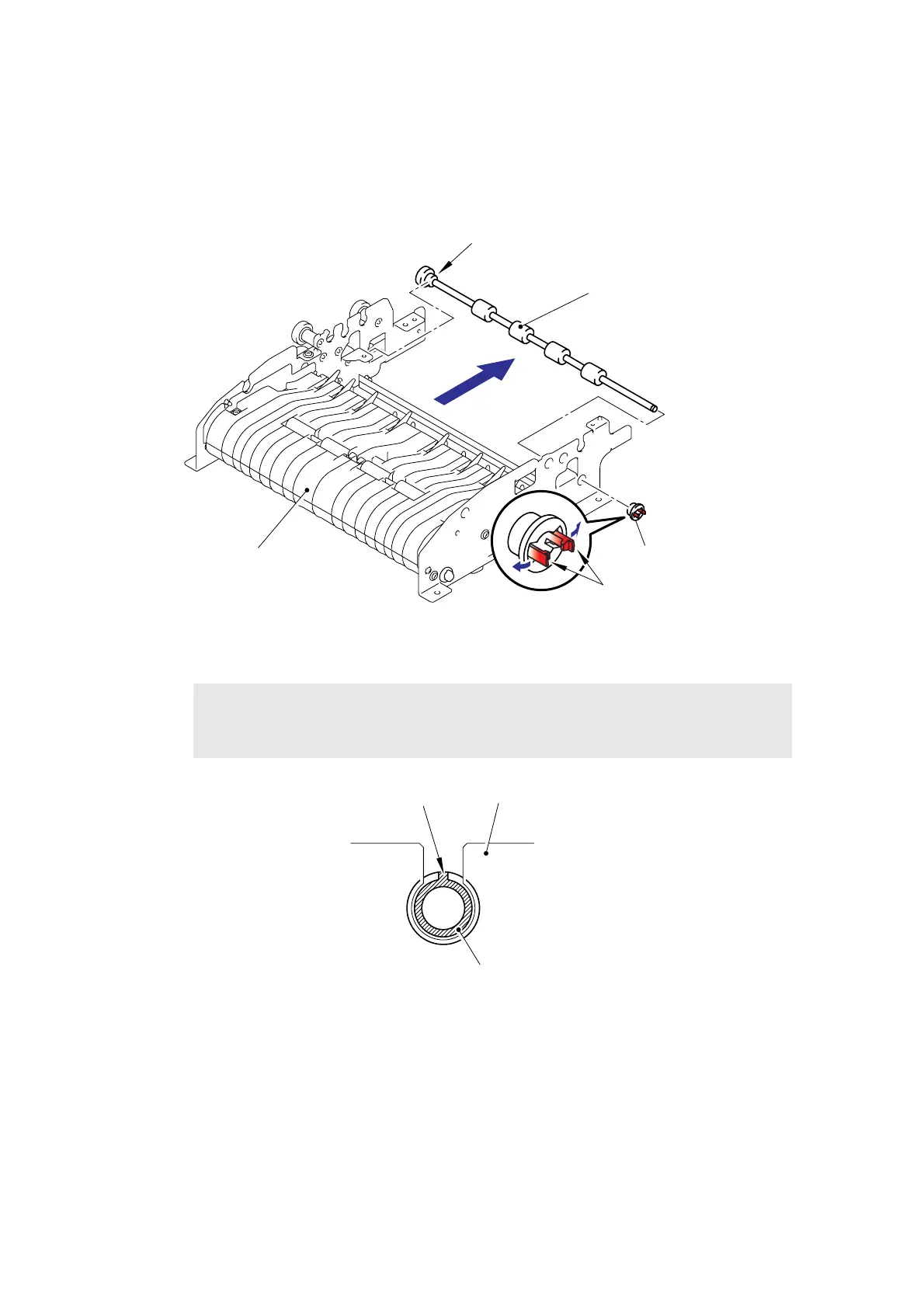

9.8.25 Document Exit Roller ASSY
(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the Document exit roller
ASSY from the ADF chute ASSY.
Fig. 5-76
Fig. 5-77
Assembling Note:
• When assembling the Document exit roller ASSY, assemble the Bushing with
aligning the Boss of the Bushing with the notch on the ADF chute ASSY.
Bushing
Document exit roller ASSY
Conductive bushing A
Hooks
<Front side>
ADF chute ASSY
Boss ADF chute ASSY
Bushing
