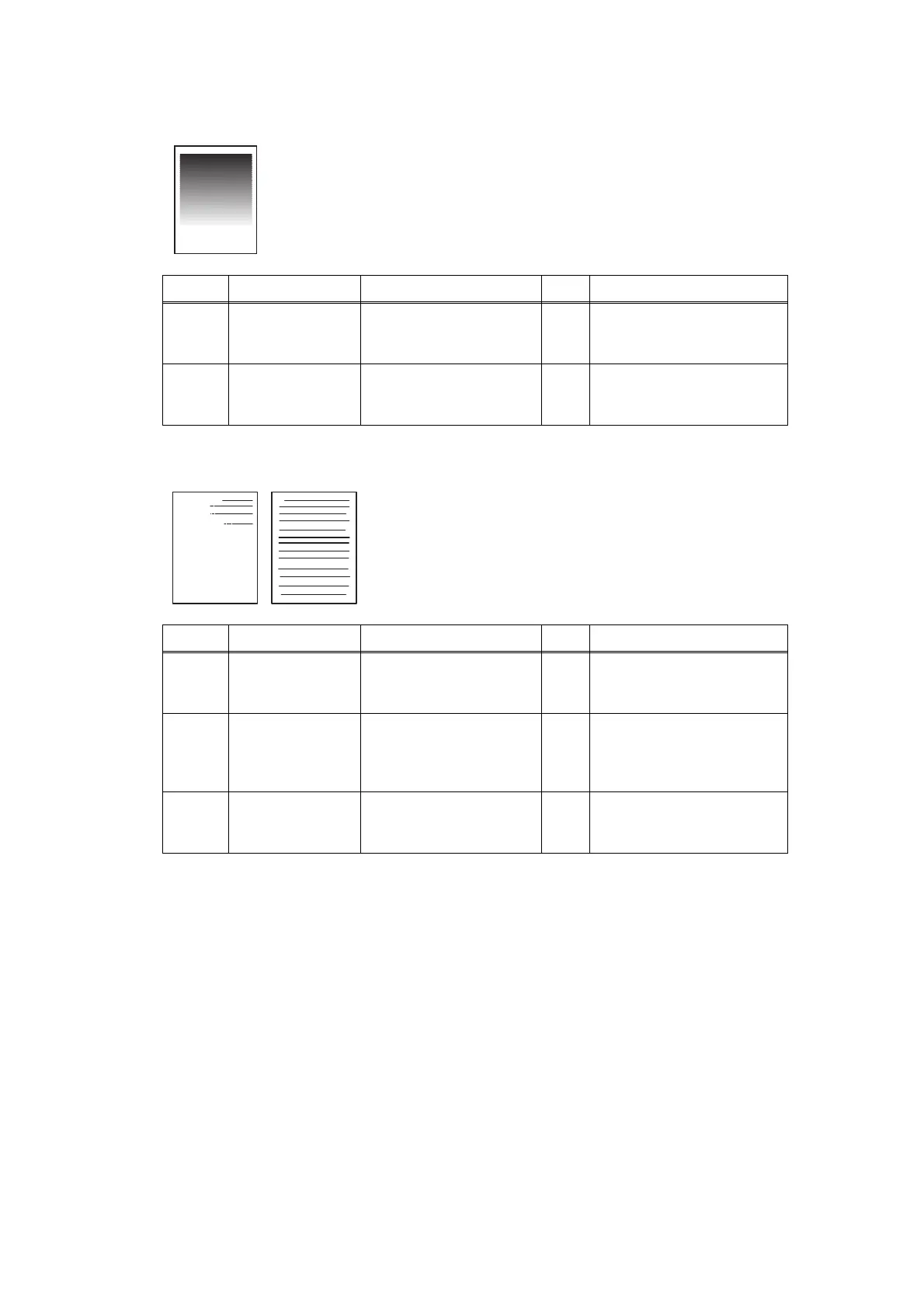

■ Downward fogging of solid color
■ Horizontal lines
<User Check>
- Toner may be empty. Replace the toner cartridge with a new one.
Step Cause Check
Result Remedy
1
HVPS PCB
failure
Is the problem solved
after replacing the
HVPS PCB ASSY?
Yes
Replace the HVPS PCB
ASSY.
2
Main PCB failure Is the problem solved
after replacing the main
PCB ASSY?
Yes
Replace the main PCB
ASSY.
<User Check>
- The paper tray ground terminal provided in the machine
body may be dirty. Clean the contact with a dry cloth.
Step Cause Check
Result Remedy
1
Dirt on charged
electrode
Are the electrodes on
the drum unit and
machine body dirty?
Yes
Clean both electrodes.
(Refer to Fig. 3-2, Fig. 3-3.)
2
Paper tray
ground terminal
provided in
machine body
Is the paper tray ground
terminal bent, which is
provided in the machine
body?
Yes
Correct bending of paper
tray ground terminal.
3
Laser unit failure Is the problem solved
after replacing the laser
unit?
Yes
Replace the laser unit.

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
