Brother MFC-8480DN - B/W Laser - All-in-One User Manual

5-71
Confidential
9.8.13 LF Roller 1 ASSY
(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Release the Lock lever and then remove the Bushing from the ADF chute ASSY, and
remove the LF roller 1 ASSY from the ADF chute ASSY.

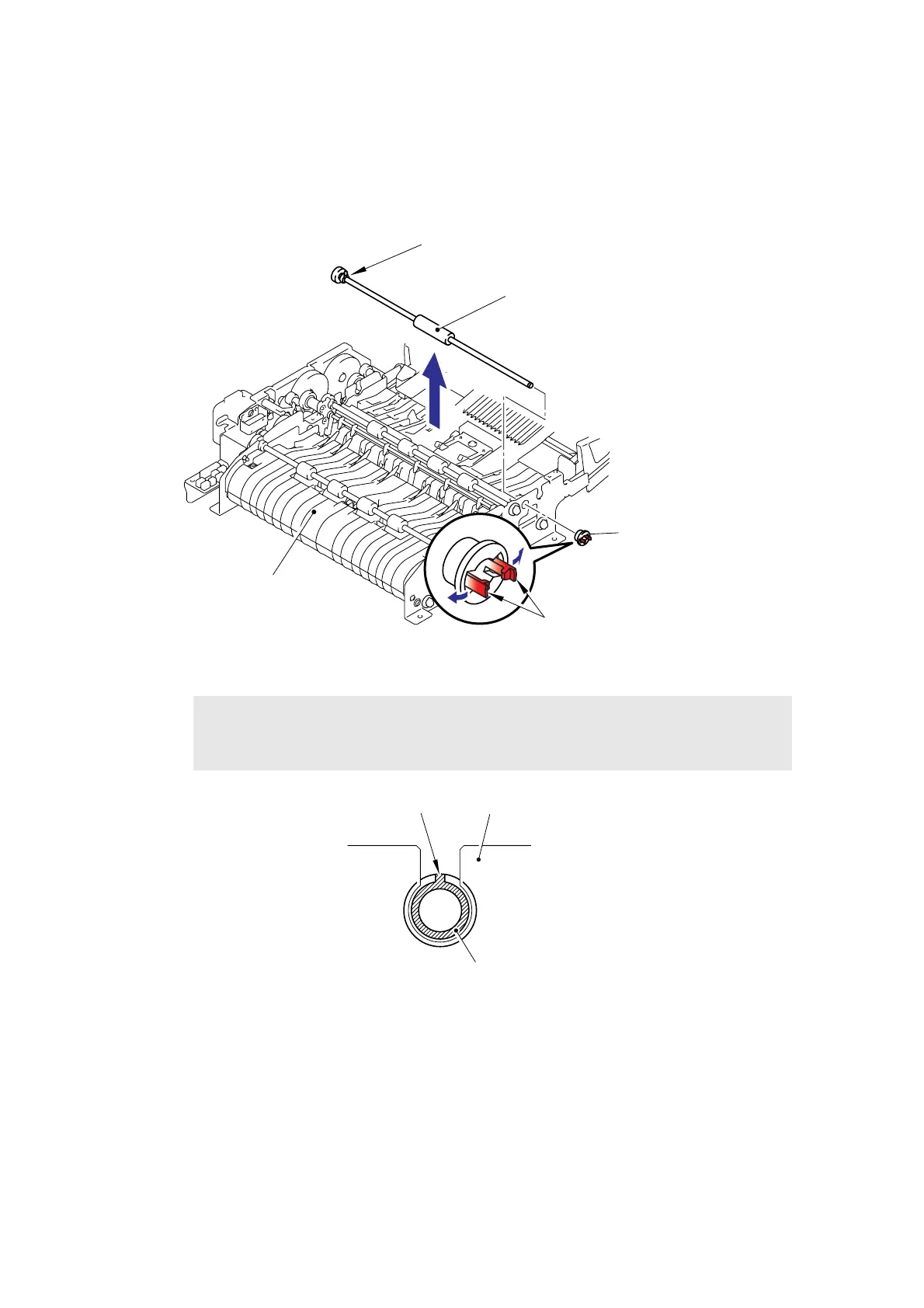

Fig. 5-55
Fig. 5-56
Assembling Note:
• When assembling the LF roller 1 ASSY, assemble the Bushing with aligning the
Boss of the Bushing with the notch on the ADF chute ASSY.
Hooks
Bushing
LF roller 1 ASSY
ADF chute ASSY
Conductive bushing A
<Front side>
Boss ADF chute ASSY
Bushing

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
