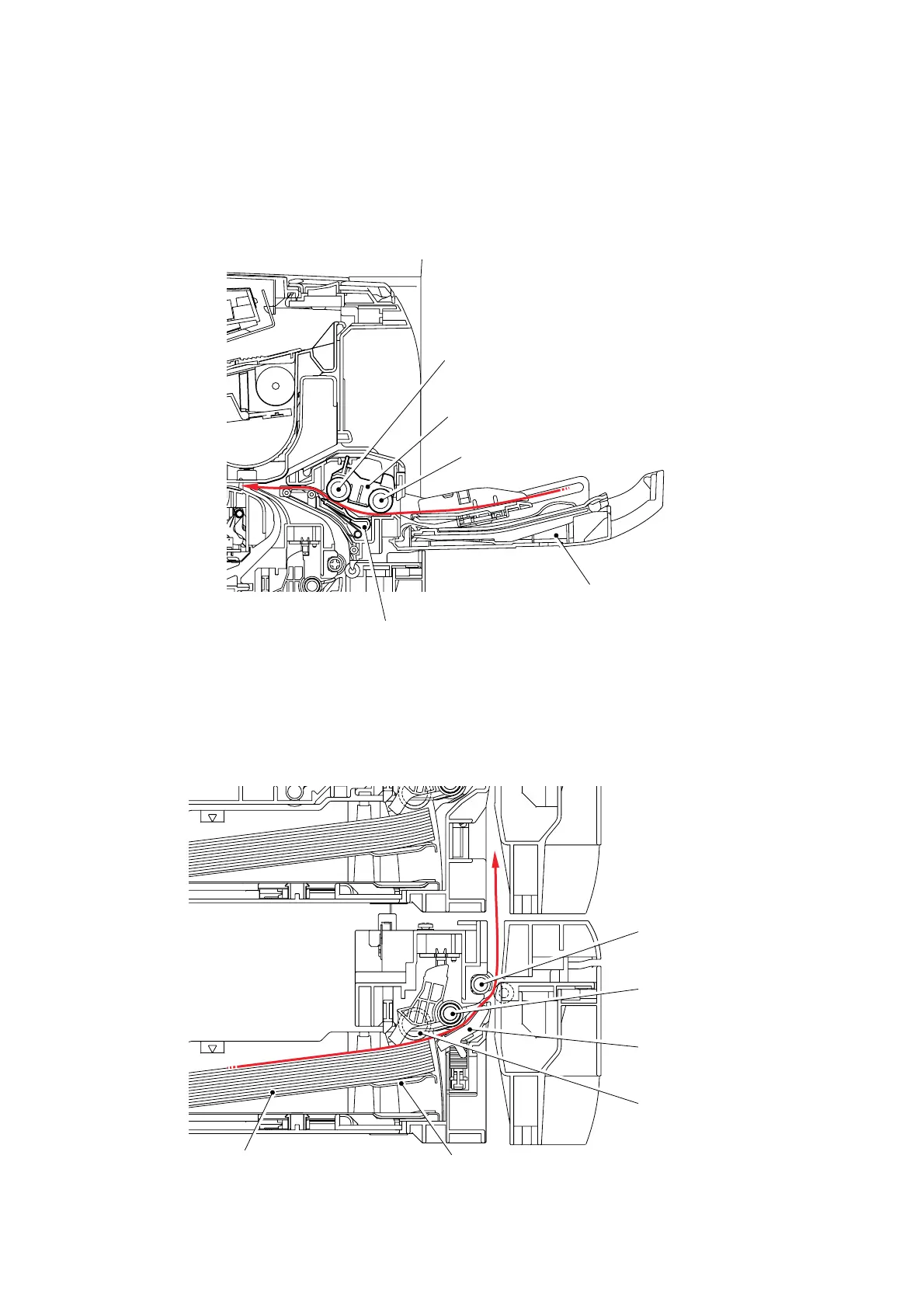

3.3.6 Paper feeding from the MP tray

The separation roller MP is connected with the feed roller through the gear in the MP roller

holder ASSY. When the separation roller is driven, therefore, the feed roller is also driven. At

this time, the recording paper is drawn out of the MP tray by rotation of the paper feed roller

MP contacted with the recording paper. The drawn recording paper is separated into

individual sheets by the separation roller MP.

Fig. 2-25

3.3.7 Paper feeding from the LT tray (Tray2)

The motor drive is transmitted to the some gears to rotate the feed roller, then the recording

paper is drawn out of the LT tray. The drawn recording paper is separated into individual sheet

by the separation roller and the separation pad, and fed to the machine by the feed roller TR.

Fig. 2-26

Separation roller MP

Paper feed roller MP

MP roller holder ASSY

MP tray cover ASSY

Separation pad ASSY MP

Feed roller TR

Separation roller

Separation pad

Paper feed roller

Plate

Paper
