1.2 Part names

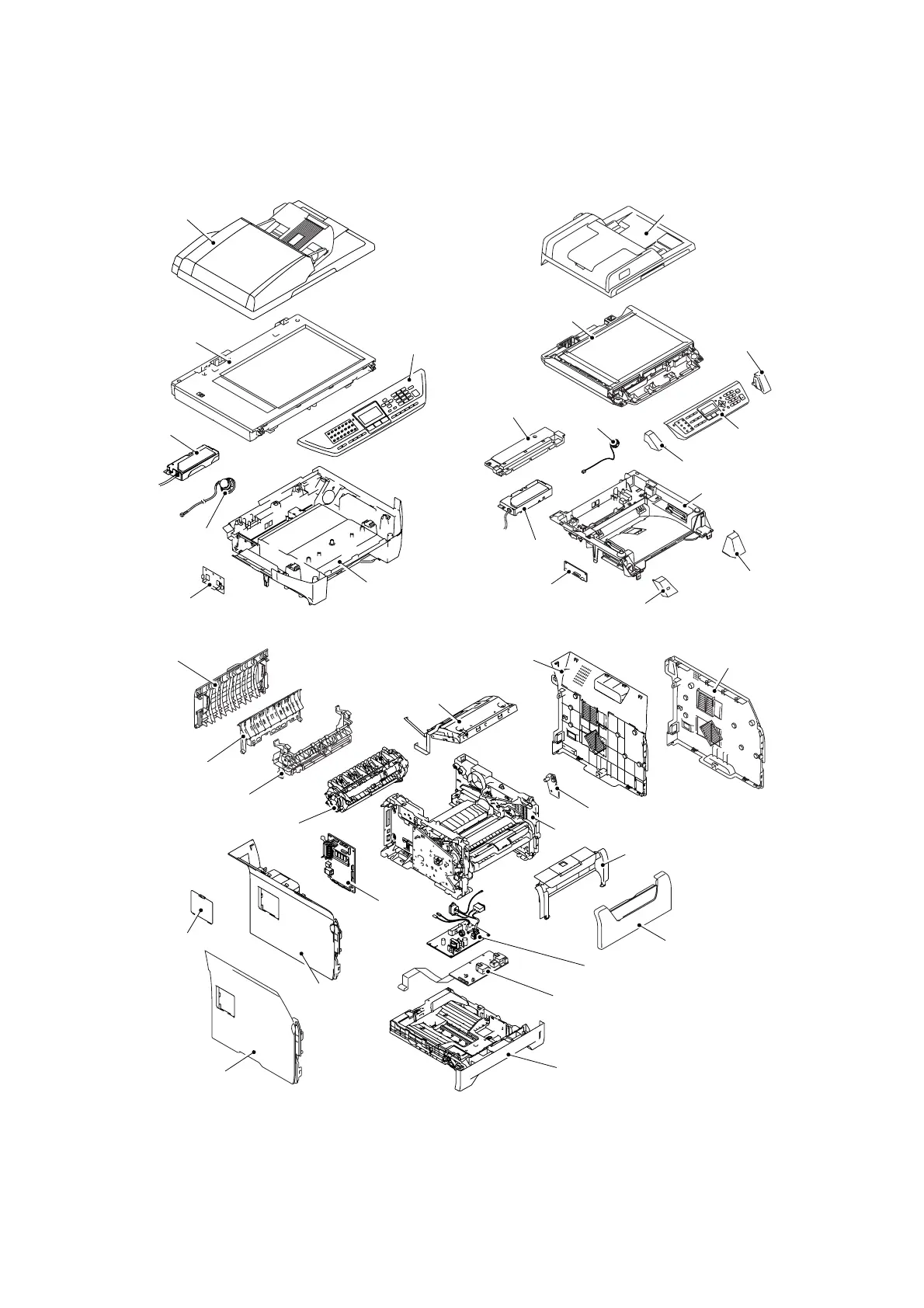

Fig. 3-1

Driver PCB

Joint Cover ASSY

Joint Cover FR

Joint Cover FL

NCU PCB

NCU Cover

Scanner Unit

Scanner Dress Cover L

Scanner

Dress Cover R

ADF Unit

< CIS model >< CCD model >

Panel Unit

Speaker ASSY

Back Cover

Outer Chute ASSY

Rear Chute ASSY

Fuser Unit

Main PCB

Access Cover

Side Cover L

(CCD model)

Side Cover L

(CIS model)

Side Cover R

(CCD model)

Side Cover R

(CIS model)

Laser Unit

Toner LED PCB Unit ASSY

Paper Tray

High-voltage PS PCB

LVPS PCB

MP Tray Cover ASSY

Process Cover ASSY

Frame Unit
