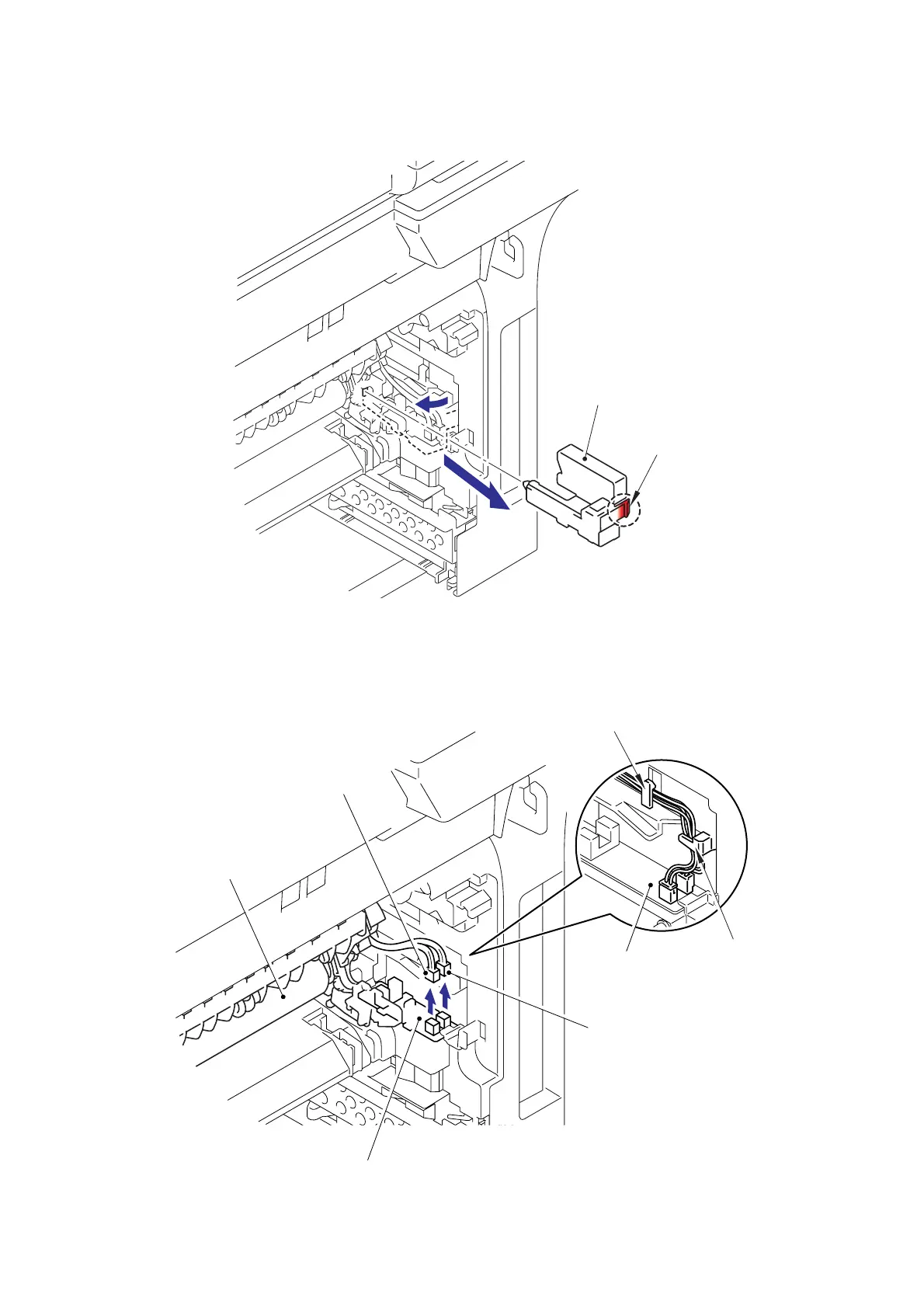

(3) Pull the FU harness cover 2 to the direction of 3a while pressing the hook and pull out
the FU harness cover 2 at the back.
Fig. 5-22
(4) Disconnect the connectors of the Thermistor ASSY M and Thermistor ASSY S from the
Relay rear PCB ASSY, and remove the harnesses of these thermistors.
Fig. 5-23
Hook
FU harness cover 2
3a
3b
3a
3b
Thermistor ASSY S
Thermistor ASSY M
Fuser unit
Hook
Hook
Relay rear PCB ASSY
Relay rear PCB ASSY
