5-62
Confidential

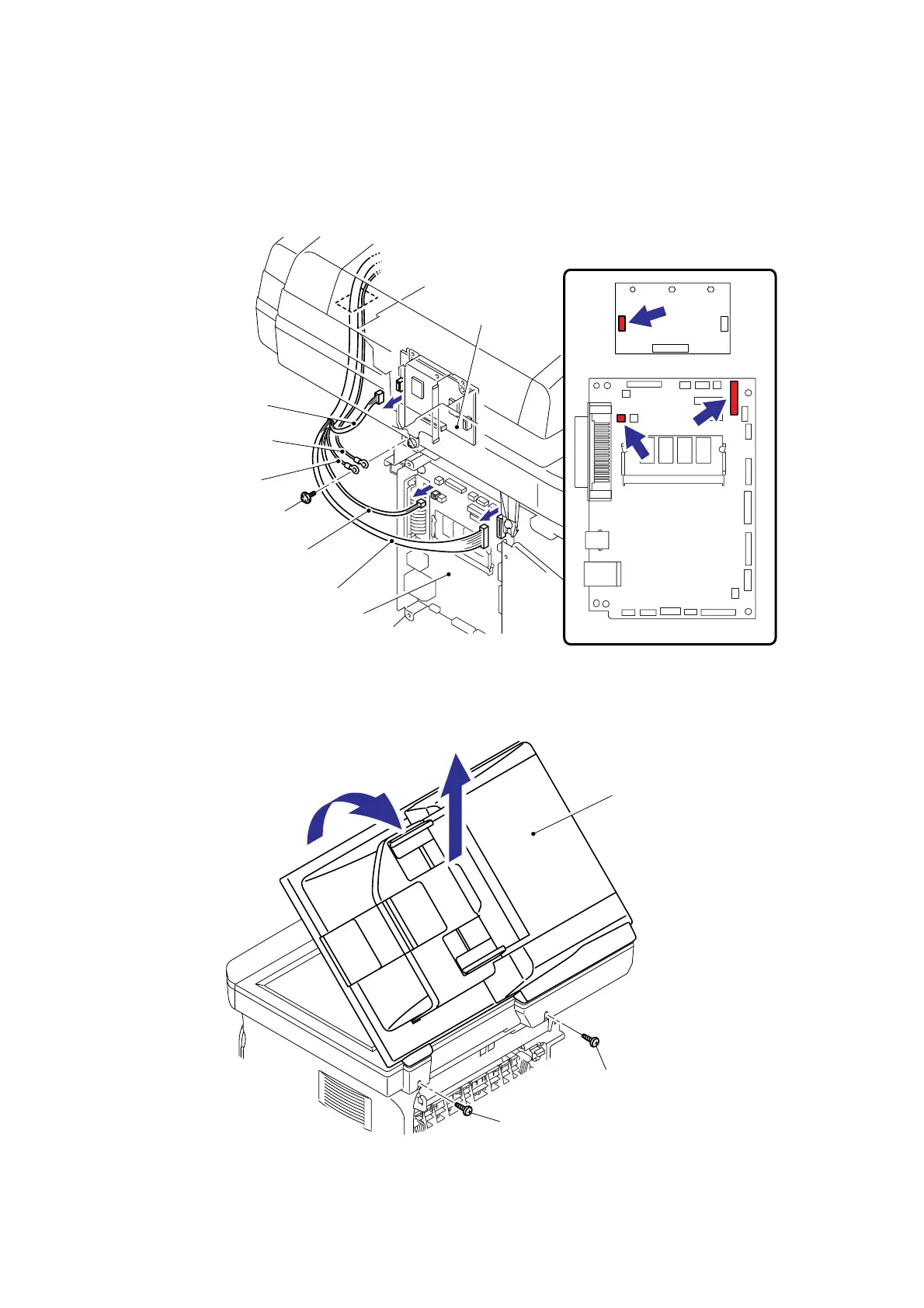

(2) Remove the cup S M3x6 Taptite screw, remove the ADF FG harness and FB FG
harness.
(3) Disconnect the Connector from the Driver PCB.
(4) Disconnect the two Connectors from the Main PCB.
Fig. 5-38
(5) Remove the two bind B M4x12 Taptite screws, and then remove the Document cover.
Fig. 5-39
Driver PCB
Driver PCB
Main PCB
Main PCB
<Left side>
Connector
(ADF motor harness)
Connectors
(ADF relay harness)
Connector
(Document cover sensor)
FB FG harness
Taptite cup S M3x6
ADF FG harness
Document cover
Taptite, bind B M4x12
<Back side>
Taptite, bind B M4x12
5a
5b

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
