5-146
Confidential

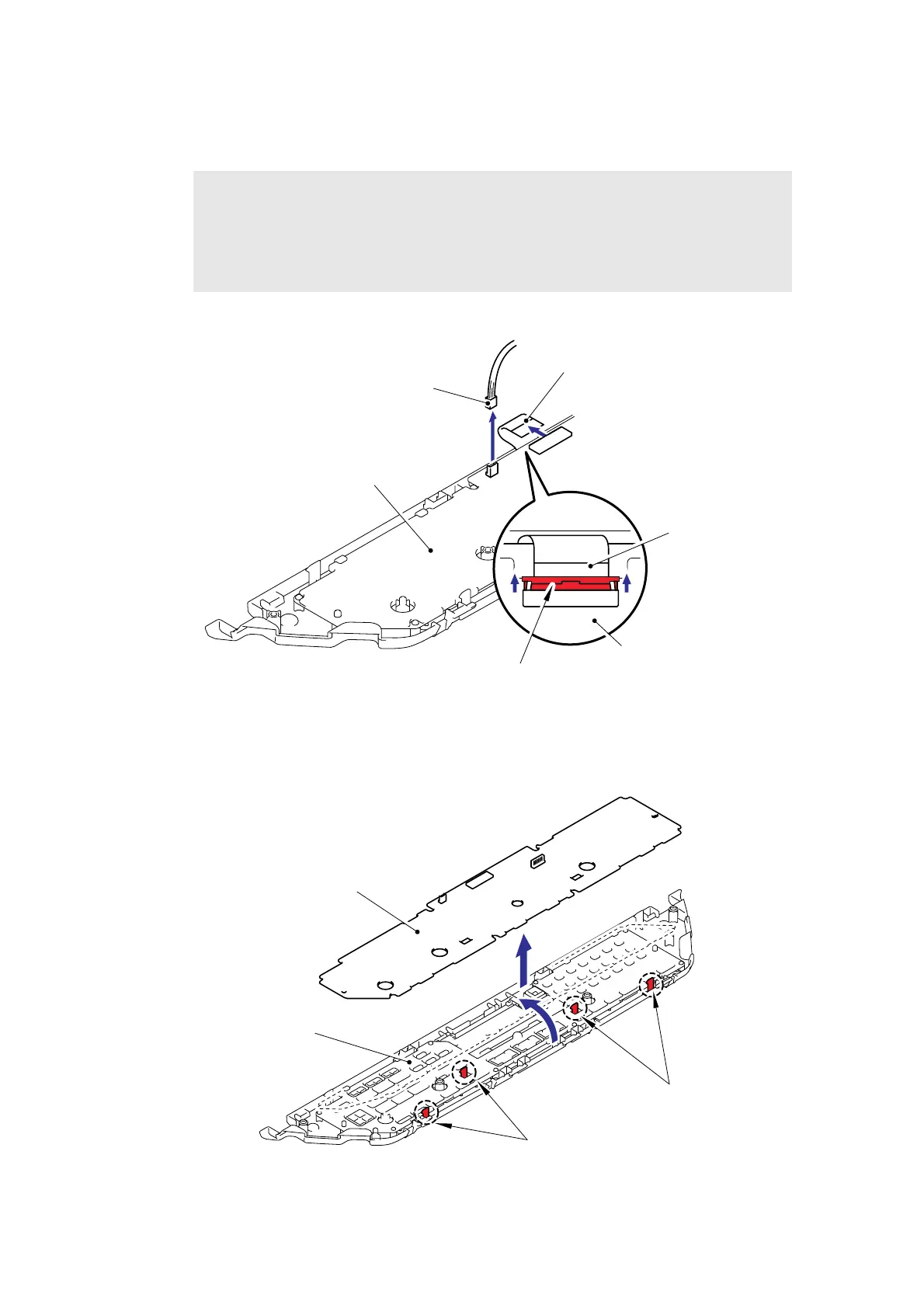

(3) Disconnect the connector of the Backlight module harness from the Panel PCB ASSY.
(4) Unlock the lock, and remove the LCD cable from the Panel PCB ASSY.
Fig. 5-168
(5) Release the four Hooks, lift up the Panel PCB ASSY to the direction of the arrow 5a and
remove the Panel PCB ASSY.
Fig. 5-169
Note:
• After disconnecting flat cable(s), check that each cable is not damaged at its end or
short-circuited.
• When connecting flat cable(s), do not insert them at an angle. After insertion, check
that the cables are not at an angle.
Backlight module harness
Panel PCB ASSY
Panel PCB ASSY
Lock
LCD cable
LCD cable
Panel PCB ASSY
Panel unit ASSY
Hooks
5b
Hooks
4a
5a
