(2) Remove the cup S M3x6 SR Taptite screw and two cup B M3x8 Taptite screws.
(3) Remove the Driver PCB shield and Driver PCB from the Joint cover ASSY.
(4) Disconnect the connector of the Driver harness from the Driver PCB.

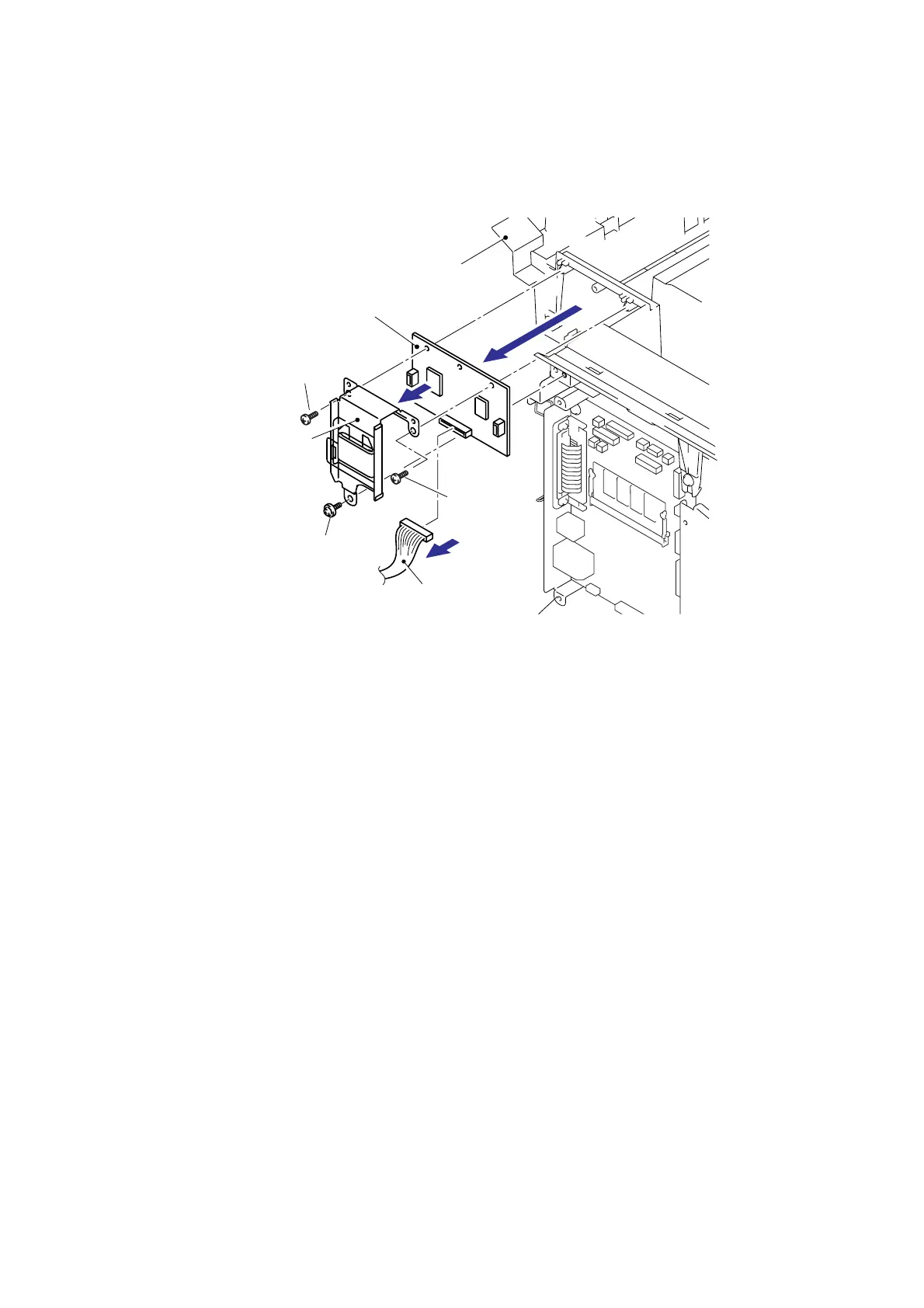

Fig. 5-193
Joint cover ASSY
Driver PCB
Driver PCB shield
Taptite cup B M3x8
Taptite cup S M3x6 SR
Taptite cup B
M3x8
Driver harness
