(2) Disconnect the connector of the USB HOST harness ASSY from the USB HOST PCB
ASSY.
(3) Remove the bind B M4x12 Taptite screw, and remove the USB HOST FG harness.
(4) Remove the bind B M4x12 Taptite screw, and remove the USB PCB holder from the
Joint cover ASSY.

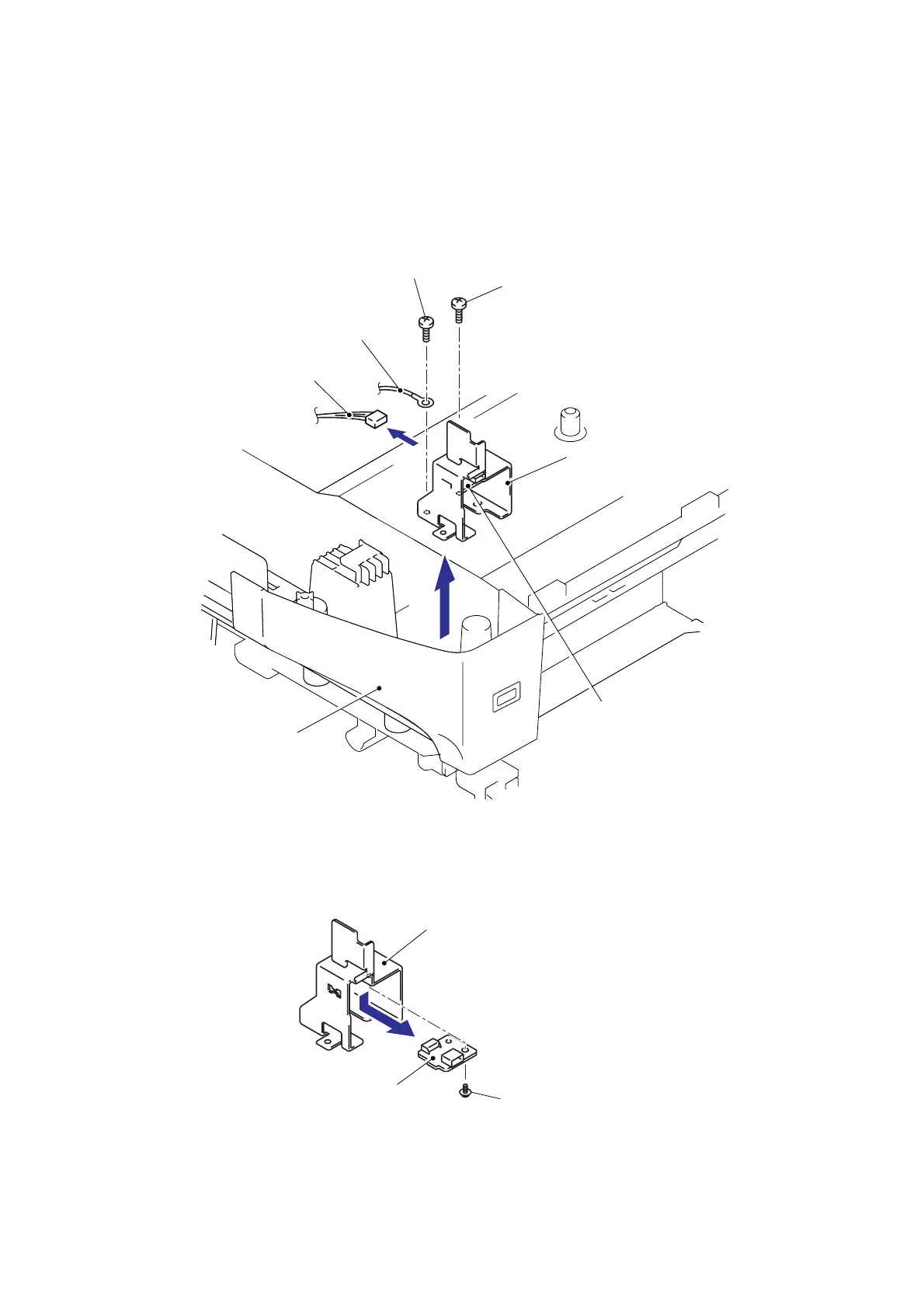

Fig. 5-197
(5) Remove the cup S M3x6 SR Taptite screw, and remove the USB HOST PCB ASSY
from the USB PCB holder.
Fig. 5-198
Joint cover ASSY
USB HOST FG harness
USB HOST harness ASSY
USB PCB holder
USB HOST PCB ASSY
Taptite bind B M4x12
Taptite bind B M4x12
USB HOST PCB ASSY
USB PCB holder
Taptite cup S M3x6 SR
